WAVLINK Outdoor Wireless Solutions WAVLINKOutdoor Wireless Solutions
Quick Comparison – Outdoor Wireless SolutionsTable 1 – Core SpecificationsModelWi‑Fi StandardMax (1200Mbps)Wi‑Fi 5 (AC1200)1200 Mbps (867+300)2×7dBi omni1× 100Mbps WAN/LANIP67, 15kV ESD, 6kV lightningActive + Passive~200 mWL‑WN572HP3 (1200Mbps‑4)Wi‑Fi 5 (AC1200)1200 Mbps (867+300)4×7dBi omni (detachable)Dual Gigabit (WAN+LAN)IP65, 15kV ESD, 4kV lightningPassive~200 mWL‑WN570HA1 (600Mbps)Wi‑Fi 5 (AC600)600 Mbps (433+150)2×7dBi omni1× 100Mbps WAN/LANIP65, 15kV ESD, 4kV lightningPassive~150 mWL‑WN570HN2‑B (300Mbps)Wi‑Fi 4 (N300)300 Mbps (2.4GHz only)2×7dBi omni1× 100Mbps WAN/LANIP67, 15kV ESD, 6kV lightningActive + Passive~100 m
Note: All models support AP, Router, and Repeater modes (varies by model). Speeds are theoretical; actual performance depends on environment.
Table 2 – Key Features & Best Use CasesModelKey FeaturesSupported ModesMesh SupportBest ForWL‑WN570HA2Compact, active+passive PoE, 4 working modes, FIT APAP, Router, Repeater, AP+Repeater— (FIT AP with AC)Small yards, parking lots, poolsWL‑WN572HP3Dual Gigabit, 800mW PA, MT7621A, Mesh ExtenderRepeater, AP, Mesh Extender✔ Mesh ExtenderFactories, communities, large outdoor spacesWL‑WN570HA1600mW PA, dual‑band, IP65, WISP/CPE readyRepeater, Router, AP—Farms, camping, video N300, IP67, low power consumptionAP, Router, Repeater, AP+Repeater—Basic outdoor extension, small gardens
Note: PoE converters are not waterproof – install indoors. Active PoE support varies by model.
Buying Guide – Which Outdoor Solution Fits Your Needs? 📡 For Long‑Distance Point‑to‑Point Links → CPE Kit (300Mbps directional)
Equipped with 11dBi directional antennas and 1.5 km transmission capability, this kit is ideal for bridging networks across farms, warehouses, or remote buildings. Supports PtP and PtMP configurations for surveillance and network extension. 🏭 For Heavy‑Duty High Power & Dual Gigabit → WL‑WN572HP3 (1200Mbps‑4)
With 800mW PA, dual Gigabit ports, and Mesh Extender mode, this model excels in factories, communities, and large outdoor spaces. The 4 detachable antennas and reinforced waterproofing make it a reliable workhorse for demanding environments. 🌿 For Budget‑Friendly Basic Coverage → WL‑WN570HA1 & WL‑WN570HA2
Choose WL‑WN570HA1 for an economical AC600 dual‑band solution with IP65, or WL‑WN570HA2 for AC1200 with IP67 and active PoE support. Both are excellent for small yards, parking lots, and temporary outdoor deployments. 🔌 For Simple Single‑Band Extension → WL‑WN570HN2‑B (300Mbps)
If you only need 2.4GHz coverage for basic internet access in a small garden or shed, this N300 model is the most economical choice. IP67 rated and supports flexible operating modes. ✅ All Models Share:
- Weatherproof design (IP65 or IP67) for outdoor durability
- ESD and lightning protection for reliability
- PoE support for flexible installation without nearby power
- Multiple operating modes (AP, Router, Repeater)
- Simple setup with included mounting kit and quick start guide
1200Mbps-up to 150m
WAVLINK AC1200 Dual Band Outdoor Access Point, Outdoor Long Range Wi-Fi Extender with Active/Passive PoE, WAN/LAN Port, IP67 Waterproof, Supports AP/Router/Repeater Modes, 2x7dBi High-Gain Antennas
Features:
*AC1200 Dual-Band Range Extender: With Wi-Fi 5 technology at its core, the WAVLINK outdoor AP keeps you connected in stride with speeds reaching up to 1200Mbps. Ideal for smooth HD streaming, online gaming, and bandwidth-heavy activities. Whether you're in the yard, by the pool, or in a parking lot, relish dependable Wi-Fi 5 connectivity wherever you are.
*Power Over Ethernet: Integrated Power over Ethernet (PoE) enables power and network data connections to be consolidated into a single RJ-45 cable, allowing installation in areas without power outlets. It is equipped with passive PoE and also supports active PoE. You can use and connect your own active switch.
*IP67 Rated Weatherproof Case: The IP67-rated weatherproof and heat-resistant enclosure ensures continued operation in harsh outdoor environments, including extremely cold, hot or constantly humid climates. It can withstand a wide range of humidity and temperature (-10°C to 50°C or -14°F to 122°F), and has 15KV ESD and 6KV lightning protection.
*Multiple Working Modes: It supports four working modes. The repeater mode extends the Wi-Fi coverage of an existing wireless network. Router mode creates an instant private wireless network, enabling multiple devices to share it. AP mode converts a wired network to a wireless one. AP+Repeater mode extends the range of a wireless network by using a repeater to amplify and relay the signal from an access point.
*Outdoor Access Point: Providing ultra-fast networking speed of 300Mbps over 2.4G band and 867Mbps over 5G band, the outdoor Wi-Fi repeater has a maximum coverage range of 200 meters, supports up to 32 devices. Simple settings enable wireless optimization to improve the quality and effectiveness of link transmission. (Coverage may vary based on the actual environment.)
Applicable to Kinds of Weather
IP67-rated weatherproof and heat-resistant housing ensures continued operation in harsh outdoor environments. For example, it is sunny and exposed to the sun; it rains and is wet; it snows and freezes; and there is thunder and lightning.
Applicable to Multiple Scenarios
It is suitable for various large-scale outdoor scenes, whether it is your own yard, outdoor swimming pool, school, park, playground, or outdoor parking lot.
Waterproof Case Design
The waterproof housing has an IP67 rating for impressive dust and water resistance, allowing it to operate reliably even when exposed to harsh outdoor conditions or temporary rain.
7dBi Omni Directional Antenna
The high-gain antenna panel has two built-in 7dBi omni directional antennas, which are designed to strengthen the WiFi signal in one direction and make it more concentrated. And WiFi coverage in a specific direction is farther than omnidirectional antennas.
Warm Tips
1.The PoE converter is not waterproof, please install it indoors.
2.Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3.Please install the product 2-3 meters above the ground for better performance.
Specification
1.Model: WL-WN570HA2
2.Ports: 1 x WAN/LAN 100Mbps
3.Button: 1 x Reset(8s); Status LED: 1 x Power, 1xWAN/LAN, 1 x WiFi , 3 x Signal
4.Power Supply: DC 54V/0.3A Power over Ethernet(Passive), DC 48V Power over Ethernet(Active)
5.Wireless Standard: IEEE 802.11 a/b/g/n/ac
6.Frequency Band/Speed: 2.4GHz(300Mbps), 5GHz(867Mbps)
7.Antenna: 2 x 7dBi Omni Directional Antennas
8.Wireless Security: WPA-PSK/WPA2-PSK encryption
9.Unit Size(without antennas): 18cm x 5cm x 5cm/ 7.1in x 2in x 2in (L x W x H ); Antenna Length: 25cm/9.8in
10.Ethernet Cable Length: 100cm/39.4in
11.Power Adapter Cable Length: 120cm/47in
12.Operating Temperature: />13.Storage Temperature: />14.Distance:Outdoor 200m(Change with the Actual Environment)
In the Box
1x AC1200 Dual Band Access Point
2x 7dBi High-gain Antennas
1x RJ-45 Ethernet Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide
1200Mbps--up to 200m
WAVLINK AC1200 High Power Outdoor Weatherproof WiFi Range Extender/Wireless Access Point/mesh agent with Passive POE, Dual Band 2.4GHz 300Mbps+5.8 GHz 867Mbps, 4x7dBi Detachable Omni Directional Antennas, Mesh Technology Supported, No WiFi Dead Zones for Working from Home
Features:
[AC 1200 Dual-Band & Upgraded Chip & Easy Mesh Technology Supported]: The next generation of Wi-Fi, complies with IEEE 802 11 ac/a/b/g/n standards. Dual-Band maximum speed up to 5GHz 867Mbps and 2.4GHz 300Mbps, an upgraded version of AC1200(1200Mbps); With a brand-new chip MT7621A and Easy Mesh supported, it lets you keep more devices(64~96) connected simultaneously with the dual bands and enables Wavlink mesh router/AP/repeater to work together, which is superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
[Multiple Operation Modes & Power Over Ethernet & Dual Gigabit Ethernet Ports]: WL-WN572HP3 supports Mesh Extender Mode, Access Point (AP) Mode, and Repeater Mode. Integrated Power over Ethernet (PoE) supported, allowing it to be installed in areas where power outlet is not available by combing your power and network data connection into a single RJ-45 cable; Dual Gigabit (1000Mbps) LAN/WAN Ethernet Ports---support 10/100/1000Mbps speeds, 10x faster than a standard Ethernet port, giving you an excellent network speed experience.
[Design for Harsh Outdoor Environment & Strengthening Waterproof Version]: IP65-rated weatherproof & heat-resistant case that ensures continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture, withstanding broad ranges of humidity and temperature (-30°C~70°C) (-22°F~158°F); 15KV ESD, 4KV lightning protection, ensure stable connection in harsh outdoor conditions. The key parts have been coated with waterproof glue to strictly avoid leakage phenomenon of the product. Note: The PoE part of the router is not waterproof.
[4 x 7dBi Detachable Omni Directional Antennas & Outstanding Function]: Higher antenna gain extensively strengthens Wi-Fi signal and expands wider coverage in the open air, stability technology automatically avoids channel conflicts using its channel selection feature, meet outdoor long range coverage wireless network requirement, cover hard-to-reach dead zones. High Power Amplifiers PA 800mW and enhanced receiver design for more strong penetration & longer range coverage than the general access point, ideal for providing Wi-Fi service in big area such as factory, community, street or etc.
[What You Get]: All Wavlink products come with a high-quality after-sale service. Please feel free to contact us anytime if you have any question, we will do our best to help you. In the Box: AC 1200 Dual Band Outdoor Ap/Range Extender, 2x 2.4 G Omni Antennas, 2x 5G Omni Antennas, 1x RJ 45 Networking Cable, 1x Power Adapter, 1x PoE Converter, 1x Main Body Holder, 2x Cable Ties, 1x Screw Fitting Kit, 1x Quick Start Guide. 12-month worry free warranty( extra 6 months for registered members) and life-long technical support.
Dual Bands WiFi Repeater
With combined wireless speeds of up to 2.4GHz 300Mbps or 5GHz 867Mbps, simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth-intensive tasks like online gaming or HD video streaming can be processed by the 5GHz.
Multiple Operation Modes
Mesh Extender Mode: Co-create a larger wireless network coverage with Wavlink mesh supported routers and share signal to multiple WiFi devices.
AP Mode: Convert a wired network to a wireless network, which allows you connect laptops, tablets, phones or other WiFi devices.
Repeater Mode: Extend WiFi coverage of an existing wireless network.
Withstand Harsh Climates
An IP65-rated weatherproof housing that ensures the 572HP3 continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Withstanding broad ranges of humidity and temperature (-30°C~70°C) (-22°F~158°F). Build in lightning arrester (15kV ESD), 4KV lightning protection.Note: The PoE part of the router is not waterproof.
Applicable for Large-coverage
Extend the network over long-distances (max 200 meters) with high gain 4x7dBi antennas that deliver a stable and fast network connectivity to large yards and patios. So, it can boost Wi-Fi coverage up to max A=πr^2(r=200m)= 125,600m^2(1350,000 sq.ft), which is over 135 times larger than others' only 10,000 sq.ft coverage!
Strengthening Waterproof Parts
In order to avoid the water leakage issue the latest version 572HP3 has specially improved the key parts, coated with waterproof glue, greatly strengthening the waterproof protection.
Installation note：
-Select the wireless network with a signal strength greater than 70% to get the most reliable connection.
-The outdoor antennas should be installed at a height of 2 meters above the roof or in a high open place for better reception.
Specification:
Frequency: 2.4GHz & 5GHz, speed up to 1,200 Mbps
Interfaces: 1x 10/100/1,000Mbps LAN; 1x 10/100/1,000Mbps WAN
Antennas: 4x 7dBi omni Antennas
Operation modes: Repeater, AP, Mesh Extender
Weatherproof case: 15KV ESD and 4KV Lightning Protection
Security: WPA2-PSK,WPA 2/ WPA 3 Mix
LEDs: 7x Status LED Indicators
Power adapter: 100~ 240V/50~60Hz; DC 24V (Passive PoE)
What's in the box:
1x AC 1200 Dual Band Outdoor Ap/Range Extender
2x 2.4 G Omni Antennas
2x 5G Omni Antennas
1x RJ 45 Networking Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide
600Mbps-up to 100m

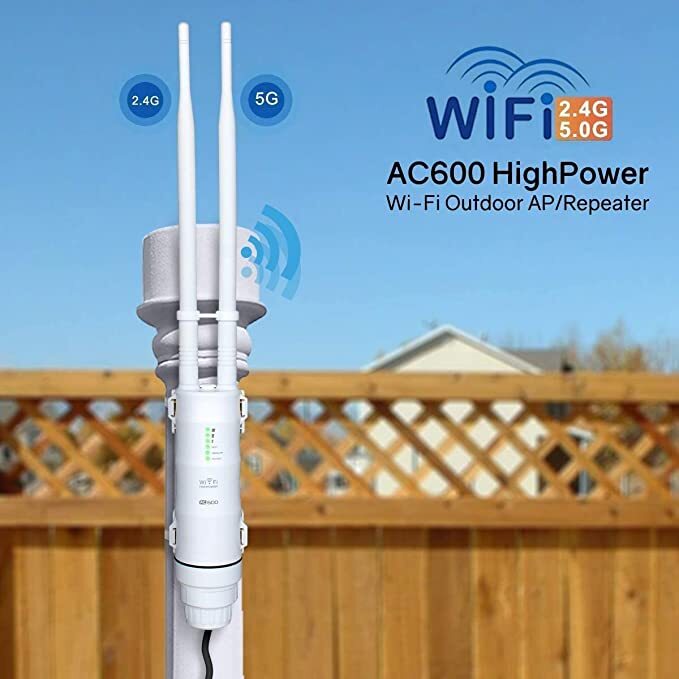

Wavlink AC600 7dBi High Power Outdoor Omni-directional Access Point/CPE/Repeater/WISP 2.4GHz 150Mbps + 5GHz 433Mbps, Passive PoE Model
Features:
♥Support POE Power Supply: By combing your power and data connection into a single cable, PoE simplifies the setup of the High power Outdoor WiFi Access Point/Bridge. Combining power and network access into a single RJ-45 connection for the WN570HA1 allow you to install the WN570HA1 in hard to reach location without worrying about running both power and Ethernet cables
♥Resilient Outdoor Performance: The 570HA1 outdoor wifi extender features an IP65 rated weatherproof enclosure designed to withstand extreme cold, heat and constant humidity in challenging outdoor environments. It can withstand a wide range of humidity and temperature variations from -30°C to 70°C (-22°F to 158°F). In addition, it is equipped with 15KV ESD and 4KV lightning protection to ensure a stable and secure connection even under the harshest outdoor conditions
♥Dual Band Outdoor WiFi Extender Long Range: This outdoor WiFi access point uses 802.11AC Wi-Fi technology and supports 100Mbps on the WAN port, improving existing wireless coverage with speeds of up to 433Mbps on the 5GHz band and 150Mbps on the 2.4GHz band. Note: All Wi-Fi extenders are designed to increase or improve Wi-Fi coverage, not to directly increase speed. In some cases improving signal reliability can affect overall throughput
♥Multiple Modes, Flexible Use: It supports wireless Repeater, Router, and Access Point (AP) mode. You can switch between these 3 modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks. Note: Select the wireless network with a signal strength greater than 70% to get the most reliable connection. The outdoor antenna should be installed at a height of 2 meters above the roof or in a high open place for better reception
♥Built-in High Power Amplifier: With up to 600mW of power and an enhanced receiver design that increases transmission power by 5X. Compared with ordinary outdoor extenders, it has stronger penetration and wider coverage, ideal for farms and camping in the wilderness
Wavlink Brings Technology to Life
WN570HA1 is designed to provide WISP, CPE solutions and long-range wireless network solution for video surveillance and transmission. With two omni-directional 7dBi dual-polarized antennas and strong transmit power of up to 1000mW, it provides a compelling performance solution for small and growing business at a very affordable price and also provides an efficient way to pick up and maintain a stable signal for a wireless network connection from long distance.
Withstand harsh climates
WN570HA1 has an IP65-rated weatherproof housing that ensures continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Note: The PoE part of the router is not waterproof.
Easy Installation With Power over Ethernet(PoE)
By combing your power and data connection into a single cable, PoE simplifies the setup of the High power Outdoor WiFi Access Point/Bridge. Combining power and network access into a single RJ-45 connection for the WN570HA1 allow you to install the WN570HA1 in hard to reach location without worrying about running both power and Ethernet cables.
How Does It Work?
1.Slide the straps through the slots on the back of the AP/Router and tighten the straps around the hole.
2.Connect one end of an LAN cable to the PoE port of the provided Power injector and the other end of the LAN cable to the LAN port of the AP/Router.
3.Use another LAN cable to connect the LAN port of the power supply.
4.Plug the power adapter into a wall socket.
Specifications:
1.Operating Temperature: -30°C~70°C(-22 ~158F)
2.Storage Temperature: -40°C~70°C(-40~158F)
3.Power Plug: US
4.Voltage: 100-240V
5.Support 2.4 GHz 5GHz
6.Standard:802.11 ac/a/b/g/n
7.Maximum WLAN security with WPA2,WPA and WEP(128/64)
8.Distance:Outdoor 150m(Change with the Actual Environment)
What’s in the package?
2 x WiFi AP/Router
4 x Antenna
2 x power Adapter
2x POE Converter
2 x RJ-45 Networking Cable
2 x Main body holder
2 x Screw fitting
4 x Cable ties
2 x Quick Installation Guide
Note:
Select the wireless network with a signal strength greater than 70% to get the most reliable connection.
The outdoor antenna should be installed at a height of 2 meters above the roof or in a high open place for better reception
300Mbps--up to 50m
WAVLINK N300 Wireless Outdoor Access Point with PoE Powered, WAN/LAN Port, Waterproof, Outdoor Wi-Fi Extender Long Range with AP/Router/Repeater Modes, 2x7 dBi Directional Antennas
*Power Over Ethernet: Integrated Power over Ethernet (PoE) enables power and network data connections to be consolidated into a single RJ-45 cable, allowing installation in areas without power outlets. It is equipped with passive PoE and also supports active PoE. You can use and connect your own active switch.
*IP67 Rated Weatherproof Case: The IP67-rated weatherproof and heat-resistant enclosure ensures continued operation in harsh outdoor environments, including extremely cold, hot or constantly humid climates. It can withstand a wide range of humidity and temperature (-10°C to 50°C or -14°F to 122°F), and has 15KV ESD and 6KV lightning protection.
*Multiple Working Modes: It supports four working modes. The repeater mode extends the Wi-Fi coverage of an existing wireless network. Router mode creates an instant private wireless network, enabling multiple devices to share it. AP mode converts a wired network to a wireless one. AP+Repeater mode extends the range of a wireless network by using a repeater to amplify and relay the signal from an access point.
*Outdoor Access Point: It has a maximum coverage range of 150 meters, supports up to 32 devices, and provides 2.4GHz, 300Mbps, high-speed, and 100M Ethernet ports. Simple settings enable wireless optimization to improve the quality and effectiveness of link transmission. (Coverage may vary based on the actual environment.)
*Single-Band Range Extender: Powered by 802.11n Wi-Fi technology, you can enhance your existing wireless coverage even in single-band range, providing speeds of up to 300Mbps on the 2.4GHz band. This allows you to enjoy high-speed downloading of your games, videos, and other files even in public areas.
Applicable to Kinds of Weather
IP67-rated weatherproof and heat-resistant housing ensures continued operation in harsh outdoor environments. For example, it is sunny and exposed to the sun; it rains and is wet; it snows and freezes; and there is thunder and lightning.
Applicable to Multiple Scenarios
It is suitable for various large-scale outdoor scenes, whether it is your own yard, outdoor swimming pool, school, park, playground, or outdoor parking lot.
Waterproof Case Design
The waterproof housing has an IP67 rating for impressive dust and water resistance, allowing it to operate reliably even when exposed to harsh outdoor conditions or temporary rain.
7dBi Omni Directional Antenna
The high-gain antenna panel has two built-in 7-dBi omni directional antennas, which are designed to strengthen the WiFi signal in one direction and make it more concentrated. And WiFi coverage in a specific direction is farther than omnidirectional antennas.
Warm Tips
1.The PoE converter is not waterproof, please install it indoors.
2.Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3.Please install the product 2-3 meters above the ground for better performance.
Specification
1.Model: WL-WN570HN2-B
2.Ports: 1 x WAN/LAN 100Mbps
3.Button: 1 x Reset(8s); Status LED: 1 x Power, 1xWAN/LAN, 1 x WiFi , 3 x Signal
4.Power Supply: DC 54V/0.3A Power over Ethernet(Passive), DC 48V Power over Ethernet(Active)
5.Wireless Standard: IEEE 802.11 b/g/n
6.Frequency Band/Speed: 2.4GHz(300Mbps)
7.Antenna: 2 x 7dBi Omni Directional Antennas
8.Wireless Security: WPA-PSK/WPA2-PSK encryption
9.Unit Size(without antennas): 18cm x 5cm x 5cm/ 7.1in x 2in x 2in (L x W x H ); Antenna Length: 25cm/9.8in
10.Ethernet Cable Length: 100cm/39.4in
11.Power Adapter Cable Length: 120cm/47in
12.Operating Temperature: />13.Storage Temperature: />14.Distance:Outdoor 100m(Change with the Actual Environment)
In the Box
1x N300 Outdoor Access Point
2x 7dBi High-gain Antennas
1x RJ-45 Ethernet Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide
