WAVLINK USB4 8K Docking Station, 20Gbps M.2 NVMe SSD Enclosure with Cooling Fan, 5-in-1 Dock with Triple 4K@120Hz Display, 40Gbps USB4 and 20Gbps USB-C Data Transfer, 100W Passthrough Charging

"[5-In-1 SSD Expansion Dock]
This WAVLINK dock combines 2×USB4 ports, 2×DisplayPort 2.1, a 20Gbps USB-C port, and an integrated M.2 PCIe NVMe SSD enclosure. The hybrid design delivers all-in-one functionality: single 8K@60Hz display, triple 4K@120Hz monitor support, blazing 40Gbps and 20Gbps data transfer speeds, and 100W pass-through charging. Everything you need in one powerful hub.

[SSD Enclosure for Instant Storage Upgrade]
Running low on laptop storage? Simply insert an M.2 PCIe NVMe SSD into the dock’s dedicated enclosure for instant, tool-free expansion. This enclosure delivers 20Gbps data transfer with 2004MB/s read speed and 1770.75MB/s write speed. It supports M-key SSD up to 8TB capacity, compatible with 2230/2242/2260/2280 sizes, turning space limits into limitless possibilities.

[8K@60 & 4K@120Hz Crystal-Clear Display]
Drive a breathtaking up to 8K@60Hz monitor or 3 x 4K@120Hz setup via the dual DisplayPort and dual USB4 video outputs for Windows. Whether editing video, live streaming, or immersive gaming, experience ultra-high resolution and fluid refresh rates like never before. For macOS, the docking station supports extending up to 2 x 4K@120Hz displays via one DP and one USB4 port. Note: If the Type-C port of the host does not support DP2.1 & DSC/USB4/Thunderbolt 4/5, the performance will be limited.

[40 Gbps USB4 + 20 Gbps USB-C]
With two USB4 ports offering 40 Gbps transfer speeds—8x faster than USB 3.0—this dock accelerates large file transfers, video captures, and external drive performance. An additional USB-C port supports 20 Gbps USB 3.2 Gen 2x2 and remains backward compatible with older USB standards.

[100W Passthrough Charging Keeps You Powered]
Includes a 130W power adapter to deliver up to 100W pass-through charging to your laptop. Recharge the DP2.1 DELL7440 laptop from 0% to 50% in about 30 minutes, ensuring uninterrupted productivity and eliminating battery anxiety during long work or play sessions.

[Universal Compatibility]
This docking station is plug and play, no driver needed, freeing you from the hassle of driver installation. Besides, it can connect to versatile host devices like Lenovo ThinkPad, iMac, and MacBook. For the compatible system, Windows, macOS, Linux can use it as a powerful workstation."

WAVLINK NEW GAME CHANGER HERE!!! The USB4 8K dock with M.2 PCIe NVMe SSD enclosure is going to shake traditional docking stations up. Unlike others, it comes with an M.2 PCIe NVMe SSD enclosure, featuring 20 Gbps data transfer with 2004MB/s read speed and 1770.75MB/s write speed, which makes the dock more comprehensive and powerful. What's more, it's also a 5-in-1 multifunctional docking station with 2 DisplayPort 2.1, 2 USB4 ports, and a 20 Gbps USB-C port. The combo of USB4 and DisplayPort enables a single display up to an incredible 8K@60Hz or a triple display up to 4K@120Hz, bringing an immersive visual feast during streaming, video clipping, and gaming. Equipped with USB4 ports, this docking station delivers 40 Gbps hyper-speed data transmission with the connection of an external hard drive. Furthermore, 100W pass-through charging makes your laptop always full of energy, ready for long-lasting workloads.

Cinematic Visual Enjoyment
Featuring 2 x USB4 ports and 2 x DisplayPorts, this docking station enables 8K@60Hz single display or 4K@120Hz triple display on Windows and macOS. Ultra-high-definition display output delivers lifelike image quality during gaming, video streaming, and editing.

Superspeed Data Transmission
With 2 x USB4, the dock can reach ultra-fast transmission speed up to 40 Gbps, which is 8 x faster than the USB 3.0 protocol. A USB-C port complies with the USB 3.2 Gen 2 x 2 standard; the speed can be up to 20 Gbps. Matching with external hard drives, NAS enclosures, and PCIe NVMe enclosures, users can fully use high bandwidth to achieve ultra-fast file, picture, film, and game transmission.

100W Passthrough Charging
Slash your charging time with the WAVLINK docking station's 100W passthrough charging. Charging from 0% to 50%, the charging time can be shortened down to 30 minutes for a DP2.1 DELL7440 laptop.

Integrated SSD Enclosure
With an M.2 NVMe PCIe slot built in, you can easily expand your storage space up to 8TB. Moreover, this enclosure delivers hyper-speed 20 Gbps data transfer, 2004MB/s read speed, and 1770.75MB/s write speed.

The built-in fan and heat dissipation holes can largely improve the heat dissipation effect to sustain stable operation of internal electronic components.

Taking advantage of the high-performance ASM2364 chip, this enclosure supports UASP & Trim and S.M.A.R.T., ensuring long-lasting healthy operation of the SSD.

WAVLINK SSD enclosure design always keeps simple and quick installation as a principle. Just press the top lid and loosen the screw, and then you can install the M.2 PCIe NVMe SSD quickly. No tool is needed for the whole procedure!

Considerate Details
For a better user experience, we thoughtfully designed a pressable top lid, solitary power button, LED indicators, and lock.

Display Resolution

For Windows
(1) Single Display (AA/AB)
DP/USB4: 8K@60Hz (DP2.1 & DSC/USB4/Thunderbolt 4/5)
DP/USB4: 4K@144Hz (DP1.4 & DSC/USB4/Thunderbolt4/5)
DP/USB4: 4K@144Hz(DP1.4 & DSC/USB-C)

(2) Dual Display (AAA/ABB/ABC)
Dual DP/Dual USB4/USB4+DP(AAA/ABB/ABC): 2 x 4K@160Hz (DP2.1 & DSC/USB4/Thunderbolt 4/5)
Dual DP/Dual USB4/USB4+DP(AAA/ABB/ABC): 4K@120Hz + 4K@60Hz (DP1.4 & DSC/USB4/Thunderbolt4/5)
Dual DP(AAA/ABB):2 x 4K@60Hz(DP1.4 & DSC/USB-C)

(3) Triple Display (AAAA/ABCD/ABBB/ABBC)
DP+DP+USB4: 3 x 4K@120Hz (DP2.1 & DSC/USB4/Thunderbolt 4/5)
DP+DP+USB4: 2 x 4K@60Hz +2K@60Hz (DP1.4 & DSC/USB4/Thunderbolt4/5)

For macOS
(1) Single Display (AA/AB)
DP/USB4: 8K@60Hz (DP2.1 & DSC/USB4/Thunderbolt 4/5)
DP/USB4: 4K@120Hz (DP1.4 & DSC/USB4/Thunderbolt4/5)
DP/USB4: 4K@120Hz (DP1.4 & DSC/USB-C)

(2) Dual Display (AAA/ABB/ABC)
Dual DP (Mirror)(AAA/ABB): 2 x 4K@120Hz (DP2.1 & DSC/USB4/Thunderbolt 4/5)
Dual USB4/DP+USB4 (Extend)(ABC): 2 x 4K@120Hz (DP2.1 & DSC/USB4/Thunderbolt 4/5)
Dual DP (Mirror)(AAA/ABB): 2 x 4K@120Hz (DP1.4 & DSC/USB4/Thunderbolt4/5)
Dual USB4/DP+USB4 (Extend)(ABC): 4K@120Hz + 4K@60Hz (DP1.4 & DSC/USB4/Thunderbolt4/5)
Dual DP (Mirror)（AAA/ABB）: 2 x 4K@120Hz (DP1.4 & DSC/USB-C)

(3) Triple Display (AAAA/ABBB/ABBC)
DP+DP+USB4 (Mirror + Extend): 3 x 4K@120Hz (DP2.1 & DSC/USB4/Thunderbolt 4/5)
DP+DP+USB4 (Mirror + Extend): 4K@120Hz + 2 x 4K@60Hz (DP1.4 & />- Compatible with USB4, TBT3, USB3.2 Gen2*2, and DP2.1 Alt mode.
- 2 x DP support DP2.1, max. resolution 7680×4320@60Hz.
- 2 x USB4 supports 40 Gbps data transmission and DP2.1, max. resolution 7680×4320@60Hz.
- Supports triple display, max. resolution 4K@120Hz*3.
- Supports up to 2 different external monitors when a Mac connects to the product.
- 1 x USB3.2 Gen2*2 supports 20Gbps data transmission.
- 1 x M.2 interface connects an external SSD for 20 Gbps data transmission.
- 1 x USB-C upstream port provides 100W charging for the host.
- Size: 6.5*3.0*0.4 in/16.6*7.7*3.6 cm
- Weight: 9.2 oz / 259 g

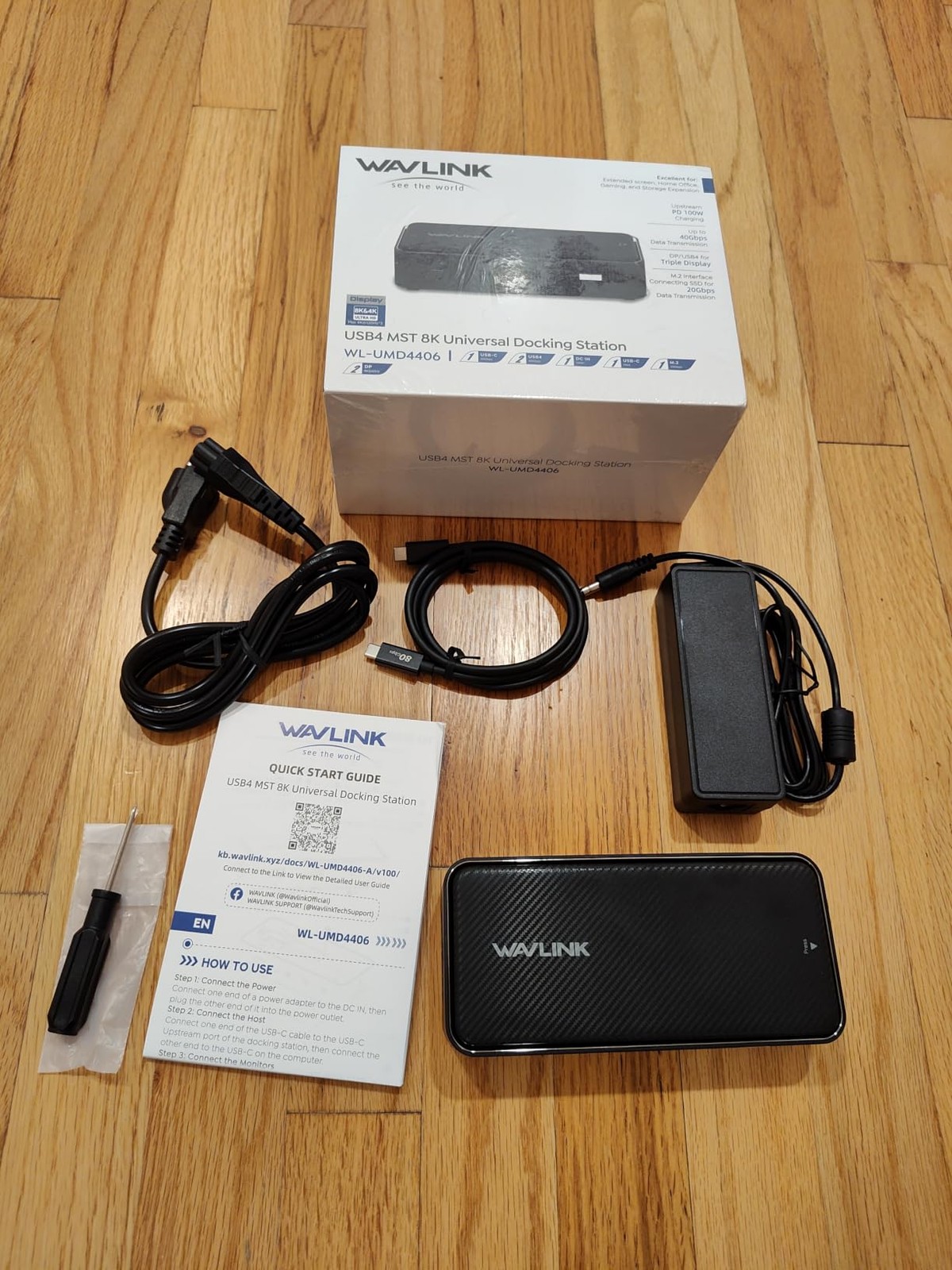

In the Box
- 1 x USB4 MST 8K Universal Docking Station
- 1 x DC 20V Power Adapter
- 1 x USB4 80Gbps USB C to C Cable (100 CM)
- 1 x Screwdriver
- 1 x Quick Start Guide

System Requirements
- Microsoft Windows 7 / 8 / 10 / 11
- Apple macOS 10.15 or later (can extend 2 different displays)
