Fiberglass Tube High Gain Antennas
4 x 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.

IP67 Waterproof Enclosure
Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.

PoE Power Supply
Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.

574Mbps on 2.4G & 1201Mbps on 5G
Dual band AX1800 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.

High Power Amplifiers
Dual integrated signal boosters efficiently strengthen the wireless performance. The PA(power amplifier) increases the power output while the LNA(low-noise amplifier) minimizes additional noises and increases the wireless signal.

Advanced WiFi Safeguard
WPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.

Specification
- Model: WL-WN573HX1
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(574Mbps)+5GHz(1201Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green

Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.

In the Box
1 x Wi-Fi6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE:
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable

AX3000-about 300 Meters extender

WAVLINK WiFi6 Outdoor Access Point, Dual Band 2.4G+5G AX3000 Long Range Outdoor WiFi Mesh Extender with PoE/4x8dBi High-gain Antennas/IP67 Weatherproof Enclosure/Signal Booster for Harsh Outdoor Conditions】Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube high-gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage, making it more suitable for outdoor use.

【⭐Enjoy True WiFi 6 Speed】The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.

【⭐Optional PoE Power Supply】Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.

【⭐Seamless WiFi Roaming】The 4x8dBi omnidirectional antennas and two built-in high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.

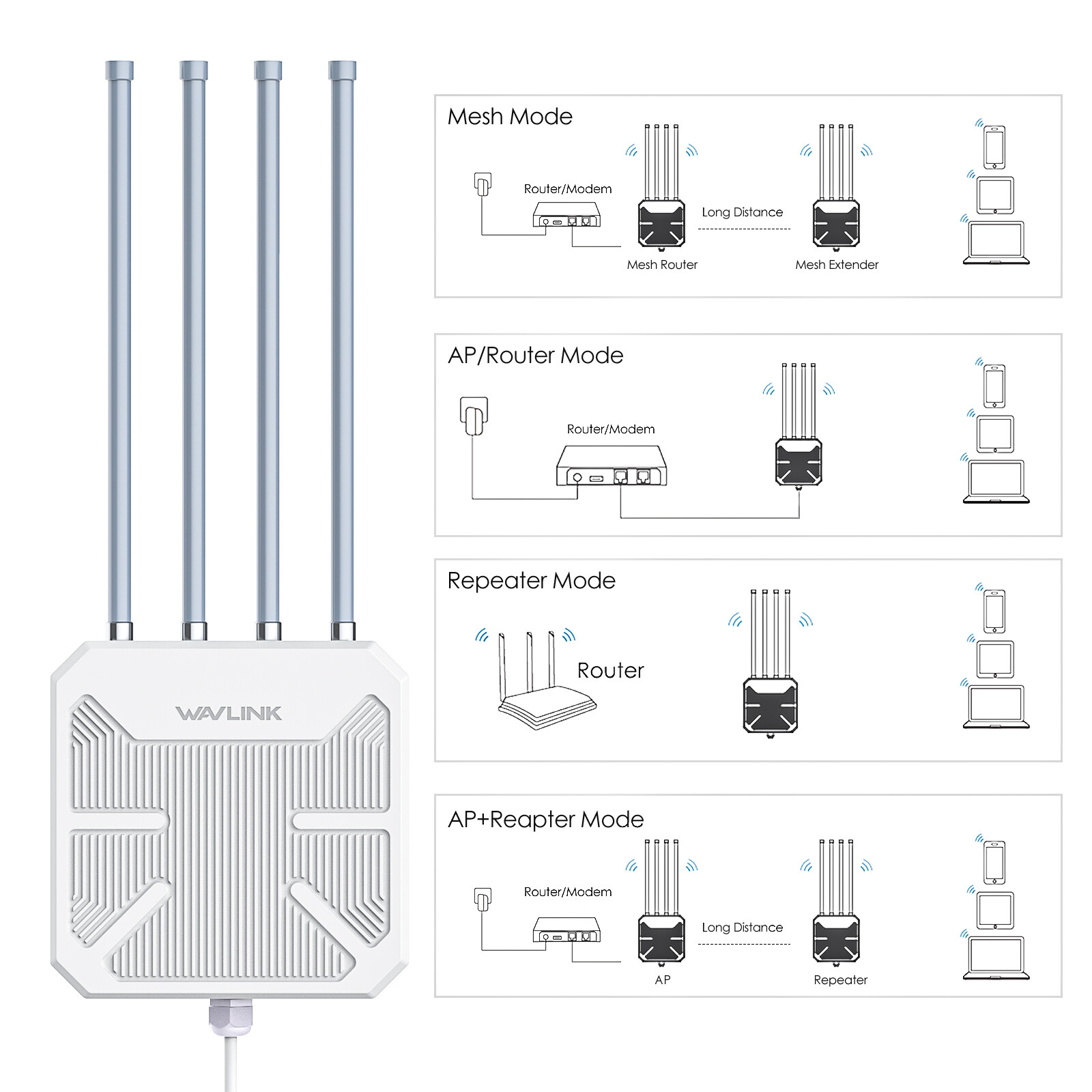

【⭐Multiple Modes, Flexible Use】Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.

Fiberglass Tube High Gain Antennas
4 x 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.

IP67 Waterproof Enclosure
Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.

PoE Power Supply
Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.

573Mbps on 2.4G & 2402Mbps on 5G
Dual band AX3000 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.

High Power Amplifiers
Dual integrated signal boosters efficiently strengthen the wireless performance. The PA(power amplifier) increases the power output while the LNA(low-noise amplifier) minimizes additional noises and increases the wireless signal.

Advanced WiFi Safeguard
WPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.

Specification
- Model: WL-WN573HX3
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green

Features
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
- Supports AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- 2x8dBi 5GHz and 2x8dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
- Glass tube antenna for high precision, corrosion resistance. long life, strong wind resistance.
- Seamless and stable WiFi Mesh makes you enioy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.

Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3(*Latest firmware required) and WN573HX3.

In the Box
1 x AX3000WiFi 6 Outdoor Access Point
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE:
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable

BE5100 WIFI 7-about 400 Meters extender

WAVLINK WiFi 7 Outdoor Long Range Router, Dual Band BE5100 Mesh Router, IP67 Waterproof & Dustproof, 15KV ESD & 4KV Lightning Protection, Active & Passive PoE Supported, 8dBi High-Gain Antennas

[Next-Gen Wi-Fi 7 Performance] Experience the future of wireless connectivity with Wi-Fi 7 dual-band technology, delivering blazing speeds of 688Mbps on 2.4GHz and 4323Mbps on 5GHz for a combined throughput up to 5100Mbps. Stream 4K videos without buffering, dominate competitive gaming with near-zero latency, and browse complex websites instantly.
[Strong Environmental Resilience] Engineered for extreme conditions, our IP67-rated waterproof and dustproof enclosure shrugs off torrential rains, dust storms, and debris. Built-in 15KV ESD protection and 4KV lightning surge defense safeguard critical components during electrical storms, ensuring rock-solid stability in coastal areas, industrial sites, or mountainous terrain.
[Flexible Enterprise & Rural Power Options] Deploy anywhere with dual PoE support: Active PoE (802.3at/af) enables plug-and-play installation in high-density environments like hospitals and campuses, while Passive PoE delivers cost-effective, long-range power for rural farms, orchards, and music festivals.
[Expansive Coverage with Intelligent Roaming] Four 8dBi high-gain fiberglass antennas create 360° signal coverage for outdoor areas, while the dedicated 5dBi antenna fills near-ground blind zones. Combined with WAVLINK Everything Mesh, one-click connection creates a unified mesh network.
[Five Adaptive Operation Modes] Transform this router to fit any scenario: router/AP mode converts wired networks to Wi-Fi hotspots; repeater extends weak signals; mesh router/extender creates seamless multi-node systems; and mesh AP integrates with existing infrastructure. Maintain a single network name (SSID) across all modes for effortless scaling.

WiFi 7 Performance
Comes with next-generation WiFi 7 dual-band technology; this router supports super-speed wireless speed up to 5100Mbps, including 4323Mbps on 5GHz and 688Mbps on 2.4GHz.

Weatherproof Design
IP67 waterproof and dustproof, 15KV ESD, and 4KV lightning protection are designed for extreme outdoor environments.

WPA3-SAE Encryption
WPA3-SAE can significantly reduce risks such as network eavesdropping, man-in-the-middle attacks, and data theft.

Active and Passive PoE
Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.

Fiberglass Tube High Gain Antennas
4 x 8 dBi omnidirectional antennas are covered by strong fiberglass tubes, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.

Feature
Frequency: dual-band 2.4GHz@688Mbps+5GHz@4323Mbps, speed up to 5100Mbps.
Ethernet port: 1x2.5G WAN/LAN.
Antennas: 4x8dBi + 1x5dBi high-gain antennas.
Operation modes: mesh AP, AP, repeater, mesh router, and mesh extender.
Security: WPA3-SAE/WPA2-PSK, WPA2-PSK, WPA PSK/WPA2PSK-MIX.
Power adapter: 100-240V/50-60Hz; DC 54V (Passive PoE); DC 48V (Active PoE).
IP 67 waterproof, 15KV ESD, and 4KV lightning protection.
Complies with IEEE 802.11 be/ax/ac/a/n/g/b standards.
Supports 802.3 AT/AF PoE and Passive PoE to supply power.

Warm Tips
① The PoE converter is not waterproof; please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100 m/328 ft.
③ Please install the product 2–3 meters above the ground for better performance.
④ Under the mesh mode, WN573HBE2 supports interconnection with WN586X3, WN572HP3 (*Latest firmware required), and WN573HBE2.

Packing List
-1 x BE5100 WiFi7 Outdoor AP
-1 x 54V Power Adapter
-1 x PoE Converter
-1 x Ethernet Cable
-1 x Main Body Holder
-4 x Omni Antennas
-2 x Stainless Steel Hose Clamps
-2 x Silicone Pads
-1 x Slotted Screwdriver
-1 x Wrench
-1 x Quick Start Guide
-Several Screws
