Blazing-Fast Wi-Fi 5 Speeds - Dual Band AC1200 offers faster data transfer speeds with 2.4GHz@300Mbps and 5GHZ@867Mbps
Compliant with IEEE 802.11ac/a/n/g/b standards. Enhanced with MU-MIMO, Beamforming, reducing interference for stable,
wider coverage, and increased device connectivity.

Expand Coverage Area - Equipped with 4 x 7dBi Omni detachable antennas, it features up to 1000MW power and
built-in high-power amplifier PA+LNA. Capable of receiving existing 2.4GHz and 5GHz wireless signals,
extending the range of the router or access point up to 300 meters.

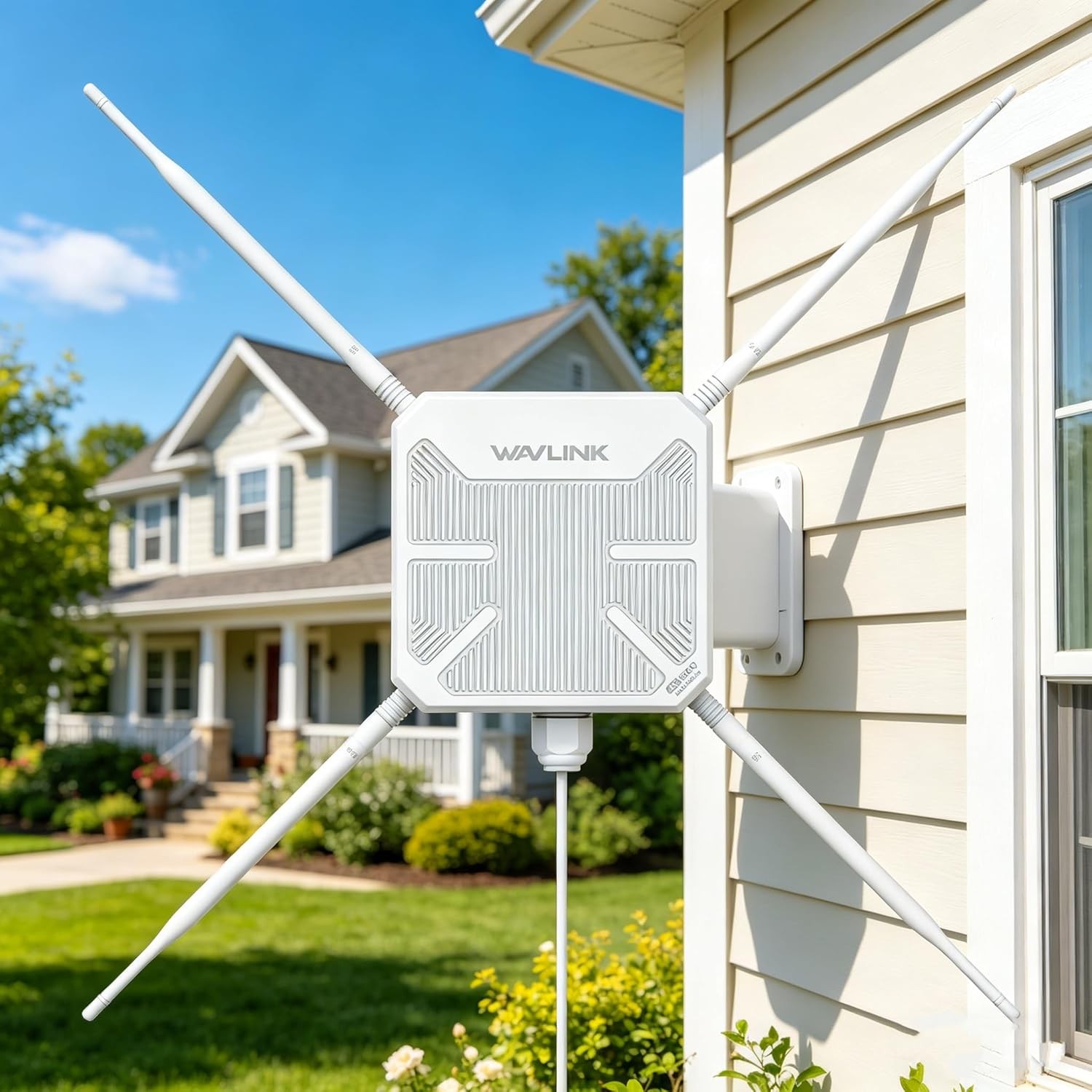

Built Tough for Outdoor Survival- Indoor/Outdoor use, supports wall/pole mount; robust IP67 weatherproof casing with
grounding terminal; offers 15KV ESD protection, 6KV lightning protection; withstands -20ºC to 50ºC temperature range,
ensuring stable operation in various weather conditions.

One Device, 4 Easy Modes- AP/Repeater/Router mode: Connects to most wireless signals, including Starlink.
Mesh mode allows seamless home roaming with a single SSID/password setup, pairs easily with one touch.
Also compatible with Wavlink AC controller for unified management in large networks.

No Outlet? No Problem!- Supports 802.3AT/AR Active PoE and Passive PoE for flexible deployment by integrating power and
network data over a single cable, simplifying outdoor Wi-Fi access point setup, making it convenient to install devices
in locations without power source.

Specification:
Model: WL-WN588HA2 (AERIAL HD8S)
Port: 1 x WAN/LAN Gigabit Port
Button: 1 x Pair/Reset Button
Product Size: 17.0x5.6x17.0cm/6.7x2.2x6.7in
PoE Converter Size: 3.7x2.2x4.3cm/1.5x0.9x1.7in
Ethernet Cable: 100cm/39.4in (CAT 5E)
Power Adapter Cable Length: 125cm/49.2in
Standard: IEEE 802.11ac/a/n/g/b
Frequency Band/Speed: 2.4GHz@300Mbps, 5GHz@867Mbps
Wireless Security: OPEN, WPA2-PSK, WPA/WPA2 MIX, WPA3-SAE/WPA2-PSK, WPA/WPA2-Enterprise
Antennas: 4 x 7dBi Omni Antennas (RP-SMA)
Status LED: Blue
PoE Converter Status LED: Green
PoE Converter Support: DC 54V/0.3A Power over Ethernet (Passive), DC 48V Power over Ethernet (Active)

In the Box：
1 x ACI200 Wi-Fi 5 Outdoor Access Point
4 x Plastic Cable Ties
1 x Main Body Holder
4 x 7dBi Antennas
1 x Wrench
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
1 x PWM M3x5x6MM Screw
6 x KA M3x20x5.2MM Screws
6 x Φ6.5x25MM Screw Plugs
1 x Quick Start Guide

Warm Tips:
1.When setting up a mesh network, please note that the WL-WN588HA2 supports a maximum of 8 devices
for networking (including the main router). It is only compatible with devices from the same brand "Wavlink" that
support Everything Mesh; other devices are not supported.
2.The access point cannot act as a repeater for wireless signals with enforced captive portal.
3.For optimal performance, choose open and unobstructed locations, avoiding obstacles like walls, doors, aquariums,
trees, and other barriers as much as possible.
4.All Wi-Fi extenders are designed to expand or enhance Wi-Fi coverage range, rather than directly increase speed.
5.PoE converter is not waterproof and should be used indoors or in a sheltered environment.

How to Install the Ethernet Cable?
① Pass the RJ45 cable through the waterproof connector cover.
② Screw the waterproof seal into the waterproof connector bracket.
③ Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④ Put the waterproof sealing ring on the waterproof connector bracket.
⑤ Connect the RJ45 cable to WAN/LAN port.
⑥ Connect the 2.4G and 5G antennas to the corresponding connectors.

AX1800 WiFi 6

Features
- Robust weatherproof case, IP67 waterproof rating and built-in lightning arrester (15kV ESD) withstands harsh outdoor conditions.
- Supports 802.3 AT/AF active PoE and passive PoE to supply power.
- Fiberlass tube antennas for high precision, corrosion resistance, long life, strong wind resistance.
- 4x8dBi detachable omnidirectional external antennas provide excellent wireless performance.
- Supports dual band(2.4G 573Mbps+5G 1201Mbps) with combined speeds of up to 1800Mbps.
- Mesh technology makes you enjoy seamless roaming throughout the house with a single network name and password.
- Complies with IEEE 802.11 ax/ac/a/n/g/b standards.
- Supports Mesh/AP/Router/Repeater/AP+Repeater modes.
- Encryption type:WPA2-PSK, WPA3/WPA2-MIX.

Specification
- Model: WL-WN573HX1
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(574Mbps)+5GHz(1201Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green

In the Box
1 x Wi-Fi6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable

Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.

How to install antennas and Ethernet cable?
①Pass the RJ45 cable through the waterproof connector cover.
②Screw the waterproof seal into the waterproof connector bracket.
③Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④Put the waterproof sealing ring on the waterproof connector bracket.
⑤Connect the RJ45 cable to WAN/LAN port.
⑥Screw the connecting cable into the 2.4G and 5G antenna connector and screw up the connector.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable is CAT5E
or above certified and shorter than 100m/328ft.

How to install the product on a column?
①Stick two silicone pads on the bracket and post respectively.
②Thread the cable ties through the fixing point of the bracket.
③Fix the product to the post with cable ties.

AX3000 WiFi 6

Features
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
- Supports AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- 2x8dBi 5GHz and 2x8dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
- Glass tube antenna for high precision, corrosion resistance. long life, strong wind resistance.
- Seamless and stable WiFi Mesh makes you enioy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.

Specification
- Model: WL-WN573HX3
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green

Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3(*Latest firmware required) and WN573HX3.

How to install antennas and Ethernet cable?
①Pass the RJ45 cable through the waterproof connector cover.
②Screw the waterproof seal into the waterproof connector bracket.
③Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④Put the waterproof sealing ring on the waterproof connector bracket.
⑤Connect the RJ45 cable to WAN/LAN port.
⑥Screw the connecting cable into the 2.4G and 5G antenna connector and screw up the connector.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable is CAT5E or
above certified and shorter than 100m/328ft.

How to install the product on a column?
①Stick two silicone pads on the bracket and post respectively.
②Thread the cable ties through the fixing point of the bracket.
③Fix the product to the post with cable ties.

BE5100 WiFi 6

WAVLINK outdoor router, the ultimate alfresco network solution!
Wi-Fi 7 dual-band technology for blistering combined speeds up to 5100Mbps (688Mbps on 2.4GHz + 4323Mbps on 5GHz).
Enjoy seamless browsing, zero-lag gaming, and buffer-free 4K streaming with effortless roaming across outdoor spaces.
Built to conquer extreme environments, its IP67-rated waterproof/dustproof enclosure shrugs off monsoons and debris,
while 15KV ESD + 4KV lightning protection shields internal electronics from violent storms. Power it flexibly via Active PoE
(ideal for plug-and-play deployments in schools/hospitals) or Passive PoE (cost-effective long-range power for farms/orchards).
Four rugged 8dBi fiberglass antennas deliver 360° long-range coverage, while a dedicated 5dBi antenna eliminates near-ground
dead zones. Create a unified mesh network instantly with one-touch WAVLINK Everything Mesh pairing, and choose from 5 versatile
modes—Router, AP, Repeater, Mesh Router, or Mesh Extender—to adapt to any scenario without signal drops.

How do I install antennas and the Ethernet cable?
①Pass the Ethernet cable through the hex cap.
②Pass the Ethernet cable through the sealing plug.
③Pass the Ethernet cable through the hex stud.
④Pass the Ethernet cable through the sealing ring.
⑤Connect the Ethernet cable to the WAN/LAN port, screw the hex stud, insert the sealing plug into the hex stud,
and screw the hex cap counterclockwise to tighten the waterproof connector using the wrench.
⑥Screw the omni antennas into the 2.4G and 5G antenna connectors and screw up the connectors.
Note: The PoE converter is not waterproof; please install it indoors. Please make sure your Ethernet cable is CAT5E or
above certified and shorter than 100 m/328ft.

How do I install the device on the post?
Step 1: Stick two silicone pads on the bracket and post respectively.
Step 2: Thread the cable ties through the fixing point of the bracket.
Step 3: Fix the product to the post with cable ties.

WiFi 7 Performance
Comes with next-generation WiFi 7 dual-band technology; this router supports super-speed wireless speed up to 5100Mbps,
including 4323Mbps on 5GHz and 688Mbps on 2.4GHz.

Weatherproof Design
IP67 waterproof and dustproof, 15KV ESD, and 4KV lightning protection are designed for extreme outdoor environments.

WPA3-SAE Encryption
WPA3-SAE can significantly reduce risks such as network eavesdropping, man-in-the-middle attacks, and data theft.

Active and Passive PoE
Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs.
Passive PoE converter included.

Fiberglass Tube High Gain Antennas
4 x 8 dBi omnidirectional antennas are covered by strong fiberglass tubes, expanding signal coverage and withstanding harsh conditions,
providing superior WiFi performance and longer service life.

Feature
Frequency: dual-band 2.4GHz@688Mbps+5GHz@4323Mbps, speed up to 5100Mbps.
Ethernet port: 1x2.5G WAN/LAN.
Antennas: 4x8dBi + 1x5dBi high-gain antennas.
Operation modes: mesh AP, AP, repeater, mesh router, and mesh extender.
Security: WPA3-SAE/WPA2-PSK, WPA2-PSK, WPA PSK/WPA2PSK-MIX.
Power adapter: 100-240V/50-60Hz; DC 54V (Passive PoE); DC 48V (Active PoE).
IP 67 waterproof, 15KV ESD, and 4KV lightning protection.
Complies with IEEE 802.11 be/ax/ac/a/n/g/b standards.
Supports 802.3 AT/AF PoE and Passive PoE to supply power.

Warm Tips
① The PoE converter is not waterproof; please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100 m/328 ft.
③ Please install the product 2–3 meters above the ground for better performance.
④ Under the mesh mode, WN573HBE2 supports interconnection with WN586X3, WN572HP3 (*Latest firmware required), and WN573HBE2.

Packing List
-1 x BE5100 WiFi7 Outdoor AP
-1 x 54V Power Adapter
-1 x PoE Converter
-1 x Ethernet Cable
-1 x Main Body Holder
-4 x Omni Antennas
-2 x Stainless Steel Hose Clamps
-2 x Silicone Pads
-1 x Slotted Screwdriver
-1 x Wrench
-1 x Quick Start Guide
-Several Screws
