Product Parameters

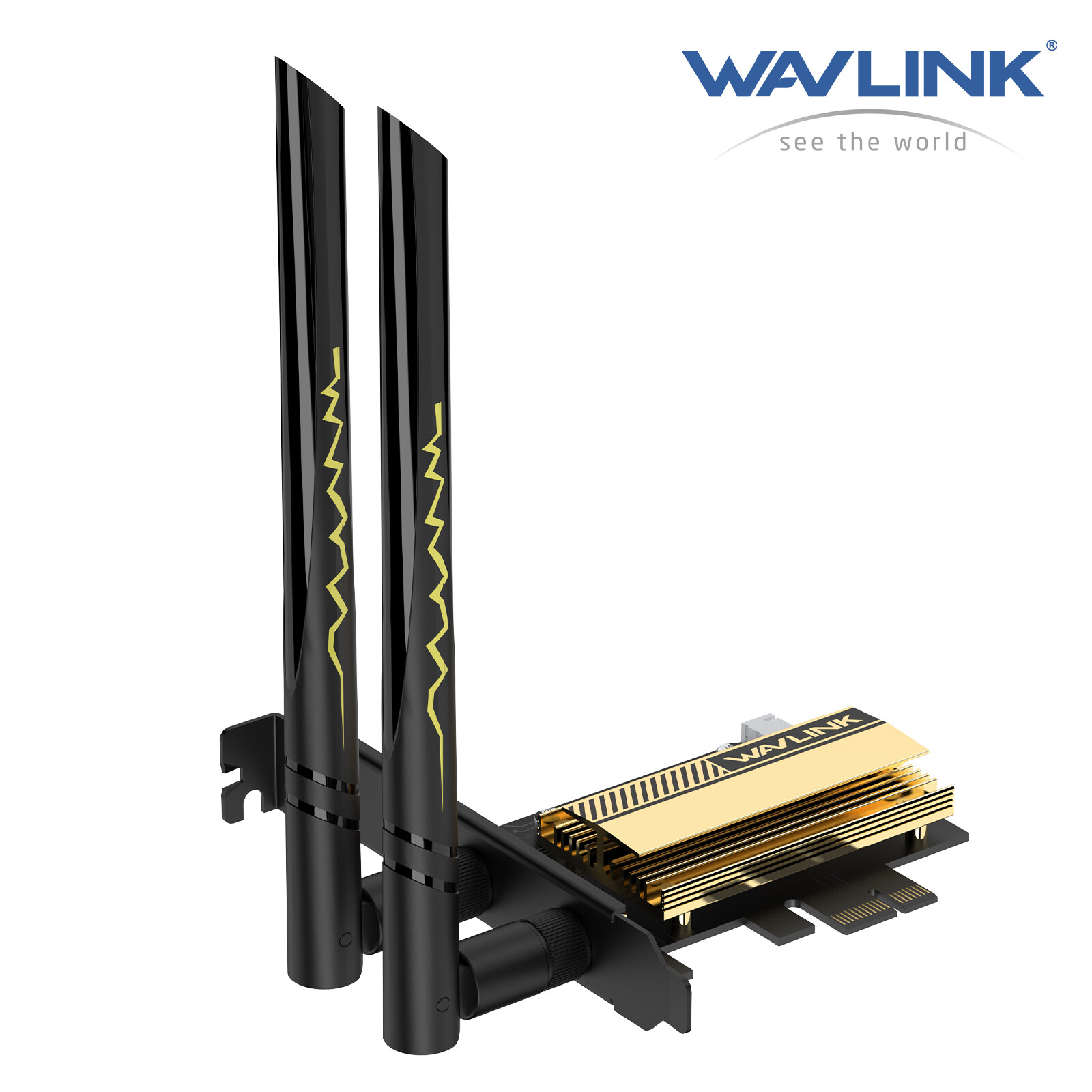

5400Mbps-Intel Wi-Fi 6E AX210

WAVLINK 2023 New AX5400M WiFi 6E PCIe Network Card, Tri-Band AX210 Wireless Adapter with Bluetooth 5.3, MU-MIMO, WPA3, OFDMA, Low-Profile Bracket, Heat Sink, for Windows 10/11 PC

⭐Upgrade WiFi 6E Standard: This WiFi 6E network card offers enhanced capacity and improved performance. It supports the latest 802.11ax technology, including features like OFDMA, MU-MIMO, 1024QAM, and Target Wake Time (TWT). With these advanced technologies, it provides a high-speed data rate even in dense or congested environments. Whether you're streaming, downloading, or gaming, this network card ensures an incredibly fast connection with ultra-low latency, delivering an exceptional gaming experience.

⭐Lag-Free Connection: The Intel AX210 chipset takes your WiFi to the next level by extending it into the 6GHz band. This tri-band capability enables maximum speeds of up to 574Mbps on 2.4GHz, 2400Mbps on 5GHz, and another 2400Mbps on 6GHz. The 2.4GHz band is suitable for long-range transmission, while the 5GHz band is perfect for gaming and streaming in 4K resolution. The 6GHz band provides an ideal environment for ultra-smooth and real-time gaming, as well as an immersive VR experience.

⭐Bluetooth 5.3 & WPA3 Security: The latest BT5.3 technology revolutionizes your wireless data connection between your computer and Bluetooth-enabled devices. With 2x faster transmission speeds and a 4x greater range, you can experience seamless connectivity and enhanced performance. Additionally, the advanced WPA3 security protocol ensures robust protection against hackers and malware, providing a secure network environment.

⭐ Faster, Smoother and Broader: Two external 5dBi antennas ensure strong signal reception and transmission, greatly increasing network coverage for a smoother online experience. 1024-QAM and a 160MHz bandwidth deliver powerful, continuous Wi-Fi signal, achieving speeds 3× faster than standard AC Wi-Fi. With the advanced OFDMA technology, lag is reduced by up to 75%, just say goodbye to buffering and delays, and enjoy unparalleled speed and responsiveness with this exceptional Wi-Fi solution.

⭐Compatiblity & Warranty: Compatible with Windows 10/11, Linux for desktop PC, you can get the driver from our website. Works with PCIe X1/X4/X8/X16 slots( Not for PCI slot). We provide 12-month worry free warranty(extra 6 months for registered members) and life-long technical support, just feel free to contact us if you have any problem.

Dual Brackets
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.

Important Note
We put plastic film on its PCI-e interface for protection before the product is shipped. Please remove it before connecting to the PC's PCI-e slot.

Specification
Product Model: WN675X3-C(chipset: Intel AX210)
Transmission Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 2400Mbps
Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax
Frequency Band: 2.4GHz, 5GHz, 6GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring, 1024QAM, Target Wake Time(TWT)
Support System: Win 11/10 (64 bit), Linux
Bluetooth Version: Bluetooth 5.3
Interface: Compatible with PCI-E X1/X4/X8/X16
Wireless Security: WPA2/WPA3, WPA2-PSK encryption

Package Contents
-1x WiFi 6E AX5400 PCIe Adapter
-1x Bluetooth Cable
-2x External Antenna
-1x Low Profile Bracket
-3x Screws
-1x Drivers Download Card
-1x User Manual

Warm Tips
1. For desktops only. A bluetooth power cable needs to be connected to the motherboard 9-pin interface, or the bluetooth function won't work.
2. Recommended to use a wifi6 or wifi6e compatible router for faster wireless speed and better network performance of our PCIE wifi adapter.
3. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).
4. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memory…the interference of many factors can affect the speed.
5. Please turn off the built-in Wi-Fi when using on a desktop pc.( If there is a built-in Wi-Fi function on your desktop pc).
6. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.
7. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.

8800Mbps-Intel Wi-Fi 7 BE200

WAVLINK 2024 New BE8800 WiFi 7 PCIe Network Card, Tri-Band BE200 Wireless Adapter with Bluetooth 5.4, MU-MIMO, WPA3, Low-Profile Bracket, Heat Sink, for Windows 10/11 Desktop Wi-Fi 7 Technology: Empowered by Wi-Fi 7, this card unleashes the complete capabilities of the 6 GHz band, offering outstanding bandwidth and dedicated, congestion-free channels tailored for your desktop. With enhancements like 4096-QAM and 320MHz, this adapter achieves staggering wireless speeds, enabling seamless playback of multiple media streams at once.

⭐Unmatched Tri-Band Speed: The Intel BE200 chipset takes your WiFi to the next level by extending it into the 6GHz band. This tri-band capability enables maximum speeds of up to 574Mbps on 2.4GHz, 2400Mbps on 5GHz, and another 5800Mbps on 6GHz. Meet the use of high bit rate 4K/8K video, VR/AR applications, remote working, video conferencing and cloud computing scenarios.

⭐Bluetooth 5.4 & WPA3 Security: The latest BT5.4 technology revolutionizes your wireless data connection between your computer and Bluetooth-enabled devices. With 2x faster transmission speeds and a 4x greater range, you can experience seamless connectivity and enhanced performance. Additionally, the advanced WPA3 security protocol ensures robust protection against hackers and malware, providing a secure network environment.

⭐320MHz Transfer Rate & 4K-QAM Modulation: Wi-Fi 7 makes a further breakthrough based on Wi-Fi 6/6E. The High Band Simultaneous (HBS) Multi-Link technology can double the potential channel bandwidth to a maximum of 320MHz. 4K-QAM technology packs more data into the waveform signal, featuring faster data transfer rate and better overall network performance.

⭐Compatiblity & Warranty: Compatible with Windows 10/11 for desktop PC, you can get the driver from our website. Works with PCIe X1/X4/X8/X16 slots(Not support for all devices whose motherboard has AMD chips). We provide 12-month worry free warranty(extra 6 months for registered members) and life-long technical support, just feel free to contact us if you have any problem.

Compatible OS
Support Windows 10/11 64-bit
*Please note that to utilize 6GHz band, the user must be on Windows 11 version.

WPA3 Security
The latest WiFi security protocol, WPA3, brings new capabilities to improve cyber security. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.

Robust Connection with Dual High-Gain Antennas
Two 5dBi high-performance antennas extend your existing WiFi reception capabilities by allowing you to stream throughout your home.

Advanced Heat Sink for Better Stability
The networking card is equipped with an advanced heat sink that effectively dissipates the heat generated by the adapter. This feature not only enhances performance and stability but also contributes to extending the lifespan of the adapter.

Dual Brackets
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.

Important Note
We put plastic film on its PCI-e interface for protection before the product is shipped. Please remove it before connecting to the PC's PCI-e slot.

Specification
Product Model: WN685BE3-B(chipset: Intel BE200)
Transmission Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 5800Mbps
Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax/be
Frequency Band: 2.4GHz, 5GHz, 6GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring, 320MHz, 4096QAM, Target Wake Time(TWT), Multi Link Operation(MLO), Multi-RU, Enhanced Multi-Link Single Radio(eMLSR)
Support System: Win 11/10 (64 bit)
Bluetooth Version: Bluetooth 5.4
Interface: Compatible with PCI-E X1/X4/X8/X16
Wireless Security: WPA3/WPA2 encryption

Package Contents
-1x WiFi 7 BE8800 PCIe Adapter
-1x Bluetooth Cable
-2x External Antenna
-1x Low Profile Bracket
-3x Screws
-1x Drivers Download Card
-1x User Manual

Warm Tips
1. For desktops only. A bluetooth power cable needs to be connected to the motherboard 9-pin interface, or the bluetooth function won't work.
2. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).
3. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memory…the interference of many factors can affect the speed.
4. Please turn off the built-in Wi-Fi when using on a desktop pc.( If there is a built-in Wi-Fi function on your desktop pc).
5. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.
6. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.

8800Mbps+BT5.4-Intel Wi-Fi 7 BE200-with base

WAVLINK 2024 New BE8800 WiFi 7 PCIe Network Card for Desktop PC, Tri-Band BE200 Wireless Adapter with Bluetooth 5.4, MU-MIMO, WPA3, for Windows 10/11(64bit), Not for AMD Motherboard

⭐Pioneering Wi-Fi 7 Technology: Empowered by Wi-Fi 7, this card unleashes the complete capabilities of the 6 GHz band, offering outstanding bandwidth and dedicated, congestion-free channels tailored for your desktop. With enhancements like 4096-QAM and 320MHz, this adapter achieves staggering wireless speeds, enabling seamless playback of multiple media streams at once.

⭐Unmatched Tri-Band Speed: The Intel BE200 chipset takes your WiFi to the next level by extending it into the 6GHz band. This tri-band capability enables maximum speeds of up to 574Mbps on 2.4GHz, 2400Mbps on 5GHz, and another 5800Mbps on 6GHz. Meet the use of high bit rate 4K/8K video, VR/AR applications, remote working, video conferencing and cloud computing scenarios.

⭐Bluetooth 5.4 & WPA3 Security: The latest BT5.4 technology revolutionizes your wireless data connection between your computer and Bluetooth-enabled devices. With 2x faster transmission speeds and a 4x greater range, you can experience seamless connectivity and enhanced performance. Additionally, the advanced WPA3 security protocol ensures robust protection against hackers and malware, providing a secure network environment.

⭐320MHz Transfer Rate & 4K-QAM Modulation: Wi-Fi 7 makes a further breakthrough based on Wi-Fi 6/6E. The High Band Simultaneous (HBS) Multi-Link technology can double the potential channel bandwidth to a maximum of 320MHz. 4K-QAM technology packs more data into the waveform signal, featuring faster data transfer rate and better overall network performance.

⭐Wider Coverage & Compatiblity: Boost your Wi-Fi reception using two high-performance, multi-directional antennas with a magnetized base. Adjust the antenna base to find the optimal signal reception location on your desktop. This device is compatible with Windows 10/11 for desktop PCs, and you can download the driver from our website. It works with PCIe X1/X4/X8/X16 slots (Not compatible with AMD motherboards).

Latest Bluetooth 5.4
Solve the problem of a poor signal by achieving 2x quicker speeds and 4x greater coverage than BT4.0. Coordinate your game controllers, headphones, and keyboards with the latest Bluetooth standard.

Powerful BE200 Chip
The BE200 incorporates the latest IEEE Wi-Fi specification of 802.11BE, introducing the new band extension for Wi-Fi: UHB (Ultra High Band).

Compatible OS
Support Windows 10/11 64-bit
*Please note that to utilize 6GHz band, the user must be on Windows 11 version.

Adjustable Antennas for Peak Performance
Easily find the optimal location for the strongest Wi-Fi signal with adjustable, high-performance antennas with magnetic base.

Dual Brackets
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.

Important Note
We put plastic film on its PCI-e interface for protection before the product is shipped. Please remove it before connecting to the PC's PCI-e slot.

Specification
Product Model: WN685BE3-A(chipset: Intel BE200)
Transmission Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 5800Mbps
Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax/be
Frequency Band: 2.4GHz, 5GHz, 6GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring, 320MHz, 4096QAM, Target Wake Time(TWT), Multi Link Operation(MLO), Multi-RU, Enhanced Multi-Link Single Radio(eMLSR)
Support System: Win 11/10 (64 bit)
Bluetooth Version: Bluetooth 5.4
Interface: Compatible with PCI-E X1/X4/X8/X16
Wireless Security: WPA3/WPA2 encryption

Package Contents
-1x WiFi 7 BE8800 PCIe Adapter
-1x Bluetooth Cable
-1x External Antenna Dock
-1x Low Profile Bracket
-3x Screws
-1x Drivers Download Card
-1x User Manual

Warm Tips
1. For desktops only. A bluetooth power cable needs to be connected to the motherboard 9-pin interface, or the bluetooth function won't work.
2. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).
3. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memory…the interference of many factors can affect the speed.
4. Please turn off the built-in Wi-Fi when using on a desktop pc.( If there is a built-in Wi-Fi function on your desktop pc).
5. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.
6. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.

5400Mbps+BT5.3-Intel Wi-Fi 6 AX210-with base

Wavlink New AX5400M WiFi 6E PCIe Network Card, Tri-Band AX210 Wireless Adapter with Bluetooth 5.3, MU-MIMO, WPA3, OFDMA, Low-Profile Bracket, Heat Sink, for Windows 10/11 PC

⭐Upgrade to Next-Gen WiFi 6E: Comes with a greater capacity and improved performance, this WiFi 6E network card supports the latest 802.11ax technology, such as OFDMA, MU-MIMO, 1024QAM, Target Wake Time(TWT). It delivers a high-speed data rate even in dense or congested environments and gives you an incredibly fast gaming experience with ultra-low latency.

⭐Lag-Free Connection: Intel AX210 chipset extends WiFi into 6GHz band, updating your wifi to tri-band with maximum speeds up to 574Mbps on 2.4GHz, 2400Mbps on 5Ghz, 2400Mbps on 6Ghz. 2.4GHz for the long range transmission, 5GHz for gaming and 4K streaming, while 6GHz is ideal for ultra-smooth and real-time gaming or an immersive VR experience.

⭐Bluetooth 5.3 & WPA3 Security: The newest BT5.3 provides a powerful wireless data connection between your computer and Bluetooth enabled devices, with 2x faster transmission speeds, 4x greater range. In addition, advanced WPA3 security protocol greatly protects the network from hackers and malware, letting you relax with a peace of mind and just enjoy the high-speed WiFi.

⭐High Gain Antennas & Magnetized Base: Two external 5dBi antennas ensure strong signal reception and transmission, greatly increasing network coverage for a smoother online experience. With a magnetized base and 3.6ft RF cable, you can place it anywhere--your desktop or the computer chassis, to get optimal wireless signal. Easily install with the standard or low profile bracket.

⭐Compatiblity & Warranty: Compatible with Windows 10/11, Linux for desktop PC, you can get the driver from our website. Works with PCIe X1/X4/X8/X16 slots( Not for PCI slot). We provide 12-month worry free warranty(extra 6 months for registered members) and life-long technical support, just feel free to contact us if you have any problem.

Product Overview
Wavlink Tri-Band PCI-E is an AX5400 wireless adapter for desktops that supports the latest Bluetooth 5.3. The wireless adapter features stable signal, high speed rate and superior performance. Compliant with 802.11 ax specification,the wireless adapter supports 2.4G, 5G and 6G bands. With 1024-QAM and MU-MIMO technology, WL-WN675X3 delivers wireless signal faster and more effectively by cooperating with an MU-MIMO compatible router.

Latest Bluetooth 5.3
Solve the problem of a poor signal by achieving 2x quicker speeds and 4x greater coverage than BT4.2. Coordinate your game controllers, headphones, and keyboards with the latest Bluetooth standard.

Compatible OS
Support Windows 10/11 64-bit, Linux
*Please note that to utilize 6GHz band, the user must be on Windows 11 version.

WPA3 Security
The latest WiFi security protocol, WPA3, brings new capabilities to improve cyber security. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.

Robust Connection with Dual High-Gain Antennas
Two 5dBi high-performance antennas with a magnetized base extend your existing WiFi reception capabilities by allowing you to stream throughout your home. Place the antenna base anywhere on your desktop to find the optimal location for signal reception.

Important Note
We put plastic film on its PCI-e interface for protection before the product is shipped. Please remove it before connecting to the PC's PCI-e slot.

Specification
Product Model: WN675X3(chipset: Intel AX210)
Transmission Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 2400Mbps
Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax
Frequency Band: 2.4GHz, 5GHz, 6GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring, 1024QAM, Target Wake Time(TWT)
Support System: Win 11/10 (64 bit), Linux
Bluetooth Version: Bluetooth 5.3
Interface: Compatible with PCI-E X1/X4/X8/X16
Wireless Security: WPA/ WPA2/ WPA3, WPA-PSK/ WPA2-PSK Encryption

Package Contents
-1x WiFi 6E AX5400 PCIe Adapter
-1x Bluetooth Cable
-1x External Antenna
-1x Low Profile Bracket
-2x Screws
-1x Drivers Download Card
-1x User Manual

Warm Tips
1. For desktops only. A bluetooth power cable needs to be connected to the motherboard 9-pin interface, or the bluetooth function won't work.
2. Recommended to use a wifi6 or wifi6e compatible router for faster wireless speed and better network performance of our PCIE wifi adapter.
3. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).
4. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memory…the interference of many factors can affect the speed.
5. Please turn off the built-in Wi-Fi when using on a desktop pc.( If there is a built-in Wi-Fi function on your desktop pc).
6. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.
7. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.

1300Mbps-USB WiFi Adapter-no BT

Wavlink AC1300 Wireless Dual Band USB3.0 Adapter for PC, 1300Mbps WiFi Adapter with 2.4G/400Mbps and 5G/866Mbps, High Gain Dual 3dBi Antennas, MU-MIMO. Magnetic Design Network Card for Desktop, Laptop, PC, Support Win10/8.1/8/7/XP, Mac OS Wireless Adapter Speed]: Support 2.4GHz & 5GHz WLAN networks. With ultra-fast AC1300 (867+400)Mbps wireless speed, you can get maximum 867Mbps wireless speed on 5GHz WiFi Band or 400Mbps on 2.4GHz WiFi Band. WN692A3 Wireless-AC USB 3.0 Adapter, 3 times faster than wireless N speeds, is the superior choice for seamless HD video streaming, online gaming and other bandwidth-intensive tasks.

[Superspeed USB3.0 port]: Super USB 3.0 WiFi Adapter for your desktop, laptop, PC supports transfer rates of up to 5Gbps, which is 10 times faster than USB 2.0, ensuring the highest throughput and more stable internet connection. Backward compatible with USB 2.0. It Complies with IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards.Your Best wireless Adapter for PC, Desktop or Laptop.

[Plug and Play & WPS Technology Supported]: With USB 3.0 port(USB3.0 Cable included), this WiFi adapter is easy to connect to your computers or other devices. Plug and play for Windows 8 /8.1/10. Note: Driver is needed for other systems. WPS technology realizes a secure and passwords-free connection without any complicated settings. You only need to press the WPS button of your router and wireless network card at the same time and hold it for a few seconds to instantly realize a passwords-free secure connection to effectively protect your network security.

[Stable and Convenient Hotspot]: If your computer is connected to a wired network, this WiFi dongle can turn a wired internet connection into a WiFi hotspot with the soft AP mode, transmitting wireless signals to your mobile, laptop, tablet or other devices from your computer, so that you can enjoy a stable and fast Internet connection with the device.

[Universal Compatibility & What You Get]: Works with any WiFi routers; Supports Windows XP/ Vista/ 7/ 8/ 8.1/ 10, MacOS 10.7-10.15. You will get: 1x AC1300 Wireless Dual Band USB3.0 Adapter, 1 x USB3.0 Cable, 1 x Quick Start Guide, 1 x CD-shaped card for driver download. 12-month worry free warranty(extra 6 months for registered members) and life-long technical support.

High-Speed Dual Band
The Wireless Adapter receives wifi signals on two sparate bands. Supports dual band technology with the highest transmission rate up to1300Mbps (2.4G+5G) to bring you a high-speed online experience. You Can Get Maximum 867Mbps Wireless Speed on 5GHz WiFi Band or 400Mbps on 2.4GHz WiFi. 2.4G has better wall penetration effect and wider coverage, whereas 5G network is faster and stands out within short range.

USB3.0 Port, Faster and More Stable
USB 3.0 supports transfer rates of up to 5Gbps---10 times faster than USB 2.0, ensures Wi-Fi adapter maximum throughput performance and more stable internet connection. Backwards compatible with USB 2.0 devices. It boosts the speeds of data transmission, upgrades your computer to fast AC1300 WIFI speeds for smooth HD streaming and quick downloads.

3dBi High Gain Antenna
2 x 3dBi High-gain antenna greatly enhances the reception and transmission signal strength of the USB Adapter. It boosts the reception and sensitivity of the network adapter to create stronger connections over greater distances, which allows the signal to travel farther and provides stable Internet access for all of the connected devices.

Convenient WiFi Hotspot
With the soft AP function, just plug the network card into your PC device and convert the wired network to wireless wifi, which allows to achieve a multi-device sharing network for you, so that the laptops, mobile phones, etc. can share wifi easily.

WPS Technology Supported
WPS technology can ensure easy wireless security encryption. There is no need for additional network security settings, just press and hold the WPS button of the network card and the router at the same time for a few seconds, and you can immediately obtain effective security protection and access the Internet without passwords.

Awesome Compatibility
Works with Any WiFi Routers; Supports Microsoft Windows XP/ Vista/ 7/ 8/ 8.1/ 10, MacOS 10.7-10.15.(No driver is required for Windows 8 /8.1/10 systems, just plug and play.)

Magnetic Design
By adopting super magnetic design, the adapter can be firmly absorbed on the case panel for its internal magnet to prevent accidental fall and damage and make your desktop look more clean and tidy.

Smart LED Indicator
With a power LED Indicator(blue color light) on the adapter, different operating states exhibit different flicker frequency, it's greatly convenient and clear to learn the corresponding operation status of the device.

TECHNICAL SPECIFICATIONS
Model: WL-WN692A3
Ports: 1 x USB3.0
LED: 1 x Link/Active
Power Supply: USB 5V
Rated Voltage/ Frequency: DC5V
WIRELESS Standard: IEEE 802.11a/b/g/n/ac
Speed: 802.11ac: up to 867Mbps
802.11n: up to 400Mbps
802.11a: up to 54Mbps
802.11g: 54Mbps
802.11b: 11Mbps
Frequency Band: 2.4GHz, 5GHz
Wireless Security: WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

PACKAGE:
1x AC1300 Wireless Dual Band USB3.0 Adapter
1 x USB3.0 Cable
1 x Quick Start Guide
1 x CD-shaped card for driver download
