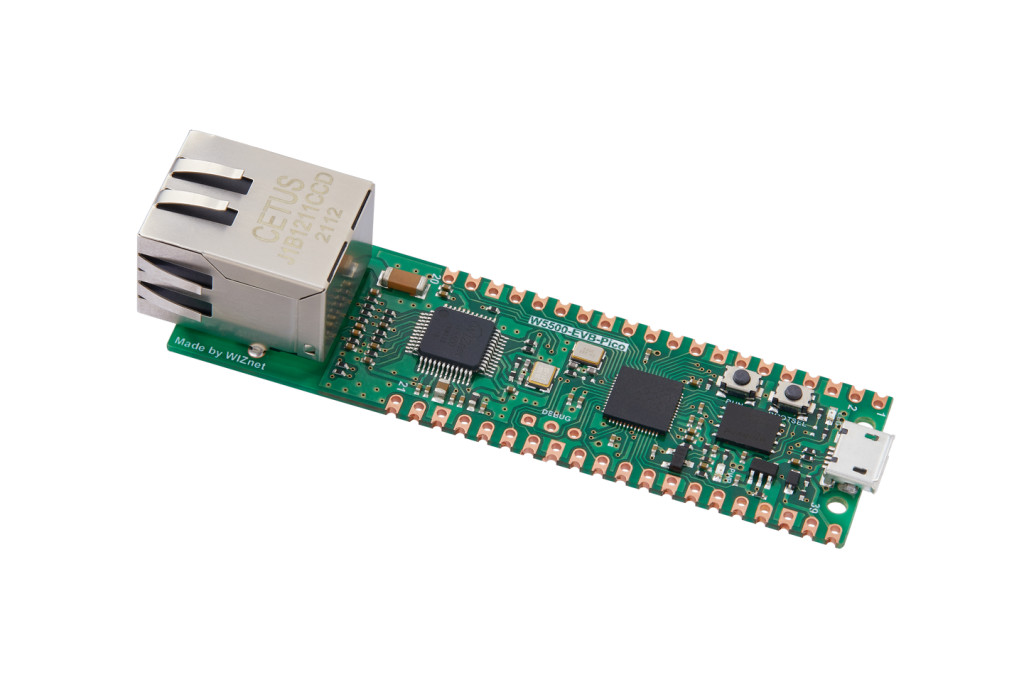

W5500-EVB-Pico is a microcontroller evaluation board based on the Raspberry Pi RP2040 and fully hardwired TCP/IP controller W5500 – and basically works the same as Raspberry Pi Pico board but with additional Ethernet via W5500.

Key Includes W5500 – Supports Hardwired Internet Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE – Supports 8 Independent Hardware SOCKETs simultaneously – Internal 32 Kbytes Memory for TX/ RX Buffers – Supports High Speed Serial Peripheral Interface(SPI MODE 0, 3)– Micro-USB B port for power and data (and for reprogramming the Flash)– 40 pin 21×51 ‘DIP’ style 1mm thick PCB with 0.1″ through-hole pins also with edge castellations– 3-pin ARM Serial Wire Debug (SWD) port– 10 / 100 Ethernet PHY embedded– Supports Auto Negotiation – Full / Half Duplex – 10 / 100 Based– Built-in RJ45– Built-in LDO
