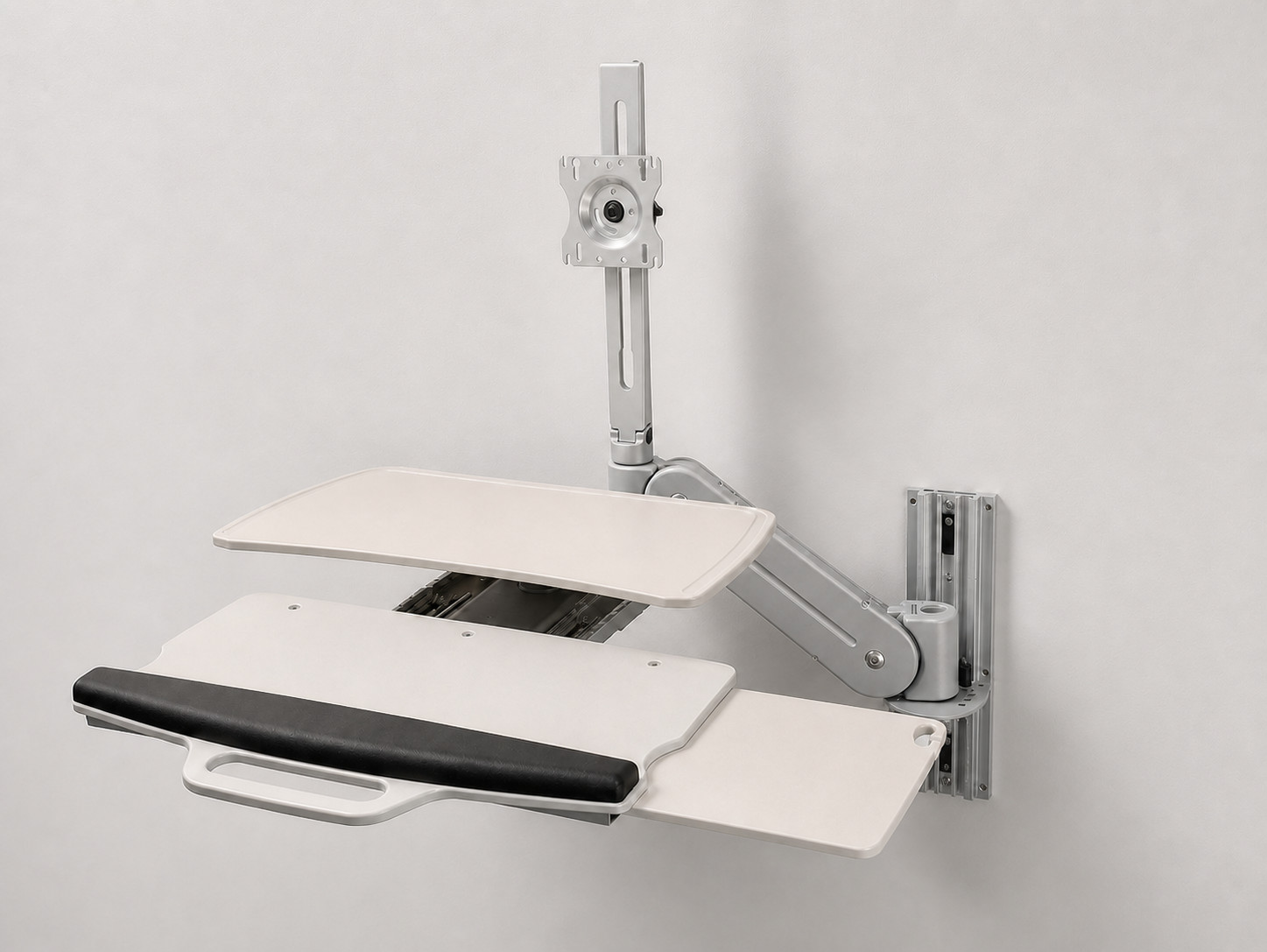

Modular Services Company APTUS HD WorkstationModel 518-2320 · Wall / Headwall Mounted Medical Computer Charting Station

The APTUS HD Workstation is a counterbalanced patient-charting station built by Modular Services Company for clinical environments. Monitor, keyboard and mouse all travel together on a single gas-spring arm, so a caregiver repositions the entire workstation with one hand — sitting or standing — without adjusting each component separately. When not in use the arm compresses flat against the wall or headwall to clear the room.

The HD arm is the heavy-duty version of the APTUS platform, with a wider counterbalance range and longer reach than the L series. Cable management is integrated through the arm, and the keyboard tray includes a built-in wrist pad, a carry handle, and a mouse tray that mounts on either the left or right Modular Services Company (MSC)

Product Line: APTUS® HD

Model Number: 518-2320

Type: Wall-mount medical computer workstation / monitor and keyboard combo arm

Applied Load Range: 10 to 36 lbs. total, including monitor, keyboard, mouse, cabling and peripherals

Combo Arm Reach: 8 in. to 40 in.

Maximum Extension from Wall: 41.95 in.

Retracted Depth: Approximately 11.08 in. with keyboard tray folded up

Keyboard Tray Height Adjustment: 14 in.

LCD Height Adjustment: 9.5 in. independent of the tray

Counterbalanced Height Range: 270°

LCD Rotation: 360° — portrait or landscape

LCD Tilt Range: 38°

Monitor Mounting Standard: VESA 75mm and 100mm

Keyboard Tray Size: 19.625 in. wide x 19.25 in. deep

Keyboard Tray: Flips up and down for storage; integrated wrist pad and carry handle

Mouse Tray: Reversible, mounts left- or right-handed

Finish: Silver

Cable Management: Integrated through the arm

Country of Manufacture: United States

Shipping Weight: Approximately 45 lbs.

Factory Carton: 36-1/4 in. x 21 in. x 8-7/8 in.

What Is Included

• APTUS® HD counterbalanced combo arm assembly with VESA monitor mount
• Keyboard tray with integrated wrist pad, carry handle and reversible mouse tray
• Track adaptor
• Mounting hardware kit — 4 bolts, 6 shims, washers and allen wrench
• Complete per the manufacturer's parts list

Important — Please Read Before Buying

• The monitor channel / track is NOT included. Modular Services sells it separately (models 518-2301 and 518-2302). This unit mounts to a standard MSC monitor channel and you will need one, or a compatible MSC headwall, column or service module track, to install it.
• Monitor, keyboard, mouse and computer are not included — the photographs show the mount only.
• If mounting to a building wall rather than an MSC headwall, the manufacturer requires the wall be reinforced with bracing to support the system. Verify your wall construction and applied load before installing.
• Total applied equipment weight must fall between 10 and 36 lbs. for the counterbalance to function in Factory Packaging

Feel free to message with any questions.Optional CPU Holder, Scanner Holder and 2nd Extendable Reach Arm available separately.
