Waveshare 1080×1920 21.5inch Capacitive Touch Monitor Full HD HDMI
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Waveshare 1080×1920 21.5inch Capacitive Touch Monitor Full HD HDMI
Price: CN $363.99
DESCRIPTION
21.5inch Capacitive Touch Monitor, 1080×1920 Full HD, Optical Bonding Toughened Glass Panel, HDMI, 10-Point touch

  • Size21.5″
  • Resolution1080×1920
  • Display InterfaceHDMI
  • Display Color16.7M
  • Viewing Angle170°
  • Touch TypeCapacitive
  • Touch PortType-C
  • Touch Points10-Point
  • Touch PanelToughened Glass
  • Touch Panel TechOptical Bonding
  • Temperature Range-5 ~ 60℃
  • OSD MenuBrightness/Contrast
  • SoundHi-Fi Speaker
  • EnclosureAluminum Alloy
  • VESA Wall Mount100 × 100mm


Version OptionsModelMain ControllerNote21.5inch FHD Monitor-the HDMI Touch Monitor only21.5inch FHD Monitor (B)Built-inPi4B-2GBPi4B + HDMI Touch Monitor all-in-one21.5inch FHD Monitor (C)Built-inCMPI4102008CM4 + HDMI Touch Monitor all-in-one21.5inch FHD Monitor (D)Built-inPi5-2GBPi5 + HDMI Touch Monitor all-in-one
Device & System Support
Raspberry PiSupports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali, single point touch, driver free
Jetson NanoSupports Ubuntu, single point touch, driver free
PCSupports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Connection Examples

Working with Raspberry Pi 5

21.5inch FHD Monitor (D)| Built-in Pi5-2GB

Working with Raspberry Pi 4B

21.5inch FHD Monitor (B)| Built-in Pi4B-2GB

Working with Raspberry Pi Compute Module 4

21.5inch FHD Monitor (C)| Built-in CMPI4102008

Working with Jetson Nano

Working with mini PC


Configurable Display Orientation

The display orientation is portrait by default, 1080×1920 resolution (H×V).
Change the software config for landscape display

Wide viewing angle IPS display panel

Excellent Display & Color Performance
Wide viewing angle up to 170°, color gamut up to 72% NTSC


FHD High Resolution

1080×1920 Pixels, clearer display

  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical Bonding, display well and dustproof
Audio Feature

Built-in ferrite Hi-Fi speaker, dual-track support

Reserved airflow vents
Interface Introduction
for reference only, the monitor arm is not included.Application Scenarios

Suitable for industrial, commercial, medical and other applications


Dimensions

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Resources & Services

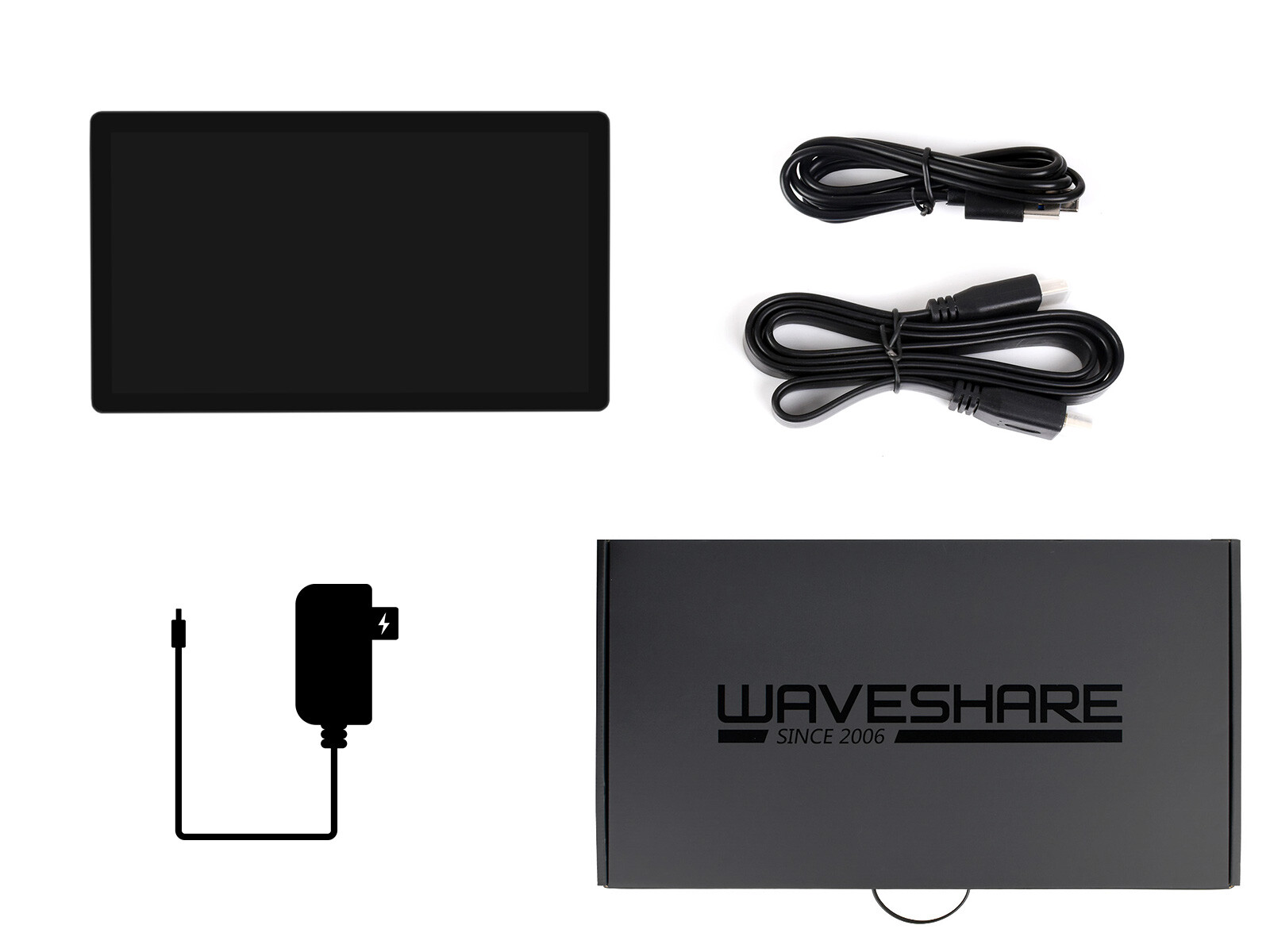

Package Content

Weight:5.6 kg

21.5inch FHD Monitor
  1. 21.5inch FHD Monitor ×1
  2. USB-A to USB-C cable ~1m ×1
  3. HDMI flat cable ~1m ×1
  4. OPTIONS12V 5A Power supply ×1
  5. Packaging box ×1
21.5inch FHD Monitor (B)
  1. 21.5inch FHD Monitor ×1
  2. Pi4B-2GB ×1
  3. 16GB TF card ×1
  4. USB-A to USB-C cable ~15cm ×1
  5. OPTIONS12V 5A Power supply ×1
  6. Packaging box ×1
21.5inch FHD Monitor (C)
  1. 21.5inch FHD Monitor ×1
  2. CM4-to-Pi4-Adapter ×1
  3. CM4 (2GB RAM + 8GB eMMC) ×1
  4. USB-A to USB-C cable ~15cm ×1
  5. OPTIONS12V 5A Power supply ×1
  6. Packaging box ×1
21.5inch FHD Monitor (D)
  1. 21.5inch FHD Monitor ×1
  2. Pi5-2GB ×1
  3. 16GB TF card ×1
  4. Pi5-Active-Cooler-C ×1
  5. USB-A to USB-C cable ~15cm ×1
  6. 5W thermal pad ×1
  7. OPTIONS12V 5A Power supply ×1
  8. Packaging box ×1
