DESCRIPTION

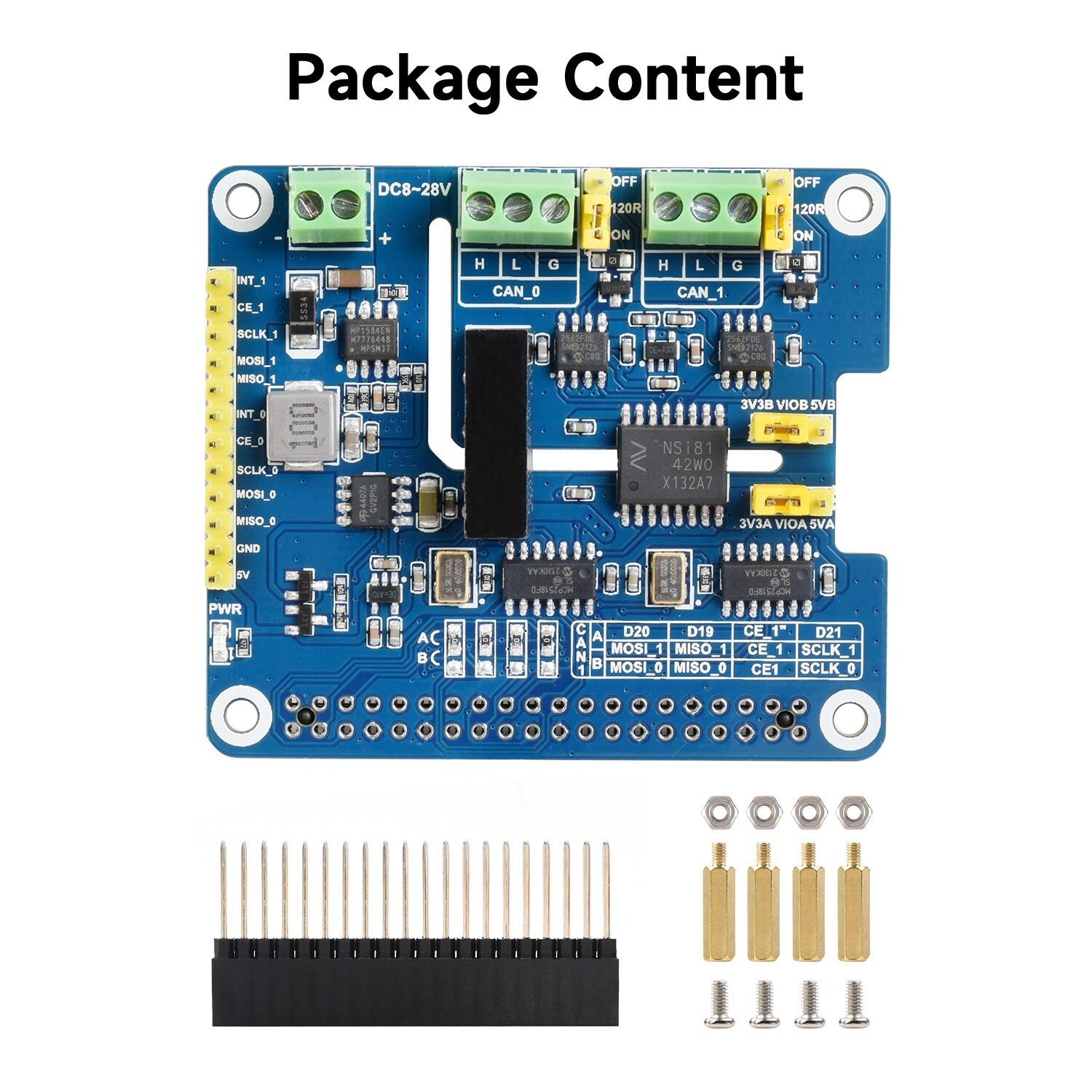

2-Channel Isolated CAN FD Expansion HAT For Raspberry Pi, CAN FD Support, Multi Onboard Protection Circuits 2-Channel CAN FD HAT For Raspberry Pi

The2-CH CAN FD HATis a 2-Channel CAN bus expansion HAT designed for Raspberry Pi, supports CAN FD (CAN with Flexible Data-Rate). It will enable CAN bus for your Raspberry Pi, not only the original CAN 2.0 protocol, but also the CAN FD extension, with higher data throughput.

Thanks to multi onboard protection circuits, including 500W lightningsurge, ESD protection, short circuit protection, and electrical isolation, it make the communication more safe and more reliable.

Specifications CAN CONTROLLER MCP2518FD CONTROL BUS SPI POWER SUPPLY External power supply terminal OR Raspberry Pi SCREW TERMINALINPUT VOLTAGE DC 8~28V OPERATING VOLTAGE 5V LOGIC LEVEL 3.3V/5V DIMENSIONS 65.0 × 56.5mm What Can It Do?

* Multi HATs Required

JUMPER CAN_1 CONTROL PIN CONFIG CAN_0 CONTROL PIN CONFIG CHIP SELECT (CE_1") INTERRUPT (INT_1) CHIP SELECT (CE_0) INTERRUPT (INT_0) DEFAULT SPI1_CE0 (D18) D24 CE0 (D8) D25 OPTIONS SPI1_CE1 (D17) D23 CE1 (D7) D13 OPTIONS SPI1_CE2 (D16) D22 BACKWARD COMPATIBLE D26 D16
Electrical Isolation Circuitry Safe & Stable

8~26V DC input

for use with host boards like Arduino

A: CAN_0 and CAN_1 use two separated SPI (default)
B: CAN_0 and CAN_1 share a single SPI

Pinout Definition Outline Dimensions Resources & Services
