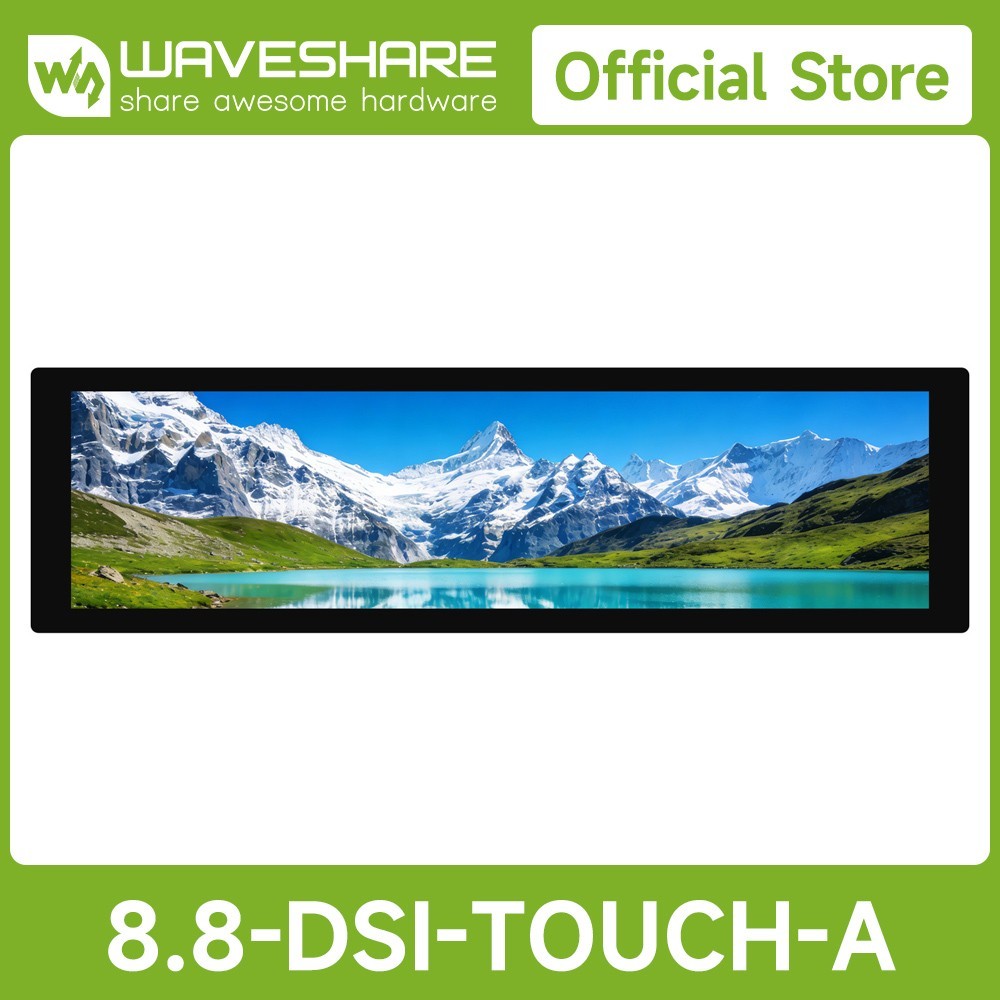

Waveshare 8.8inch DSI Capacitive Touch Display IPS Panel 480x1920 10-Point

Price: CN $73.95

Description
8.8inch DSI Capacitive Touch Display, IPS Panel, 480 × 1920 Resolution, 10-Point Touch, Supports Backlight Adjustment Via Software8.8″ DSI Capacitive Touch Display

High Resolution | Multi-touch | Full Color

Size8.8″
Resolution480 × 1920
Display InterfaceDSI
Display PanelIPS Panel
Viewing Angle178°
Touch TypeCapacitive
Touch Points10-Point
Touch InterfaceI2C
Touch PanelToughened Glass
Touch Panel TechOptical Bonding

The display orientation is portrait by default, 480 × 1920 (H×V)
Change the software config for landscape display

Device & System Support
Raspberry PiSupports Raspberry Pi OS, 10-point touch
RK3506Supports Buildroot, Ubuntu, and other systems, 10-point touch
ESP32-P4Supports LVGL GUI programs, 10-point touch
RK3576Supports Buildroot, Debian, Ubuntu, Android, and other systems, 10-point touchconnection examples

Working with Raspberry Pi 5

Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

Working with Raspberry Pi 4B

Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

Working with ESP32-P4-Module-DEV-KIT

Working with Luckfox Omni3576

Working with Luckfox Lyra

* for reference only, the above controller boards or hosts are NOT included

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

10-Point Capacitive Touch
