Description
ESP32-S3 1.28inch Double Eye Round LCD AIoT Development Board, Onboard Dual 1.28inch IPS Displays, 240 × 240 Resolution, Dual-core 240MHz Processor, Supports Wi-Fi / Bluetooth 5 ESP32-S3 1.28inch Double Eye AIoT
Development Board

Dual IPS Displays | 1.28inch | 240 × 240 | SPI Communication

Supports AI speech interaction, onboard TF card slot, Lithium battery header, and DIY connectors, etc.

Features

• Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built-in 512KB SRAM and 384KB ROM, with onboard 8MB PSRAM and 16MB Flash
• Onboard dual 1.28inch LCD displays, 240 × 240 resolution, 65K color, optional for touch function
• Onboard ES8311 audio codec and ES7210 audio ADC chip, equipped with standard microphone and speaker header, supports AI speech interaction
• Onboard TF card slot for convenient local storage expansion, and supports the storing and reading of data, images, audio files, and more
• Onboard Lithium battery recharge management module, reserved 3.7V Lithium battery power supply header
• Onboard SH1.0 14PIN connector, adapting UART, I2C and some IO interfaces, for easy DIY customization

Version Options

ESP32-S3-DualEye-LCD-1.28
without touch function

with touch function

Capacitive touch

Optional for capacitive touch function, controlled via I2C interface for flexible operation
and smooth UI interaction, with interrupt support

* Only supports touch function.

Onboard audio codec chip

Supports high-quality audio processing, providing clear and high-quality audio input and output

Supports AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc

Application Scenarios

Robot

AI Toy

Wireless IoT Application

Learning or DIY Creative Project

What's On Board

1. ESP32-S3R8
   Dual-core processor, up to 240MHz operating frequency
2. 16MB Flash
3. Battery recharge management chip
4. Amplifier chip
5. ES8311
6. ES7210
7. Microphone
8. MP1605GTF-Z
   Power module, supports up to 3.3V 2A output
9. Onboard ceramic antenna
10. IPEX1 connector
    for connecting external antenna, enabled via resoldering an onboard resistor
11. BOOT button
12. GPIO1 function selection resistor
    soldered on the side near the crystal by default: the GPIO1 pin is used for battery voltage measurement.
    resoldered to the other side: the GPIO1 connects to the17.FPC connector, enabling three-screen display function through software modification
13. Battery header
    MX1.25 2PIN connector, for 3.7V Lithium battery, supports charging and discharging
14. Charge indicator
    Lithium battery charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected)

15. Speaker header
16. SH1.0 14PIN header
17. 18PIN FPC connector
    for three-screen display function by resoldering the12.resistor and modifying the display configuration parameters in the program.
    when the board is split into two halves, this FPC connector can be linked with18.FPC connector so that both displays function properly (Note: when the board is split and connected via FPC cable, the RESET button will be unavailable)
18. 18PIN FPC header
    for connection to the host
19. TF card communication mode selection
    when the board is split into two halves, switching to SPI mode allows the TF card to be controlled by an external master controller.
20. TF card slot
    Supports high-capacity TF cards
21. RESET button
22. SH1.0 14PIN cable header
    for controlling TF card and the LCD display via SPI interface when the board is split into two halves and resoldering19.resistor to SPI mode
23. Type-C port

outline dimensions

Package Content

Weight:0.015 kg

ESP32-S3-DualEye-LCD-1.28

1. ESP32-S3-DualEye-LCD-1.28 x1
2. SH1.0 14PIN cable ~100mm x1
3. FFC 18PIN cable ~200mm x1
4. 8Ω 2W MX1.25 2PIN speaker x1

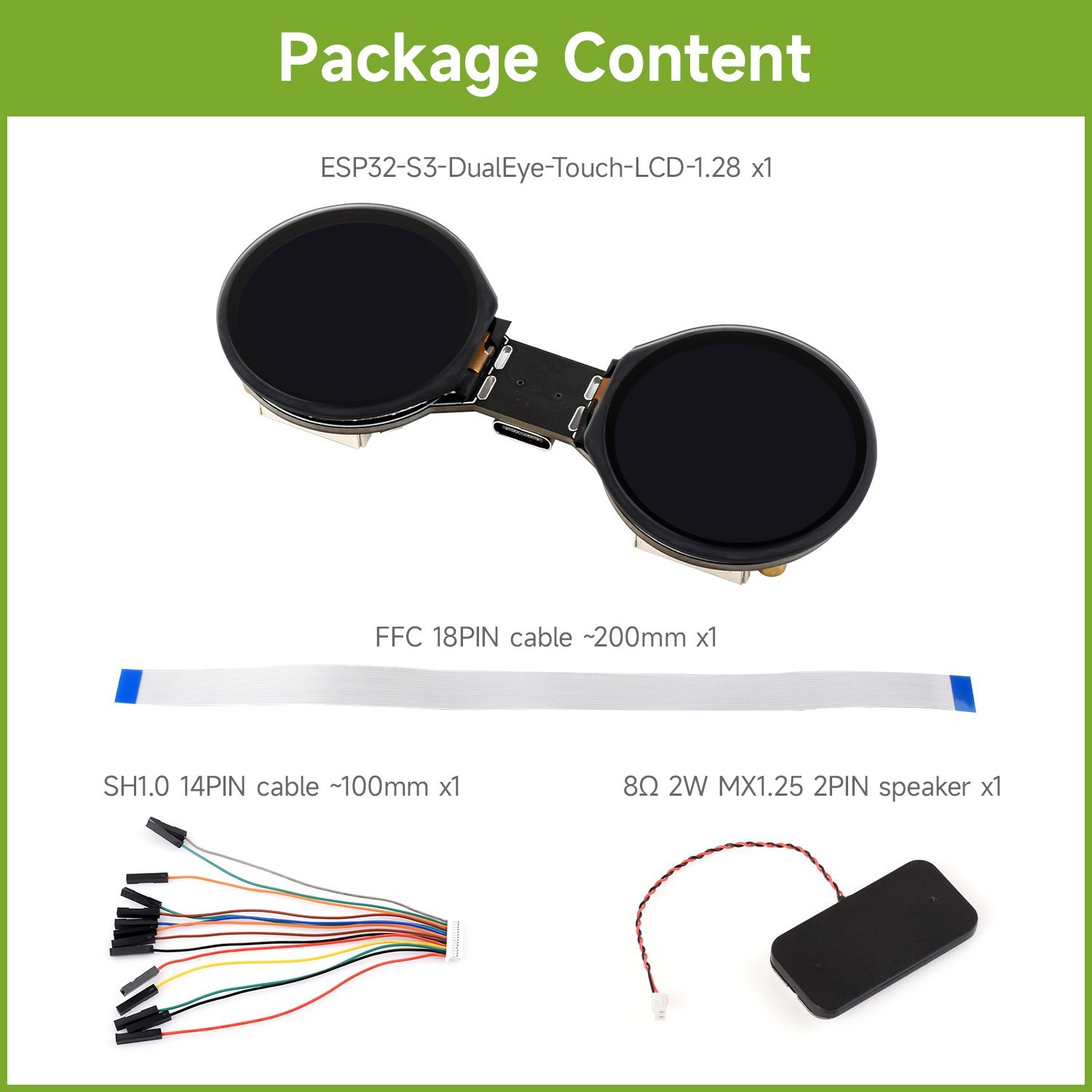

1 2 3 4 ESP32-S3-DualEye-Touch-LCD-1.28

1. SH1.0 14PIN cable ~100mm x1
2. FFC 18PIN cable ~200mm x1
3. 8Ω 2W MX1.25 2PIN speaker x1

1 2 3 4
