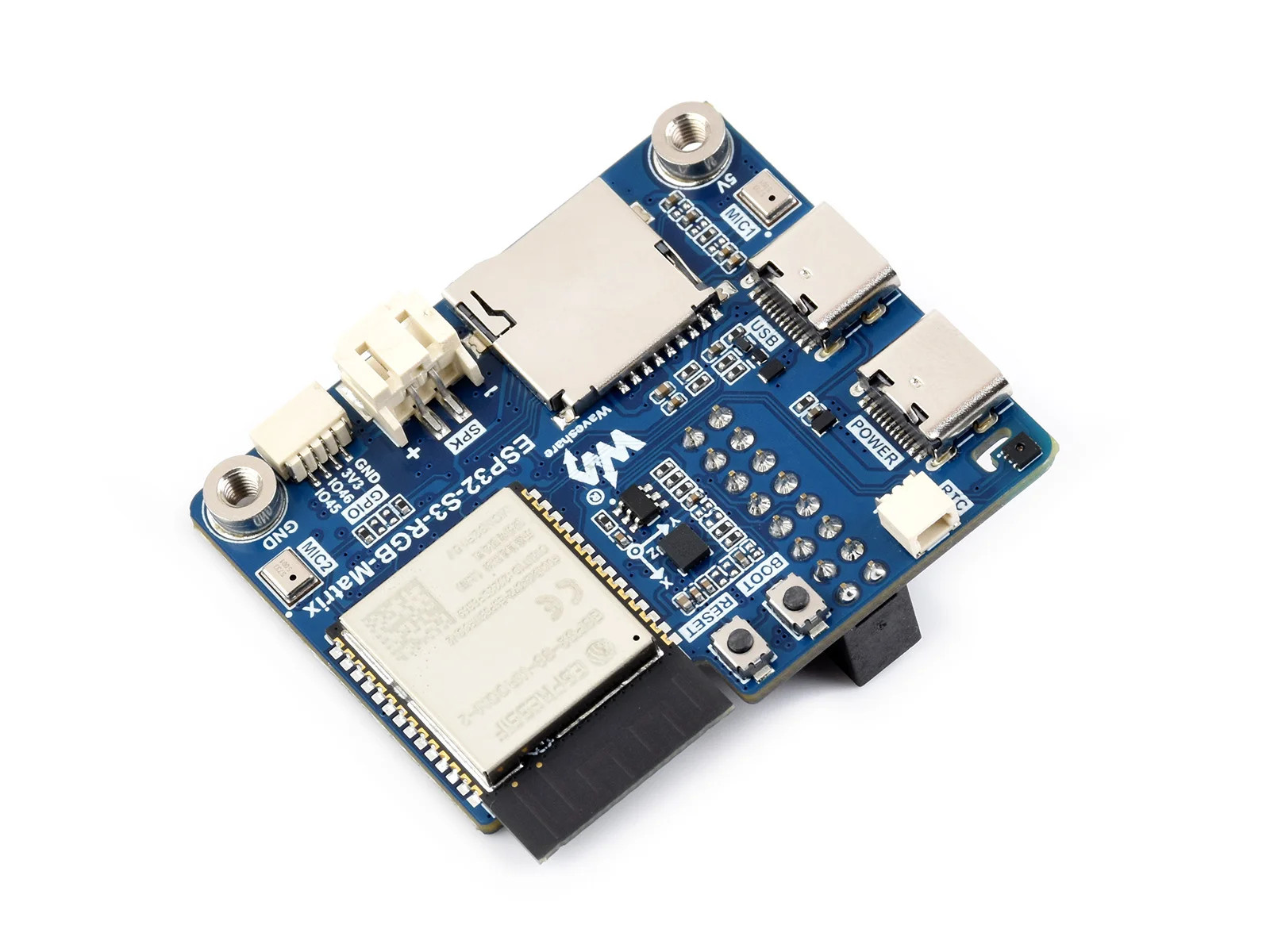

Waveshare ESP32-S3 RGB Matrix Driver Board 🎛️

Dual Microphone Array • WiFi & Bluetooth 5 • HUB75 Interface

Overview

This Waveshare ESP32-S3 RGB Matrix Driver Board is built for driving HUB75 RGB LED matrix panels with onboard dual microphones for audio-reactive projects. Powered by the versatile ESP32-S3 chip, it supports 2.4GHz WiFi and Bluetooth 5 (BLE) connectivity, making it ideal for smart displays, audio visualizers, and educational electronics projects.

Key Features🎤 Dual Microphone Array

Onboard dual mics enable audio capture and sound-reactive display applications.

📶 WiFi & Bluetooth 5

Built-in 2.4GHz WiFi and BLE 5 for wireless connectivity and remote control.

🖥️ Multi-Resolution Support

Drives panels at 64x64, 64x32, 80x40, and 96x48 resolutions via HUB75 interface.

⚡ Reliable Power Handling

5V input with up to 10A maximum current rating for stable matrix TypeHUB75Power Voltage5VMax Current Rating10ASupported Resolutions64x64, 64x32, 80x40, 96x48Wireless2.4GHz WiFi, Bluetooth 5 (BLE)MicrophonesDual Onboard ArrayApplicationEducation & Learning, Maker ProjectsProduct ImagesFrequently Asked QuestionsQ: What panels does this support?

A: It drives standard HUB75 interface RGB LED matrix panels at 64x64, 64x32, 80x40, and 96x48 resolutions.

Q: Does it include microphones?

A: Yes, it has an onboard dual microphone array for audio-reactive applications.

Q: What wireless connectivity is supported?

A: It includes 2.4GHz WiFi and Bluetooth 5 (BLE) for wireless communication.

Q: What power supply is needed?

A: The board operates on 5V with a maximum current rating of 10A.
