Description
GamePi13 1.3inch LCD Game Console For Raspberry Pi, 240x240 Resolution, Integrated ST7789 Driver Chip, SPI Communication 1.3" LCD Game Console for Raspberry Pi

Providing demos for Raspberry Pi / RP2040-PiZero

240 × 240 Resolution, Integrated ST7789 Driver Chip, SPI Communication

• Size1.3"
• Resolution240×240
• Display Color65K colors
• InterfaceSPI
• DriverST7789
• Audio Output3.5mm Jack
• SoundSpeaker
• Viewing Angle160°
• Display PanelIPS

Version Options

GamePi13
the game console expansion board only

GamePi13 3D Acce
with Acrylic case and prism cube
(the Raspberry Pi board is NOT included)

Features at a glance

• 1.3inch IPS screen with ST7789 driver chip, using SPI interface communication
• 65K color display screen, 240 × 240 resolution for clear display effect
• Onboard 12 × customizable buttons for convenient and smooth operations
• Comes with online development resources (demos for Raspberry Pi / RP2040-PiZero)

1.3inch IPS screen

Integrated with ST7789 driver chip, using SPI interface communication

Pinout Definition Connection Examples

Working with Raspberry Pi Zero 2W

Working with RP2040-PiZero

* for reference only, the above controller boards are NOT included

Multiple Game Buttons

Onboard 12 × game buttons for convenient and smooth operations

Button introduction Onboard Audio Output Unique 3D Visual Effect

Optional for prism cube, provides a transparent 3D effect and unique visual experience

* the Raspberry Pi board is NOT included, please refer to the Package Content for detailed part list

Application Scenarios

Portable game console

Supports multiple game simulators, and allows playing multiple classic games on a compact device.

Raspberry Pi project extension

Suitable for learning, development and testing Raspberry Pi projects, offering a variety of options for DIY makers.

Smart IoT device

Working with the Raspberry Pi or RP2040-PiZero, it can be used to build a portable display and interactive terminal, such as digital photo album, status monitoring device, and other applications.

Science fiction and art works

For projects requiring 3D visual effects, you can combine the transparent prism cube with LCD display to create a futuristic 3D visual effect, suitable for use in technology demonstrations and art works.

How to install

GamePi13 3D Acce kit

* the Raspberry Pi board is NOT included

Outline dimensions

GamePi13

GamePi13 3D Acce kit

Resources & Services

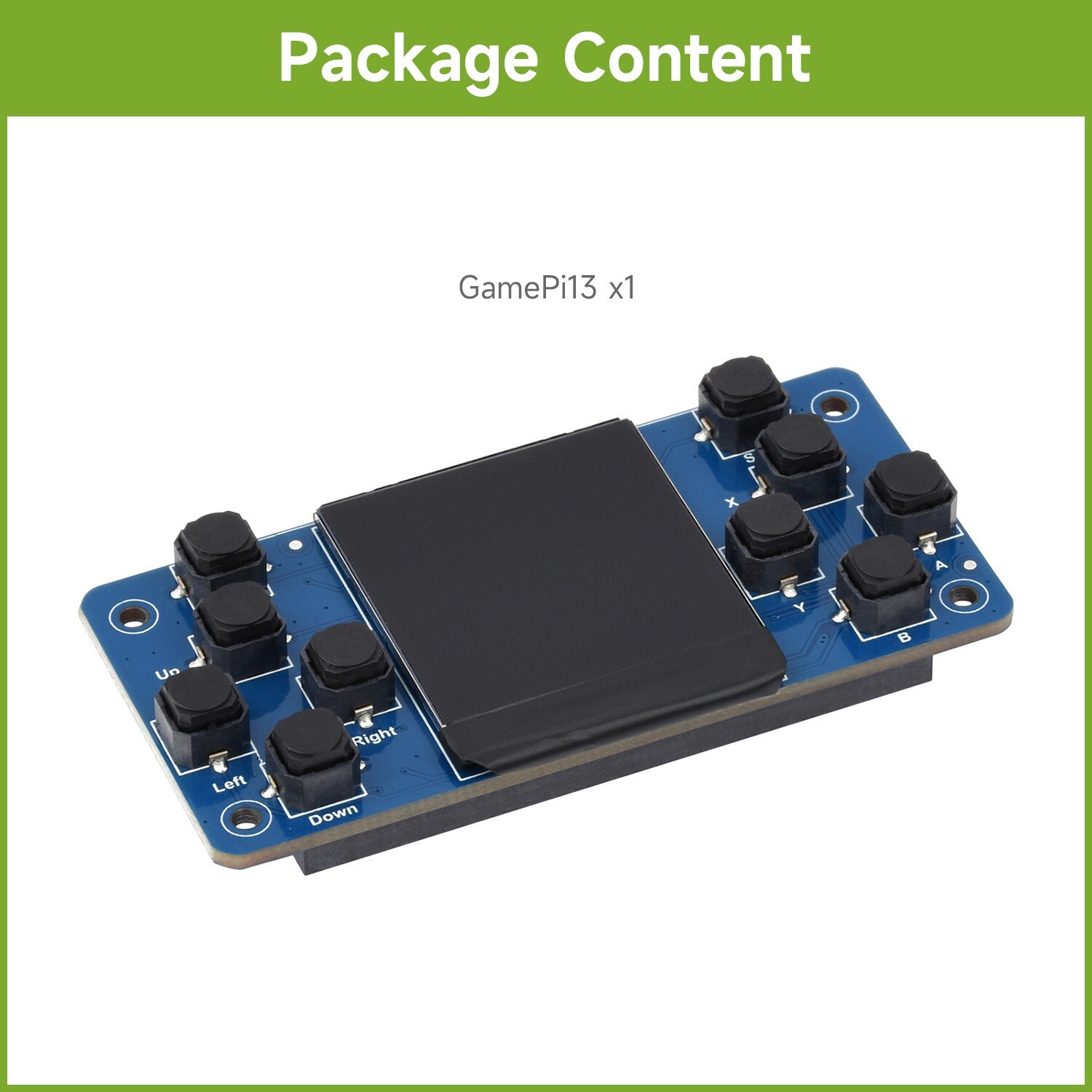

Package Content

Weight:0.089 kg

GamePi13

1. GamePi13 x1

1 GamePi13 3D Acce

1. GamePi13 x1
2. Prism cube x1
3. Acrylic case and accessories pack x1
4. Screwdriver x1

1 2 3 4
