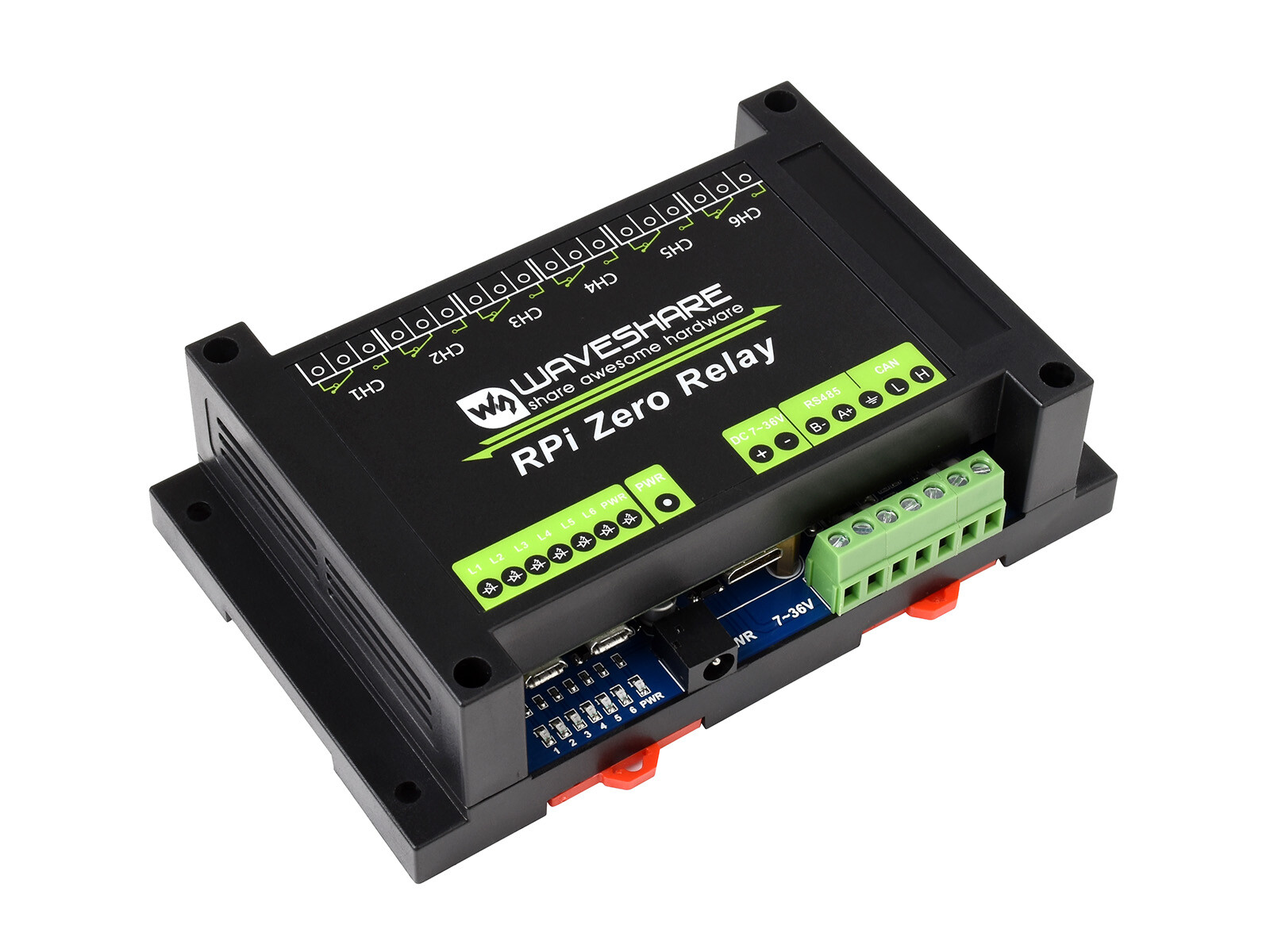

Industrial 6-Channel Relay Module For Raspberry Pi Zero, RS485/CAN Bus, Power Supply Isolation, Photocoupler Isolation Industrial 6-Channel Relay Module

Designed for Raspberry Pi Zero WH

RS485/CAN Bus, Power Supply Isolation & Photocoupler Isolation

Features At A Glance

• RS485 half-duplex communication: using SP3485, UART control, auto RX/TX switch
• CAN half-duplex communication: using MCP2515 + SN65HVD230 solution, SPI control
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
• Onboard resettable fuses and protection diodes, ensuring current/voltage stable output, preventing over current/voltage, better shock-resistance performance
• High quality relay, contact rating: ≤10A 250V AC or ≤10A 30V DC
• ABS protection enclosure with rail-mount support, easy to install, safe to use
• Comes with development resources and manual (wiringPi and python examples)

Specifications OPERATING VOLTAGE 7V~36V (industrial input voltage compatible) RELAY CHANNEL 6 ch COMMUNICATION PROTOCOL RS485, CAN CONTACT FORM 1NO 1NC Tailored For Raspberry Pi Zero Series

Suitable For Raspberry Pi Zero With Pre-Soldered Pinheader

Raspberry Pi Zero WHis NOT included. Enclosure Design

ABS Protection Enclosure With Rail-Mount Support, Easy To Install, Safe To Use

What's On Board

1. MCP2515
   CAN controller
2. SI8642ED-B-IS
   digital isolator
3. SN65HVD230
   CAN transceiver
4. SP3485EN
   RS485 transceiver
5. LM2596 voltage regulator
   providing stable 5V voltage
6. Photocoupler isolation
   prevent interference from external high-voltage circuit connected to the relay
7. 6-channel quality relays
   contact rating per channel: ≤10A 250V AC or ≤10A 30V DC
8. Power supply isolation
   provides stable isolated voltage, needs no extra power supply for the isolated terminal

9. Resettable fuses
10. TVS diodes
11. Relay and power indicators
12. 40PIN GPIO header
    suitable for Raspberry Pi Zero with pre-soldered pinheader
13. Relay screw terminals
    for connecting with user devices
14. Power supply screw terminals
15. RS485 bus interface
16. CAN bus interface
17. RS485 120Ω terminal resistor switch
18. CAN 120Ω terminal resistor switch
19. Relay control pins
20. External power supply jack
21. Thickened tracks
    allows large current devices

Pinout Definition Outline Dimensions PACKAGE CONTENT

Weight:0.327 kg

1. ABS protection enclosure (top and bottom) x1
2. RPi Zero Relay x1
3. Screwdriver x1
4. 12V 1A power adapter x1
5. Screws pack x1
