DESCRIPTION
Industrial Gigabit PoE Splitter, Options For 5V 5A Type-C / DC Power Output Port, Onboard MPS Control Chip, Safer And More StableIndustrial Gigabit PoE Splitter

Options for 5V 5A Type-C or DC power output port

Supports IEEE 802.3af/at-compliant Gigabit Ethernet

Version Options

POE-SPLITTER-25W-TYPE-C
Type-C Port Version

POE-SPLITTER-25W-5.5-2.1
DC Port Version

Features At A Glance

• Adopts MPS control chip solution, high-efficiency, high-safety, stable-performance
• 10/100/1000Mbps auto-negotiation Ethernet port
• Supports 802.3af/at-compliant PoE standard
• Adopts isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device
• 5V DC output, suitable for powering and networking Raspberry Pi and other small-scale network devices
• Black dull-polish metal case, sturdy and rugged, higher protection level, better heat SUPPLYsupports 1/2(+); 3/6(-); 4/5(+); 7/8(-) poweringPOE INPUT VOLTAGE37V ~ 57VPOWER OUTPUT5V 5A (MAX)CABLECat-5 UTPSTANDARDIEEE 802.3 af/at PoE EthernetDATA RATE10/100/1000MbpsLED INDICATORPoE power input indicatorDIMENSIONS102.5 × 29.6 × 24.8mm (L × W × H)OPERATING TEMPERATURE-40℃ ~ 85℃

  MPS Control Chip Solution

  High-Efficiency, Safer And More Stable




  Switching Mode Power Supply (SMPS)

  Isolated Circuit Protection, Effectively Protecting The Powered Device

  Industrial Grade Protection Case

  Aluminum Alloy Case, Sturdy And Rugged, Higher Protection Level, Better Heat Dissipation

  Application Examples

  Easy To Access PoE Switch For Powering The Raspberry Pi Or Other 5V-Powered Network Devices

  Usage Examples

  * for reference only, theRaspberry Piand switch are NOT included, please check the Package Content for the detailed part list.

  Outline Dimensions

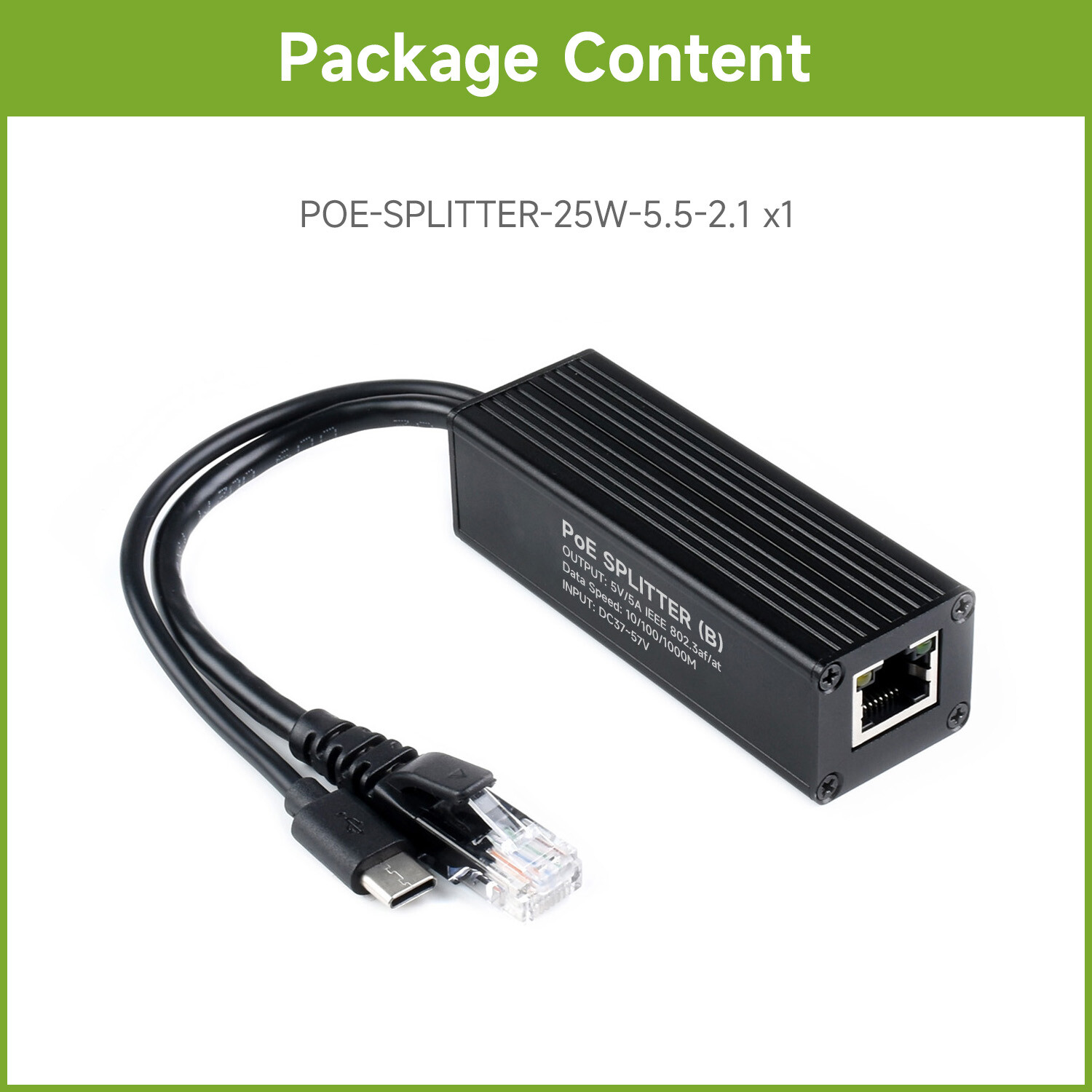

  PACKAGE CONTENT

  Weight:0.109 kg

  POE-SPLITTER-25W-TYPE-C

  POE-SPLITTER-25W-TYPE-C x1

  POE-SPLITTER-25W-5.5-2.1

  POE-SPLITTER-25W-5.5-2.1 x1
