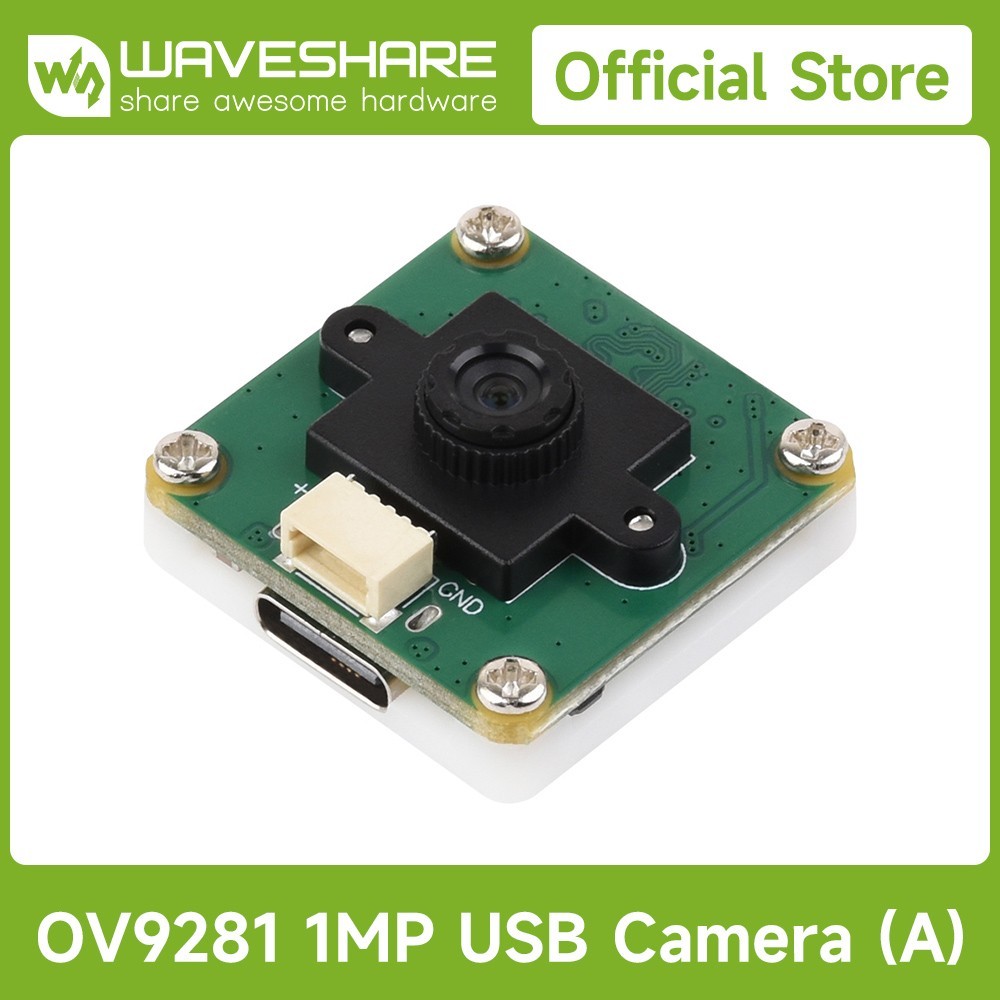

OV9281 1MP Mono USB Camera (A), Supports 120FPS High Frame Rate Recording, Global Shutter for Clearer Imaging OV9281 1MP Mono USB camera
1MP | Global Shutter | 120° FOV | 120 FPS Support
Specifications Pixels 1MP (mono) Sensor OV9281 Interface USB2.0 Type-C Camera Sensor size 1/4 inch Aperture (F) 2.2 Focal length (EFL) 1.65mm Field of view (FOV) 120° Distortion <10% Focusing Fixed-focus Mount M12 CONSTRUCTION without IR Filter Image Format support MJPG, YVY2 Static image resolution 1280 × 720 Video recording 120 FPS 1280 × 720
120 FPS 800 × 600
120 FPS 640 × 480 Dynamic range 52dB SNR 46dB Operating voltage 5V ± 5% operating temperature 0°C ~ 50°C Module size 25.00 × 25.00 (mm)
Connecting with USB cable
Connecting to Raspberry Pi 5
Connecting to Jetson Orin kit
Connecting to RDK X5 Development Board
* for reference only, theRaspberry Pi 5,Jetson Orin kitandRDK X5 Development Boardare not included
Global shutter, more clear imaging
the global shutter eliminates jello-effect while shooting fast moving objects
more suitable for high frame rate capturing
High Frame Rate Recording
Supports 120 FPS high frame rate recording to capture every dynamic scene detail
Pinout Definition
Onboard two types of connectors
Connecting via USB Type-C port
Connecting via 1.0mm pitch 4PIN connector
Outline dimensions Resources & Services
Package Content
Weight:0.018 kg
- OV9281 1MP USB Camera (A) x1
- SH1.0 4PIN dual plug cable x1
