Description

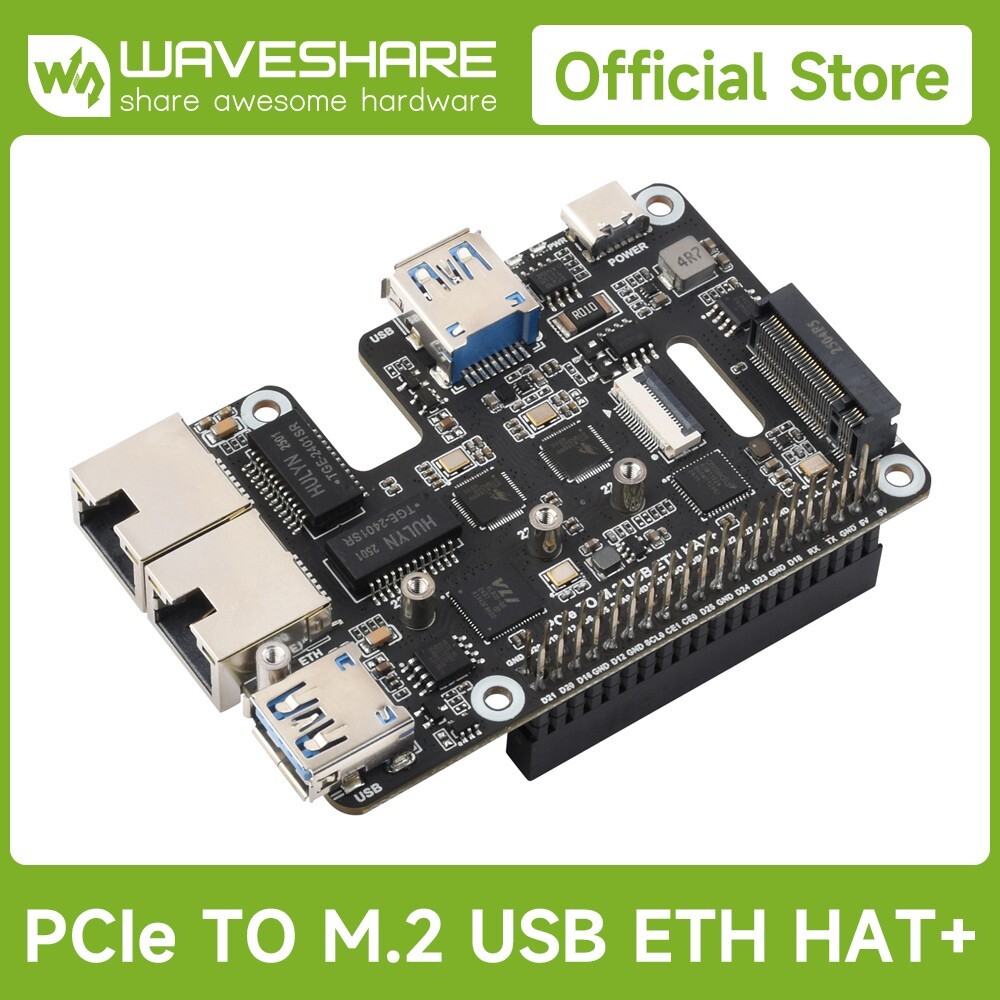

PCIe To USB 3.2 Gen1 / 2.5G ETH / M.2 NVMe Adapter For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, Expands 2-ch USB 3.2 Ports And 2-ch Ethernet Ports, High-speed Reading/Writing, HAT + Standard, Driver-free, Plug And PlayPCIe TO M.2 USB ETH HAT+

Designed For Raspberry Pi 5, driver-free, plug and play

Dual 2.5G Ethernet Ports | Dual USB 3.2 Ports | M.2 NVMe Slot

Connecting to Pi 5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

* for reference only, theRaspberry Pi 5is not included

NVMe Drive Protocol Support

Compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive
Supports Gen2 Mode, Supports Booting PI5 From Solid State Drive

NVMe Drive Slot Support

* Only supports the NVMe Protocol Solid State Drives.

Onboard 2-channel USB 3.2 ports

Extends The PCIe Interface To 2-ch High-Speed USB 3.2 Gen1 Ports for connecting
more peripherals

Extends 2-channel 2.5G Ethernet ports

Onboard RTL8156B high-performance Gigabit ETH chip, sinking design of network port, neat and beautiful

* for reference only, theRaspberry Pi 5is not included

Improves reading/writing speed of your Pi

Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive

* for reference only, theRaspberry Pi 5and Solid State Drive are not included.

Onboard Dual LED Indicators

Easy to monitor the Working Status

Onboard Power Monitoring Chip And EEPROM

Real-time monitoring of Solid State Drive power status for More Stable operation

How to install

Attach the thermal tapes first, then install the Official Active Cooler and fix the HAT

* for reference only, please refer to the Package Content for the detailed part list.

Outline dimensions
Package Content

Weight:0.04 kg

1. PCIe TO M.2 USB ETH HAT+ × 1
2. 16PIN PCIe cable × 1
3. Screws pack × 1
