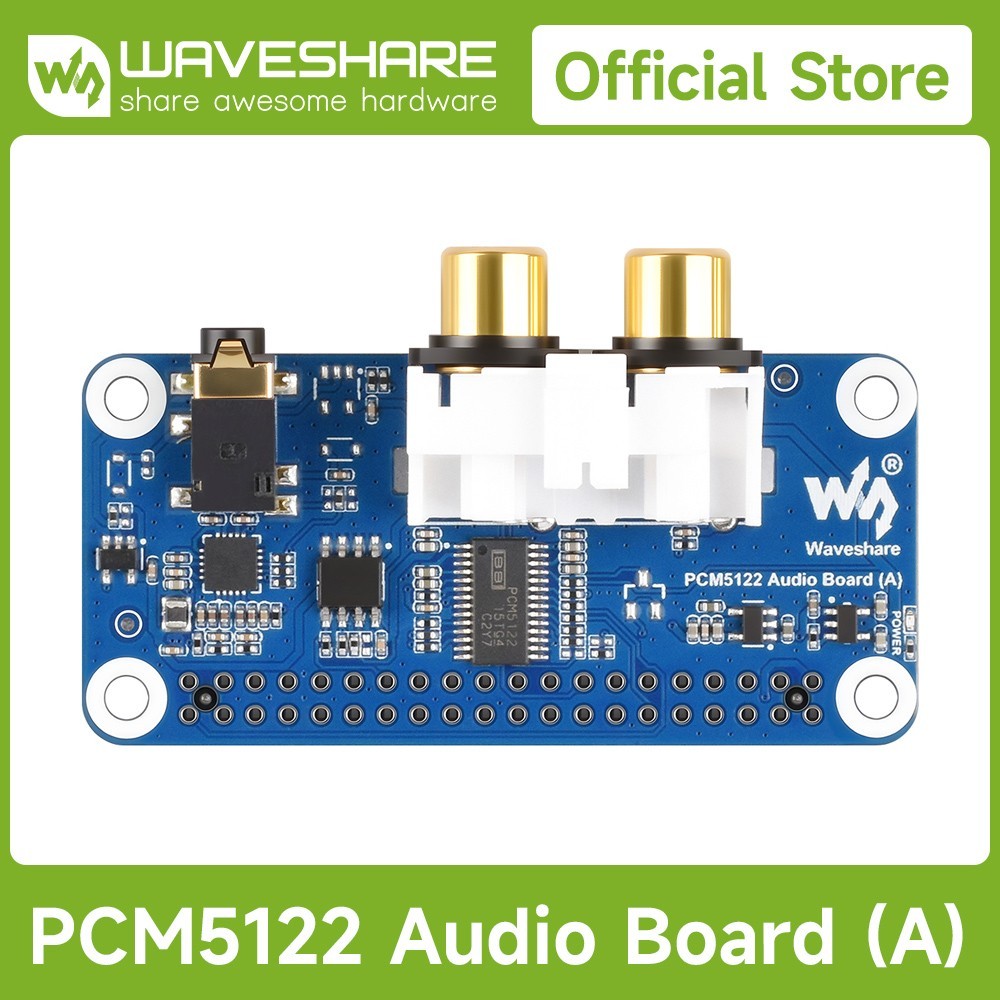

Waveshare PCM5122 HIFI I2S DAC Audio Board For Raspberry Pi Based On 40PIN GPIO

Price: CN $17.04

Description
PCM5122 HIFI I2S DAC Audio Board For Raspberry Pi, Based On Raspberry Pi 40PIN GPIO Header, Stereo Encoding/Decoding, Supports High-quality Audio PlaybackPCM5122 HIFI I2S DAC Audio Board
for Raspberry Pi

Supports Stereo Encoding / Decoding And High-quality Audio Playback

Features

Based on Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
Adopts PCM5122 professional stereo DAC chip, controlled through I2C, with audio transmitted via I2S interface
Onboard standard 3.5mm headphone jack, supports audio playback via external headphones
Built-in RCA connector for use with speaker and other devices in a variety of scenarios
Supports sampling frequency up to 384kHz
Supports up to 32-bit resolution audio data

Designed for Raspberry Pi

Based on Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards

* for reference only, please refer to the package content for detailed part list.

PCM5122 Audio Chip

Stereo decoder, controlled through I2C, with audio transmitted via I2S

Onboard Headphone Jack & RCA connector

Onboard standard 3.5mm headphone jack, supports audio playback via external headphones, and features RCA connector for connecting external speaker

Onboard EEPROM Chip

Used for automatic driver loading in Raspberry Pi OS

Pin definition
Outline dimensionsResources & ServicesPackage Content

Weight:0.008 kg
