DESCRIPTION

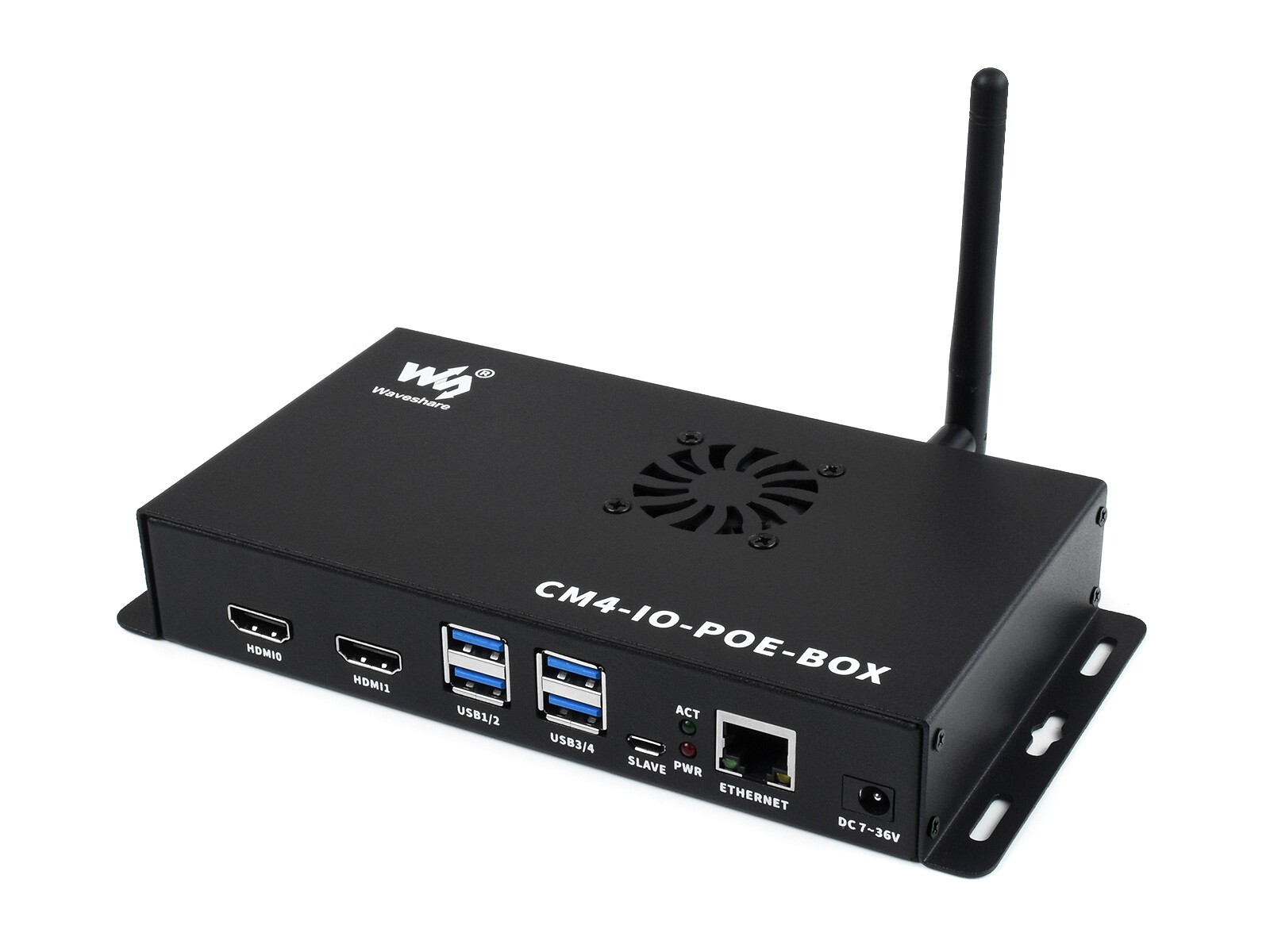

PoE Mini-Computer Based On Raspberry Pi Compute Module 4 (NOT Included), Metal Case, With Cooling FanPoE Mini-ComputerBased On CM4

Designed For Raspberry Pi Compute Module 4

Waveshare CM4 PoE IO Board Inside, Fast And Easy To Build A Mini-Computer

Waveshare CM4 PoE IO Board Inside

Make It Easy To Build Your Own Raspberry Pi CM4 Mini PC

for reference only, CM4 and antenna are NOT included.Comparing The Expansion BoardsCM4 BASE BOARDINTERFACE COUNT AND SPECIFICATIONSPOEGIGABIT
ETH40PIN
HEADERPOWER
INPUTFEATURES
NANO A√2.0×1×15VCM4 sized
NANO B×1√2.0×1×1×1×15VCM4 sized
NANO C√2.0×1×1×1×15VOnboard Camera
DUINOM.2 M2.0×1×1×15VArduino compatible
MINI BASE A×1√M.2 M2.0×4×1×2×25V5Vmini size
MINI BASE B×1√M.2 M2.0×4×1×2×2√5V5Vmini size
MINI BASE C×1√M.2 M2.0×2×1×2√5V5VDedicated 40PIN LCD Connector
TOUCH SCREEN×1M.2 M2.0×4×1×15VIPS screen
MINI DUAL GIGABIT×2√2.0×15V SH1.05Vdual ETH
BINOCULAR CAMERA×1√M.2 M2.0×4×25Vdual 8MP
cameras
4CH RS485×12.0×2×1×2×15V7-36Vdual ETH
WIFI6 DUAL ETH×1√M.2 E2.0×3×1×2×2×15/12V7-36VWIFI6 dual ETH
DUAL GIGABIT style="box-sizing: border-box;">IOT DUAL GIGABIT ETH×2√3.0×2×1×2×2√5/12V5V5G/4G support
IOT support
RS232
RS485
ADC
POE BASE style="box-sizing: border-box;">RS485
POE UPS BASE√×1√M.2 M2.0×4×1×2×2√5/12V7-36VUPS
POE style="box-sizing: border-box;">RASPBERRY PI style="box-sizing: border-box;">WIRELESS BASE×1M.2 B /
7-36V5G/4G support
RS485
CAN
rail-mount
5″ TOUCH SCREEN②×1√M.2 M2.0×4×1×2√5/12V5V
7″ ALL-IN-ONE×1M.2 M2.0×4used×1used√5/12V
used7-36Vtouch screen
camera
speakerNOTE① USB 3.0 is equivalent to USB 3.2 Gen1
② There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature.
Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).Rich Peripheral Connectors

Onboard Connectors Including CSI/DSI/RTC/HDMI/USB/ETH/TF Card

Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

Cooling Fan Included

Comes With Cooling Fan, Combined With The Airflow Vent, Better Heat Dissipation

Wall Mount Support

Wall Mount Holes On Two Sides, Handy For Mounting

Application Examples

Binocular Vision, PoE Powered Raspberry Pi Projects, Or Other Industrial Context

for reference only, display and cameras are NOT included.Outline Dimensions
PACKAGE CONTENT

Weight:0.639 kg

1. Metal case (top and bottom) x1
2. Compute Module 4 PoE Board x1
3. Fan-4010-PWM-12V x1
4. Screwdriver x1
5. Screws pack x1
6. OPTIONS12V 2A power adapter x1
