Waveshare Wireless MINIPCIE AX200 NIC Gigabit Dual-Band WiFi 6 802.11AX Standard For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

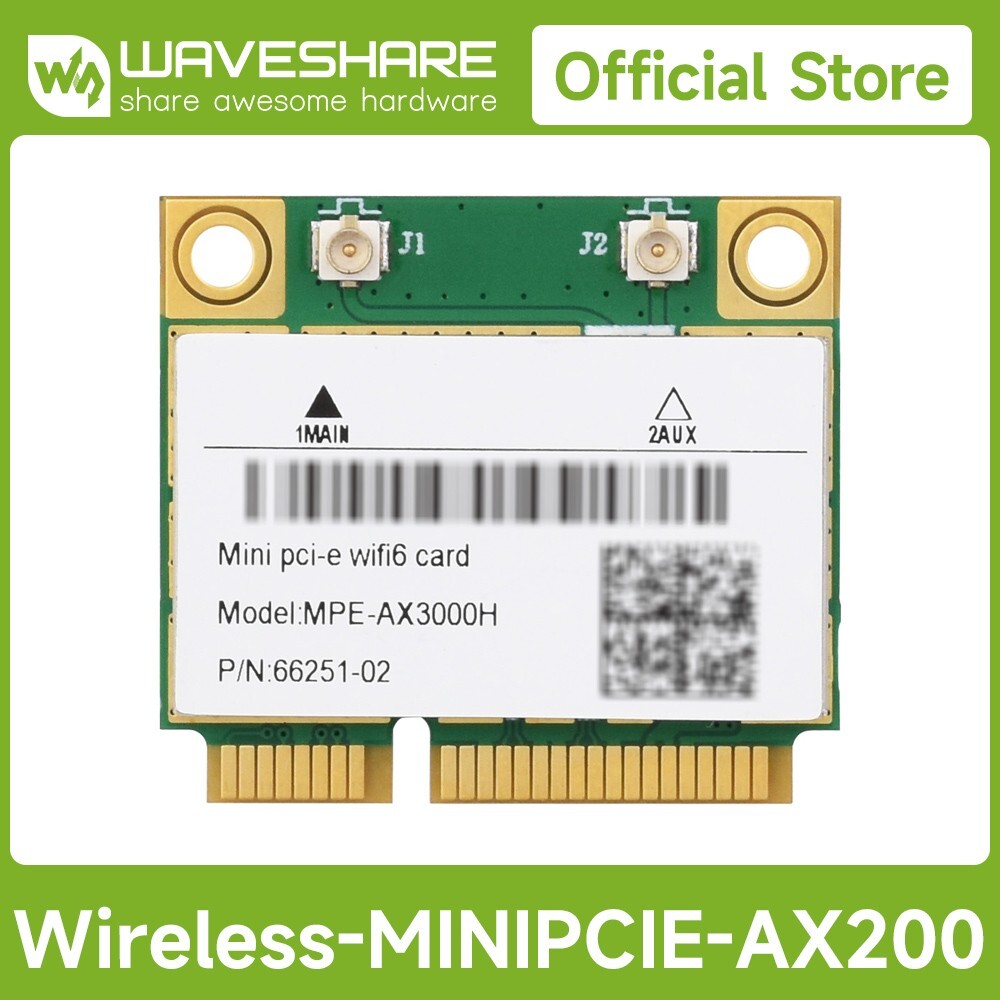

Waveshare Wireless MINIPCIE AX200 NIC Gigabit Dual-Band WiFi 6 802.11AX Standard

Price: CN $33.98

Description Wireless MINIPCIE AX200 NIC, Gigabit Dual-Band Wi-Fi 6, 802.11AX Standard, Bluetooth 5.2 Wi-Fi 6 Wireless MiniPCIe AX200 NIC

Dual-Band

Bluetooth 5.2

Wi-Fi 6

Features at a glance

Adopts sixth-generation 802.11AX Wi-Fi standard, provides better performance and compatibility than the previous generation 802.11AC, with lower power consumption and longer service life
Supports 2.4G / 5GHz dual-band, the speed up to 574Mbps in the 2.4GHz band and 2400Mbps in the 5GHz band
Supports Bluetooth 5.2 standard, longer transmission distance and better stability
Adopts MiniPCIe interface
Adopts the new generation of MU-MIMO wireless technology, provides better network quality, faster Network speed (more than three times), and higher transmission and download efficiency
Supports Linux, Windows 10/11, etc.

Parameters Comparison
Model
AX210
AX200
RTL8852BE Wi-Fi Version Wi-Fi 6E Wi-Fi 6 Wi-Fi Band 2.4GHz 5GHz 6GHz 2.4GHz 5GHz 2.4GHz 5GHz Wi-Fi Rate 574Mbps 2400Mbps 2400Mbps 574Mbps 2400Mbps 574Mbps 1200Mbps Interface MiniPCIe Interface Bluetooth Version 5.3 5.2 Technical Support MU-MIMO Antenna Connector IPEX-4 Connector System Support Linux, Windows 10/11 Dimensions 29.9 × 26.8 × 3.24 (mm)
AX200 High Performance Wi-Fi 6

Adopts sixth-generation 802.11AX Wi-Fi standard, provides better performance and compatibility than the previous generation 802.11AC, lower power consumption and longer service life

Dual-band Wi-Fi

Supports 2.4G / 5GHz dual-band, the speed up to 574Mbps in the 2.4GHz band and 2400Mbps in the 5GHz band

Bluetooth 5.2, More Stable Connection

Signal transmission is stable without lag, can be connected to Bluetooth devices such as mobile phones, computers, gamepads, etc. for wireless connection and transmission

Supports MU-MIMO Technology

Adopts the new generation of MU-MIMO wireless technology, compared with the traditional SU-MIMO mode, it provides better network quality, faster network speed (more than three times), and higher transmission and download efficiency

Interface Introduction
Access to antenna via IPEX connector
Outline dimensions Resources & Services
Package Content

Weight:0.052 kg
