-Specification-
SoC: Host MediaTek MT7981B (Filogic 820) Dual-Core Cortex-A53 Processor 1.3 GHz
Memory: 1GB DDR4
Storage: 256 MB SPI NAND Flash for U-boot and Linux systems
16 MB SPI NOR Flash for write-protected (default) recovery of the bootloader (reflash can be enabled via jumpers)
Using two types of flash devices makes the board virtually indestructible
M.2 2242/2230 interface support for NVMe SSD drives (PCIe gen 2 x1)
Network:
1 x 2.5GbE RJ45 port
1 x Gigabit RJ45 port
Dual-band WiFI 6 wireless network supported by MediaTek MT7976C (2 x 2 2.4 GHz + 3 x 3/2 x 2 + zero-wait DFS 5Ghz)
3x MMCX Antenna Interface
USB interface:
1x USB 2.0 Type-A Host Port
USB Type-C (Device, Console) port using Holtek HT42B534-2 UART to USB chip
Expansion: MikroBUS expansion module socket
Debug: Console via USB-C port or 3-pin connector, 10-pin JTAG/SWD connector for host SoCs
Real-Time Clock: On-board real-time clock support
Other:
Reset and user buttons
Boot selector switch: NAND (normal) or NOR (recovery)
2x PWM LEDs, 2x Ethernet LEDs (GPIO driven)
EM6324 External hardware watchdog
Power supply: 15V USB-PD on USB-C port
Optional 802.3at/af PoE network power via Banana Pi RT5040 module
Size: 148 x 100.5 mm Compatible with Banana Pi BPI-R4 case design
-Package Content-

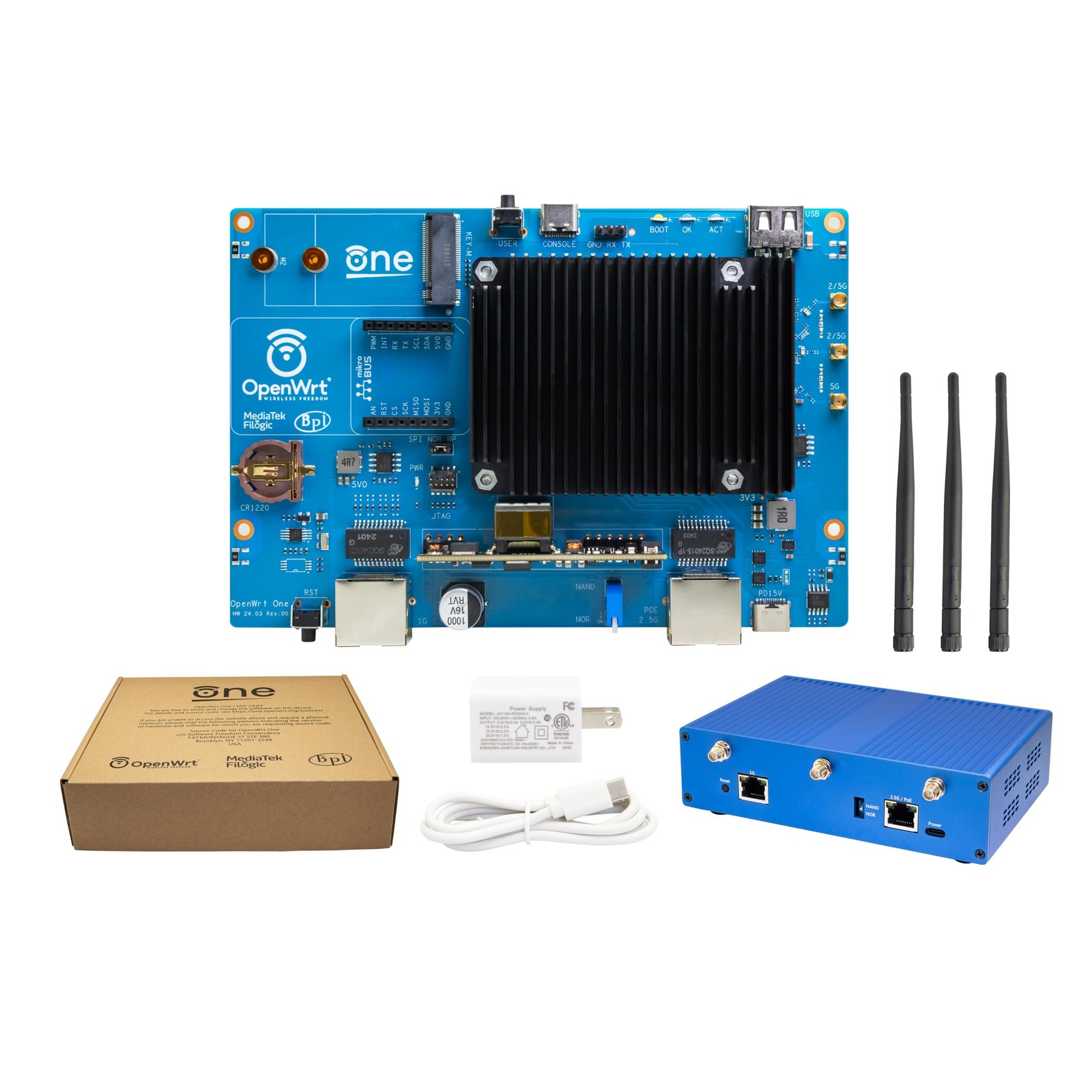

BPI OpenWrt One Wifi 6 Router Board x1
MetalHeat Sink x1
PD Power Supply x1
Blue Metal Case x1
Antenna x3
OpenWrt One/AP-24.XY Router Board is designed based on MediaTek MT7981B (Filogic 820) SoC and MediaTek MT7976C Dual-Band WiFi 6 Chipset, it is the official first development board for OpenWrt open source community. Widely used for Creator DIY, OpenWrt software learning and development, IoT applications, wifi6 wireless routing applications, Nas, network communication applications and so on.
The OpenWrt One router board is a MediaTek Filogic 820 SoC-based routing device with WiFi 6, dual-band, 3 x 3/2 x 2, 1 x 2.5G WAN network interface, 1 x Gigabit LAN network interface, on-board 1GB of DDR4 RAM , 256 MiB of NAND, 16 MiB of NOR, M.2 SSD interface and USB OpenWrt One also offers a USB 2.0 Type-A and a mikroBUS expansion port, providing additional interfaces for a wide range of technical possibilities.In addition, PWM is also supported in the application software.
The MediaTek MT7981B is a compact Wi-Fi system-on-chip (SoC) for IoT devices that includes an embedded TCP/IP stack. Using the MT7981B CPU, IoT devices can connect to other smart devices or cloud applications and services.Connectivity on the MT7981B is achieved using Wi-Fi in Wi-Fi station or access point (AP) mode.The MT7981B also provides five GPIO pins and one UART port. PWM is also supported in the application software.
The OpenWrt one router board is powered by MediaTek's MT7981B SoC featuring dual ARM Cortex-a53 cores running at 1.3 GHz with 1 GB of DDR4 RAM and 256 MB of SPI NAND storage, and integrates an additional 16 MB of protected memory for system backup. An integrated M.2. 2230/2242 NVMe PCIe 2 X1 port can be used to add external storage.
[After-sales Service] Getting Started or SDK Document: "openwrt.org/inbox/toh/openwrt/one". All technical, after-sales and bulk orders questions, please leave the message to “WayPonDEV” store and ask the question.
