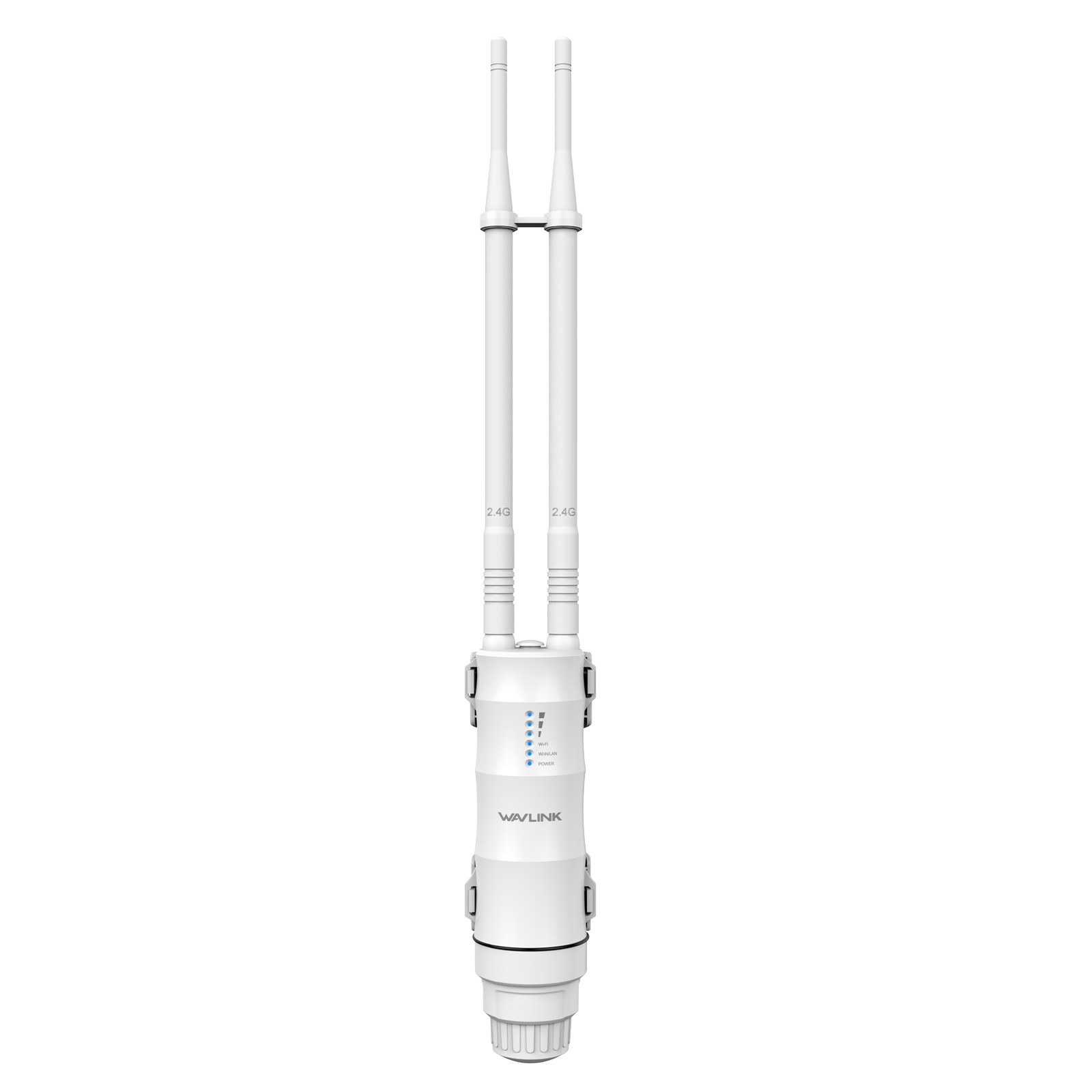

N300, 2.4Ghz
Power Over Ethernet:Integrated Power over Ethernet (PoE) enables power and network
data connections to be consolidated into a single RJ-45 cable, allowing installation in areas
without power outlets. It is equipped with passive PoE and also supports active PoE.
You can use and connect your own active switch.
IP67 Rated Weatherproof Case: The IP67-rated weatherproof and heat-resistant enclosure
ensures continued operation in harsh outdoor environments, including extremely cold,
hot or constantly humid climates. It can withstand a wide range of humidity and temperature
(-10°C to 50°C or -14°F to 122°F), and has 15KV ESD and 6KV lightning protection.
Multiple Working Modes: It supports four working modes. The repeater mode extends the
Wi-Fi coverage of an existing wireless network. Router mode creates an instant private wireless network,
enabling multiple devices to share it. AP mode converts a wired network to a wireless one.
AP+Repeater mode extends the range of a wireless network by using a repeater to amplify
and relay the signal from an access point.
Outdoor Access Point: It has a maximum coverage range of 150 meters, supports up to 32 devices,
and provides 2.4GHz, 300Mbps, high-speed, and 100M Ethernet ports. Simple settings enable wireless
optimization to improve the quality and effectiveness of link transmission. (Coverage may vary based
on the actual environment.)
Single-Band Range Extender: Powered by 802.11n Wi-Fi technology, you can enhance your existing
wireless coverage even in single-band range, providing speeds of up to 300Mbps on the 2.4GHz band.
This allows you to enjoy high-speed downloading of your games, videos, and other files even in public areas.
Specification
1.Model: WL-WN570HN2-B
2.Ports: 1 x WAN/LAN 100Mbps
3.Button: 1 x Reset(8s); Status LED: 1 x Power, 1xWAN/LAN, 1 x WiFi , 3 x Signal
4.Power Supply: DC 54V/0.3A Power over Ethernet(Passive), DC 48V Power over Ethernet(Active)
5.Wireless Standard: IEEE 802.11 b/g/n
6.Frequency Band/Speed: 2.4GHz(300Mbps)
7.Antenna: 2 x 7dBi Omni Directional Antennas
8.Wireless Security: WPA-PSK/WPA2-PSK encryption
9.Unit Size(without antennas): 18cm x 5cm x 5cm/ 7.1in x 2in x 2in (L x W x H ); Antenna Length: 25cm/9.8in
10.Ethernet Cable Length: 100cm/39.4in
11.Power Adapter Cable Length: 120cm/47in
12.Operating Temperature: Temperature: 150m(Change with the Actual Environment)
In the Box
1x N300 Outdoor Access Point
2x 7dBi High-gain Antennas
1x RJ-45 Ethernet Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide
Warm Tips
1.The PoE converter is not waterproof, please install it indoors.
2.Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3.Please install the product 2-3 meters above the ground for better performance.
(WiFi 5) AC1200, 2.4Ghz/5Ghz, White/Green
1200Mbps Dual-Band Speed: Use the WAVLINK WING 12HP to dominate bandwidth-heavy environments with
split-scenario optimization. The 5GHz Band (867Mbps) is dedicated to 4K video surveillance feeds, while the 2.4GHz
Band (300Mbps handles 64-96 low-bandwidth IoT devices (smart irrigation sensors, RFID tags, POS systems) without congestion.
Blanket Every Acre with Mesh Network: Build a bulletproof WiFi blanket across vast homesteads with WAVLINK’s Everything Mesh Technology.
Seamlessly connect your farmhouse, barns, poultry coops, and distant irrigation hubs into one network. As you move from the kitchen to the yard,
from the stable to the farm, enjoy uninterrupted connectivity without drops or lags. Note: Max. 10 nodes supported(including the host device).
Industrial-Grade Signal Dominance: Powered by a high-power chip and 4x 7dBi antennas (2x 2.4GHz + 2x 5GHz),
this outdoor WiFi booster expands signal to 300m away per unit(Change with the actual environment), effortlessly linking barns, pastures,
and farmhouse basements. Engineered for outdoor scenarios, it juggles 64-96 devices simultaneously—
from GPS cattle collars and smart milking systems to 4K yard cams—without throttling.
Dual Gigabit Ports & PoE Freedom: Equipped with dual 10/100/1000Mbps Ethernet ports, the outdoor AP enables lightning-fast data
transfer rates and provides an extra wired connection possibility for flexible use. 54V Active/Passive PoE allows you to power the
device via Ethernet from 100m away, getting rid of risky outdoor wiring needed. Note: The PoE converter is not waterproof, please install it indoors.
Weatherproof Enclosure& Enterprise-grade Security: IP65 waterproof & heat-resistant case ensures continued operation on
harsh outdoor environments, withstanding broad ranges of temperature(-20°C~50°C), while 15KV ESD/4KV lightning protection prevents
damage in electrical surges. Supporting WPA2/WPA3-MIX and WPA/WPA2-Enterprise, this outdoor router is perfect for businesses,
organizations, and individuals requiring high-level security.
Fat/Fit AP Mode Flexibility: Under Fat AP Mode, the repeater works as a regular wireless AP, ideal for quick deployments without complex configurations.
Fit AP Mode unlocks centralized control via a WAVLINK AC Controller(sold separately), allowing large-scale management —
imagine updating firmware on multiple routers spanning 5,000-acre cattle ranches or balancing bandwidth for 10-villa eco-resorts from one dashboard.
Specifications:
- Model: WL-WN572HP3-B/WING 12HP
- Frequency: 2.4GHz & 5GHz, speed up to 1,200Mbps
- Interfaces: 1x 10/100/1,000Mbps WAN, 1 x 10/100/1,000Mbps LAN
- Antennas: 4 x 7dBi omni antennas
- Operation modes: Repeater, AP(FAT/FIT), Mesh Router, Mesh Extender
- IP65 Waterproof: 15KV ESD and 4KV lightning protection
- Security: WPA2-PSK, WPA1-PSK/WPA2-MIX, WPA3-SAE/WPA2-PSK, WPA/WPA2-Enterprise, Open.
- LEDs: 7 x status LED indicators
- Power adapter: 100-240V/50-60HZ; DC 54V(Active PoE and Passive POE)
- Support 802.3 AT/AF Active PoE and Passive PoE to supply power.
- Support Fat AP Mode.
- Support Fit AP Mode with WAVLINK AC controller.
- Distance: Outdoor 300m(Change with the actual environment)
- Unit Size(without antennas): 21.5cm x 6.2cm x 6.2cm/8.5x 2.4x 2.4in (L x W x H )
- Antenna Length: 25cm/9.8in
Warm Tips
1. The PoE converter is not waterproof, please install it indoors.
2. Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3. Please install the product 2-3 meters above the ground for better performance.
4. Select the wireless network with a signal strength greater than 70% to get the most reliable connection.
5. Under Mesh Mode, the repeater supports max. 10 nodes(including the host devices).
In the Box
- 1 x AC1200 Wireless Outdoor Access Point
- 4 x Omni Antennas
- 1 x RJ-45 Networking Cable
- 1 x Power Adapter
- 1 x PoE Converter
- 1 x Main Body Holder
- 2 x Cable Ties
- 1 x Screw Fittings
- 1 x Quick Start Guide
