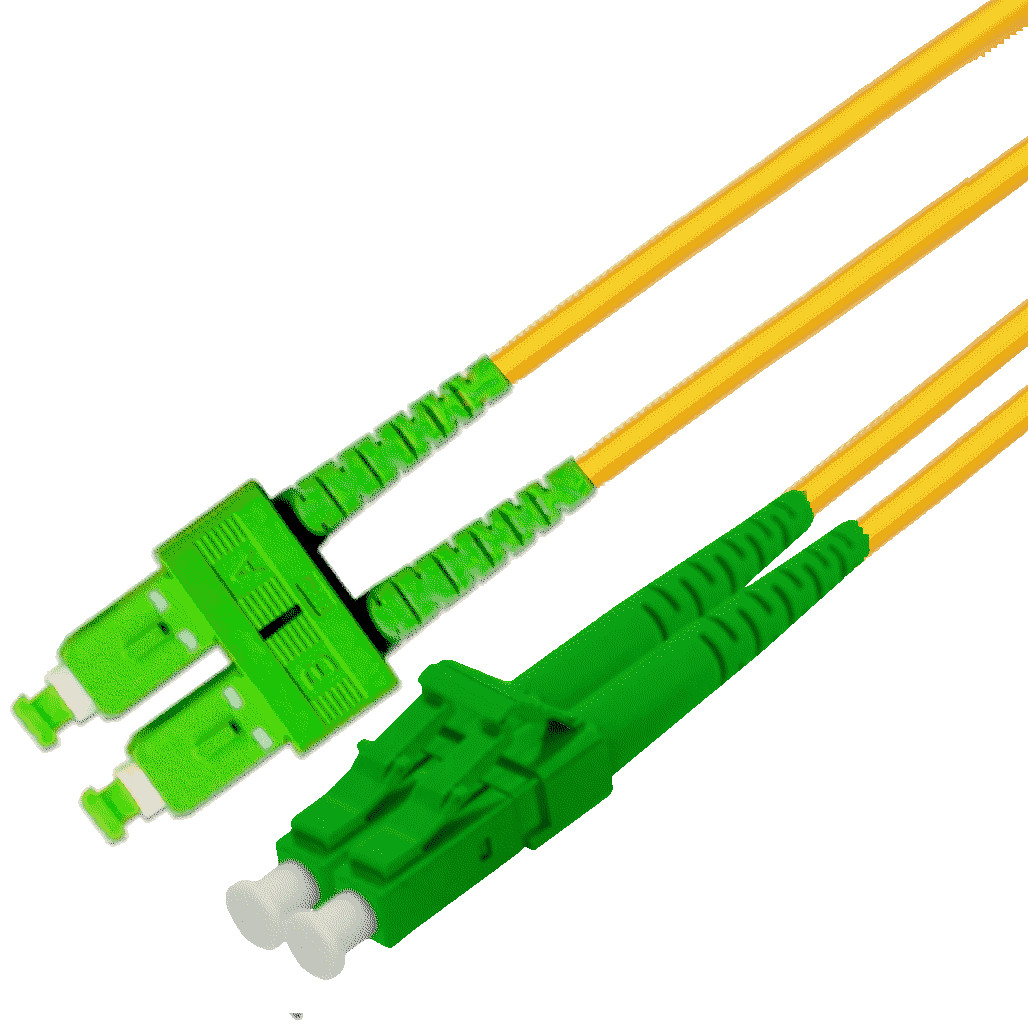

Wirewerks CPC-HELCASCA-001 1 Meter LC/APC-SC/APC Duplex Fiber Jumper
Price: US $15.99

Condition: New

Product Overview:The Wirewerks CPC‑HELCASCA‑001 is a 1-meter duplex singlemode patch jumper, featuring an LC/APC connector at one end and an SC/APC connector at the other. Designed for high-reliability fiber links in FTTH, CATV, telecom, or data center environments, this jumper uses OS2 9/125 µm bend-insensitive fiber and premium APC termination for superior insertion and return loss performance. It meets ANSI/TIA‑568, IEC, and Telcordia GR‑326 standards and is factory-tested for quality and traceability.

Features

  • Connector Types: LC/APC → SC/APC duplex configuration

  • Fiber Type: Singlemode OS2 (9/125 µm), bend-insensitive

  • Length: 1 m (approx. 3.3 ft) fan-out style without insertion loss (<0.2 dB typical)

  • High return loss (≥60 dB Certified to ANSI/TIA‑568‑C.3, IEC, Telcordia GR‑326‑CORE

  • Rugged Design: Zirconia ferrules, UL-rated housing, color-coded buffer tubes
