Description:
Wirewerks

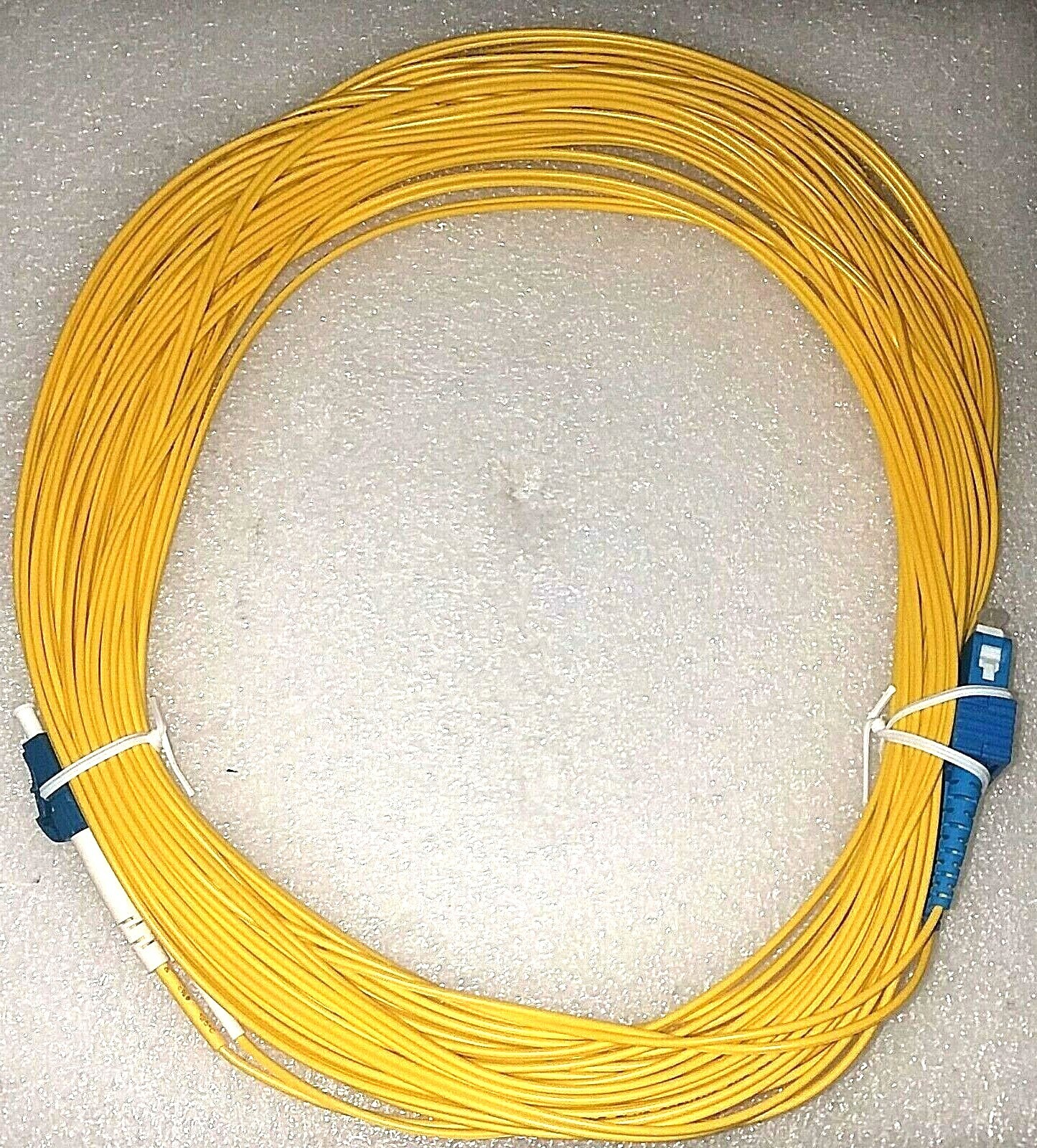

FOPC, OS2 B/I 2F Zip Ofnr, 1.6mm, LC/UPC-SC/UPC, 16 meters, Yel. Jkt;RoHS Compliant; Telcordia GR-326 Compliant;
RoHS Compliant-RoHSis a product levelcompliancebased on the European Union's Directive 2002/95/EC, the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment (RoHS).
Telcordia GR-326 Compliant-GR-326 is regarded as the most complete and rigorous standard for singlemode fiber-optic connectors. Issue 4 defines the latest requirements required of connectors used for joining singlemode optical fibers and for jumper assemblies made using such connectors.
FOPC- Fiber Optic Patch Cord-fiber-optic patch cordis afiber-optic cablecapped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, anopticalswitch or other telecommunication equipment. Its thick layer of protection is used to connect theopticaltransmitter, receiver, and the terminal box.
OS2 B/I 2f Zip- Singlemodecable features a 9-micron glass core.Duplexcable consists of twofibers, usually in a zipcord (side-by-side) style. Useduplexmultimode orsinglemode fiberoptic cable for applications that require simultaneous, bi-directional data transfer. ...Duplex fiberis available insinglemodeand multimode.
OFNR- Optical Fiber Nonconductive Riser-this is acable with only glass fiber with no copper conductiveelements. It is generallyintended for vertical runs between floors as part of a fiber backbone.OFNR cables has fire-resistance characteristics tested to UL-1666 "Standard Test for Flame Propagation Height of Electrical and OpticalFiber CableInstalled Vertically in Shafts."
LC/UPC Connector-LC stands for Lucent Connector and is a miniaturized version of the SCconnector, half its.size of 1.25mm ferrule. The upc is a connector that has been "ultra" polished with noangle.WithUPCconnectors, any reflected light is reflected straight back towards the light source. With the singlemode duplex cord, these connectors are blue, covering whitejacketed boots.
SC/UPC Connector-SC Connector-(StandardConnector, SubscriberConnector) A fiber-opticcable connectorthat uses a push-pull latching mechanism similar to common audio and videocables.The upc is a connector that has been "ultra" polished with noangle.WithUPCconnectors, any reflected light is reflected straight back towards the light source. These are blue in color covering white jacketed boots.
Part #TPC-EPLSCBSCB-016
