· Fully complies with 802.3, 802.3u, 802.3ab standards
· Complies with PCI Express Rev 2.1
· PCI-Express 1-Lane (x1) Interface
· Support IEEE 802.1p Layer 2 Priority Encoding
· Support IEEE 802.1q VLAN Tagging
· Support Half/Full Duplex mode and 802.3x Flow Control
· Support 10/100/1000Mbps NWAY Auto Negotiation
· Support Jumbo Frame to 9K bytes
· Support ACPI, PCI power management
· Support power down / link down power saving
· Transmit / Receive on-chip buffer support
· Wake-on-LAN and remote wake-up support
· Crossover Detection & Auto-Correction
· LED indicator for monitoring Link/Act
· Support Standard and Low-Profile Chassis
32-bit PCI Express (PCIe x1)
4 * 10/100/1000Mbps RJ-45 port, Auto-Negotiation, Auto MDI/MDIX
RTL8111F + ASM1184e
Data Transfer Rate:
Ethernet: 10Mbps (Half-Duplex); 20Mbps (Full-Duplex)
Fast Ethernet: 100Mbps (Half-Duplex); 200Mbps (Full-Duplex)
Gigabit Ethernet: 1000Mbps (Half-Duplex); 2000Mbps (Full-Duplex)
Network Media:
Flow Control:
LEDs:
FCC, CE
Package Content:

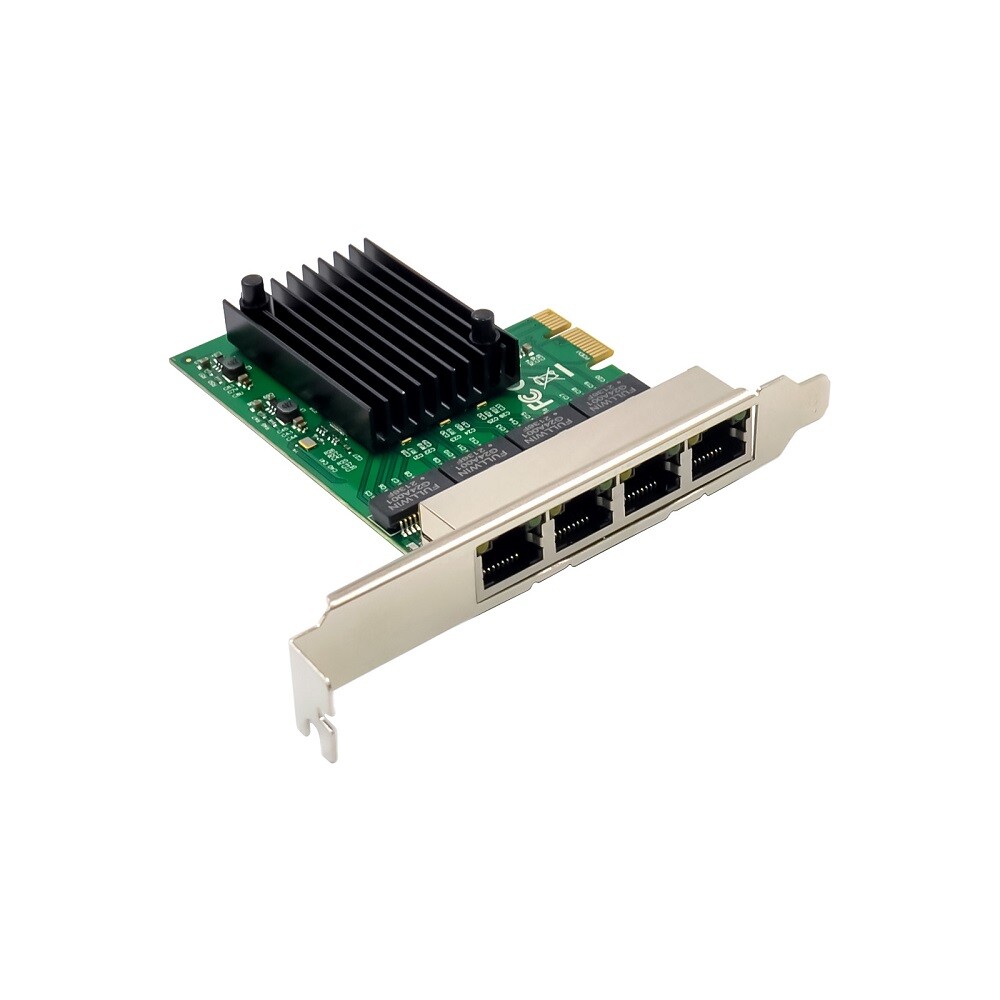

XM-NA3840 4-Port Quad Gigabit PCIe Network Adapter
CD Driver Disk w/User Guide
Low Profile Bracket
Supported OS:
Windows 2000 / XP / Vista / 7 / 8 / 8.1 / 10 / 11(32/64-bit);
Windows Server 2003 / 2008 / 2012 /2016 / 2019; Linux
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
