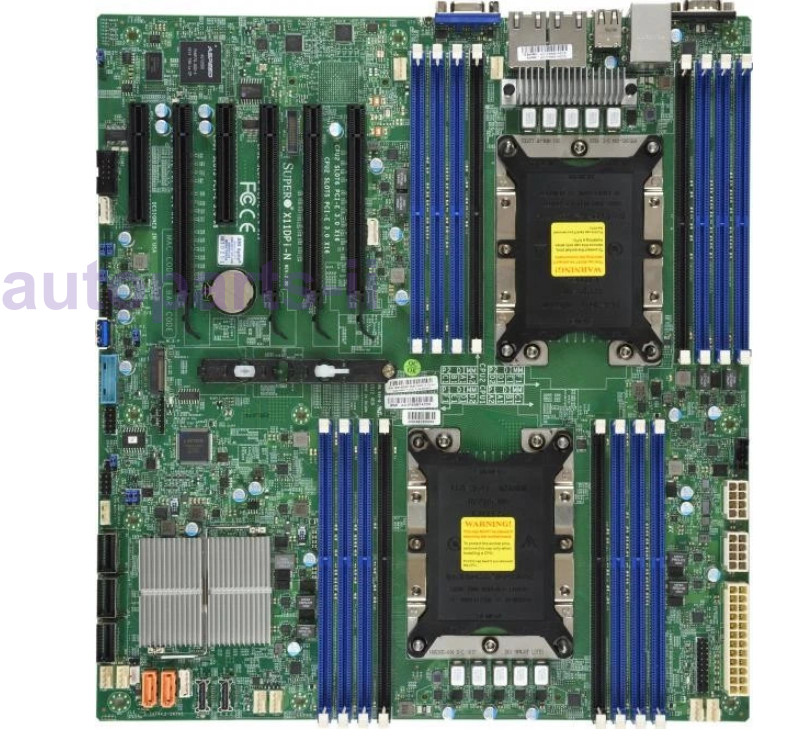

FOR Supermicro X11DPI-NT Motherboard With Intel Xeon Gold 6230 20 Core 2.10GHz CPU
Package include:
1XSupermicroX11DPI-NT
2xINTEL XEON GOLD 6230
Mainboard
Product SKUs
MBD-X11DPI-NT
Physical Stats
Form Factor
·E-ATX
Dimension
·12" x 13" (30.48cm x 33.02cm)
Processor
CPU
·2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
·Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
Core
·Up to 28 cores
Note
·BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
System Memory
Memory Capacity
·16 DIMM slots
·Up to 2TB Intel® Optane™ Persistent Memory 100 Series, DDR4-2666MT/s
·Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
·Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type
·2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
·LRDIMM: 128GB
·RDIMM: 64GB
Memory Voltage
·1.2V
Error Detection
·Corrects single-bit errors
·Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
·Intel® C622
SATA
·Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
·ASPEED AST2500
Graphics
·1 ASPEED AST2500 BMC port(s)
Network Controllers
·Dual LAN with 10GBase-T with Intel® X722 + X557
Input / Output
SATA
·14 SATA3 (6Gbps) port(s)
USB
·4 USB 2.0 port(s) (2 via header; 2 rear)
·3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
·2 USB 3.0 port(s) (2 rear)
Video Output
·1 VGA port(s)
Serial Port
·2 COM Port(s) (1 header; 1 rear)
DOM
·2 SuperDOM(Disk on Module) ports
TPM
·1 TPM Header
Expansion Slots
PCIe
·4 PCIe 3.0 x16,
·2 PCIe 3.0 x8
M.2
·M.2 Interface: PCIe 3.0 x4
·Form Factor: 22110, 2280, 2260
·Key: M-Key
