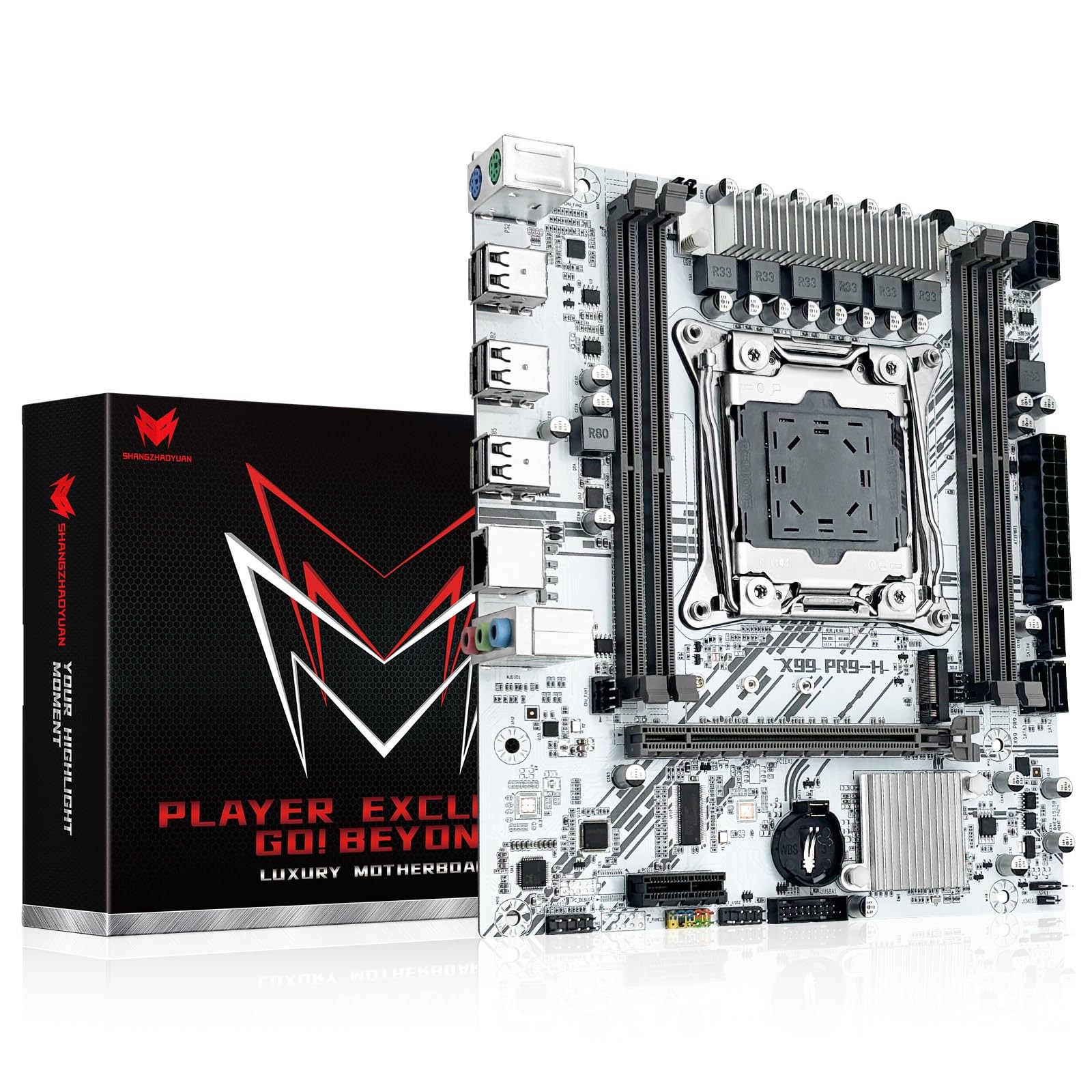

X99 LGA 2011-3 Server Motherboard for Intel E5 V3 V4 CPUs, support DDR4 RAM, NVME/NGFF M.2, PCIe X16, Gigabit LAN

X99 PR9-H1 Motherboard Specifications:

CPU Socket: LGA 2011-3
Compatible Processors: Supports Intel Xeon E5-XXXX-V4, Intel Xeon E5-XXXX-V3 and Intel Core i7 series CPU processors on LGA 2011-3 socket.

Memory Slot: 4 x DDR4 memory slots, supports up to 128GB(32GB*4)
Memory Type: Supports DDR4 2133/2400MHz desktop, ECC and RECC memory, and the frequency depends on your CPU.

Expansion Slots: 1 x PCIe 3.0 X16, 1 x PCIe 2.0 X1
Storage: 3 x SATA 2.0, 1 x M.2 slot (supports SATA(NGFF)M.2 or NVME M.2)
USB Ports: 8 x USB 2.0 (6 on rear panel, 2 on midplane)

Rear I/O Ports: 1 x PS/2 keyboard/mouse port(s), 1 x LAN(RJ45) port(s), 6 x USB 2.0, 3 x audio jack(s)

Internal I/O Ports: 2 x USB 2.0 ports, 1 x M.2 socket (SATA/NVME M.2), 3 x SATA 3Gb/s ports, 2 x CPU Fan Connectors (2 x 4-pin), 1 x 5V MOS Fan Connectors (1 x 2-pin), 1 x Front Audio Out Connector, 1 x 8-pin ATX 12V Power Connector, 1 x 24-pin EATX Power Connector, 1 x Front Panel Connector, 1 x Clear CMOS Jumper (1 x 2-pin), 1 x SPK Header (1 x 4-pin)

Motherboard Chipset: IntelHM55
LAN: Realtek 8111H 1000Mbps RJ45 Ethernet
Audio: Realtek ALC897 chip, 2.1 channels
Overclocking: Not supported
Power Supply: 6-phase power supply
Size: 215mm x 186mm x 40mm
Form factor: M-ATX

Applicable Hard Drive: Supports 2.5" SATA SSD, 3.5" HDD, MVME M.2 SSD, SATA M.2 SSD.
Enter BIOS: Turn on the computer motherboard and press the main key "DEL" continuously.
Quick boot key: F11 - Turn on the x99 Matx motherboard and press the F11 key continuously.
M.2 mode switching: Supports NVME M.2 or SATA(NGFF) M.2, default mode is NVME M.2;

Please Note:
This server motherboard can boot without installing a graphics card, but you cannot access the system.
The package does not include the user manual. Please download it from the product details page "Product guides and documents" if you need it.
The motherboard does not include a CR2032L battery, you need to buy the CR2032L battery yourself.

Packing list:
X99 PR9-H1 mainboard *1
CPU fan bracket *1
SATA cable *1
I/O shield *1
LGA 2011-v3 Motherboard: Supports full range CPU processors with LGA 2011-3 socket (such as Intel i7 Xeon E5 1620/1680/2666/2680/2696 V3, E5 1607/2630/2650/2680/2696 V4, etc.)
Dual Channel DDR4: The X99 server motherboard has 4 DDR4 RAM slots,supports DDR4 ECC/RECC/Non-ECC memory, dual channel and the maximum memory is up to 128GB (2133/2400MHz)
Game connectivity: The X99 Gaming mainboard is PCIe 3.0 capable, with NGFF/NVME M.2 slot, USB 2.0, PS/2, Gigabit LAN port and SATA 2.0 ports; and this placa base has the fastest speed of NVME M.2 slot (PCIe 3.0 x4) up to 3600M/S
Network & Sound Card: This X99 DDR4 motherboard has a Realtek 8111H 1000Mbps LAN port, Realtek ALC897 audio codec and 2.1 channel, which provides studio-grade sound quality for study, gaming and work
High-performance motherboard: 6-layer PCB M-ATX motherboard design; 24+8 pin DC power supply interface, strong heat dissipation, use of full solid capacitor and optimized circuit layouts enable stable power supply to CPU
DIY-Friendly: The Intel LGA2011-3 motherboard is convenient in a M-ATX case; pre-assembled I/O shield, CPU cooler bracket and a SATA cable are included. The user manual for the motherboard is not included, Please ask us on to get the manual file if you need
Warm Tips: If the white motherboard is DOA, cannot boot and has other problems, please let us know on so that we can help you. We recommend Driver Talent/DriveTheLife or Windows 10 system, which can help you solve all driver problems. The motherboard does not include a CR2032 battery, please purchase one yourself
