XCY Firewall Appliance Mini PC 🔒

Intel Celeron Quad-Core • 4x 2.5G LAN • Fanless Design

Overview

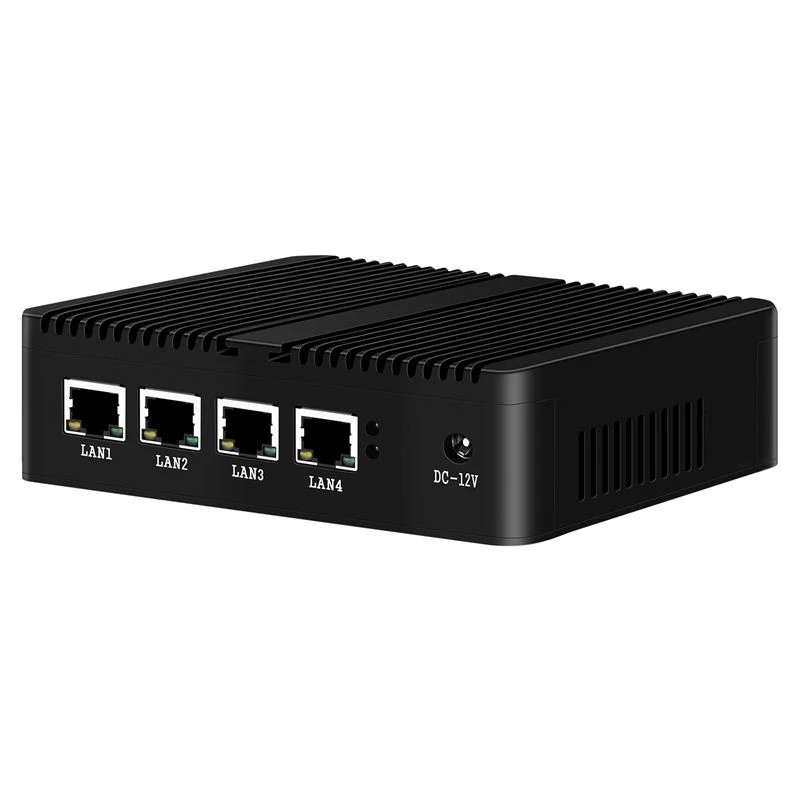

The XCY X30 Firewall Appliance is a compact fanless mini PC built for networking pros and home-lab enthusiasts. Powered by an Intel Celeron Quad-Core processor and equipped with 4x 2.5G Ethernet ports, it's perfect for building your own firewall, router, or VPN appliance using pfSense, OPNsense, or other supported operating systems.

Key Features🚀 Quad-Core Performance

Intel Celeron processor with 4 cores/4 threads, up to 2.42GHz turbo speed for smooth multitasking and routing performance.

🌐 4x 2.5G Network Ports

Intel i226V network card supports PXE boot and Wake-on-LAN for advanced network configurations.

🔇 Silent Fanless Design

Aluminum passive-cooling case ensures noiseless operation and low power consumption.

💻 Multi-OS Support

Compatible with Windows, Linux, Ubuntu, CentOS, ESXi, pfSense, OPNsense, and Celeron J1900, 4 Cores/4 Threads, 2.0GHz (up to 2.42GHz)MemorySODIMM DDR3L 1.35V, up to 8GBStorage1x mSATA SSD + support for extra 1x 2.5" SATA HDD/SSDNetwork4x Intel i226V 2.5G LAN, PXE & Wake-on-LAN supportUSB Ports1x USB 2.0, 1x USB 3.0Display Ports1x VGA, 1x HDMICoolingFanless passive cooling, aluminum caseDimensions135 x 129 x 40mmPower InputAC 100-240V, Output DC12V-3A (worldwide voltage support)Package Includes1x Mini PC, 1x AC Adapter, 1x Power Cord (US plug available), 1x User ManualProduct ImagesFrequently Asked QuestionsQ: Can I install pfSense or OPNsense directly?

A: Yes, this mini PC is designed to fully support pfSense, OPNsense, and other firewall/router operating systems.

Q: Does it come with WiFi?

A: No, WiFi is not pre-installed but the unit supports an optional Mini PCIe WiFi/4G LTE module expansion.

Q: What plug type comes with the power adapter?

A: A US-type power cord is available, along with worldwide 100-240V voltage compatibility.

Q: Is this fanless and quiet?

A: Yes, it features a fully fanless aluminum case for silent operation.
