High Quality ,Uncompressed, No delay

Fast shipping

Plug and Play, Easy to operate.

Features:

【Function】Extend 1/2/4/8 channels of XLR Balanced Audio of 16-bit digitally encodedbroadcast quality Audio over 1 single-mode(SM) or multi-mode (MM) optical fibercable. Undirectional (one way) and offerirectional (two way) is optional.

【Universal for Fiber Types】The extender can work on both singlemode and multimode. Longtransmission distance: SM(singlemode) up to 12.4 miles (20Km), MM (multimode) up to 200meters .Use SC UPC / PC connectors with SM and MM fiber cables.

【Crystal clear sound, No Loss, No Delay】Pure and Clean fiber optic audio signal transmission, 16-bitdigitally encoded broadcast quality. Compact design, Sturdy Metal. Bilateralheat dissipation. LEDs for power supply and optical fiber link statusindication can monitor the operating status of the system.

【Wide Applications】Typically used in applications for Staging, Theaters, Stadiums, Parks,Broadcast, studio audio and professional AV applications, etc., and areavailable for stand-alone and desktop type, or wall mounted, installations.

【Plug and Play】Noconfiguration or driver installation are required, Easy to use.

Bi-direction (two way) :

Uni-direction (one way) :

NOTE:

1. The default transmission distance is 20km.Please declare when ordering if longer distance is required for 40, 60, 80km.

2. Need 8 ports or Bi-directional 4 ports ,please access the listing ( item number:203523397434)

Specifications:

Fiber Optic Ports

• Wavelength:1310nm/1550nm

• Fiber:single fiber multimode (MM) or single mode (SM)

• Transmissionrange: 20km for SM, 200m for MM

• Opticalinterface: SC simplex (only 1 fiber needed)

• Opticalfiber type: 9/125u single mode, 50/125u or 62.5/125u multimode

• Outputpower: -14~ -8dBm

• Rxsensitivity: -30dBm

XLR Audio Ports:

• Numberof Channels: 1/2/4/8/16

• InputConnector: XLR (Female)

• OutputConnector: XLR (Male)

• Input/ Output Impedance: 10K Ohm

• Maxinput/output voltage: 3.0Vp-p

• FrequencyResponse: 10Hz～44.1KHz @±3dB

• SNR:> 70dB

General Spec:

• SupportVoltage: AC100-240V, DC5V2A, US standard Power Plug (default US, EU/UK/AUstandard is optional)

• PowerConsumption: ≤8W

• Workingtemperature: -20°C ~ +75°C

• RelativeHumidity: 0% ~ 95% (non-condensing)

• MTBF:>100,000 hours

• Installation:stand-alone

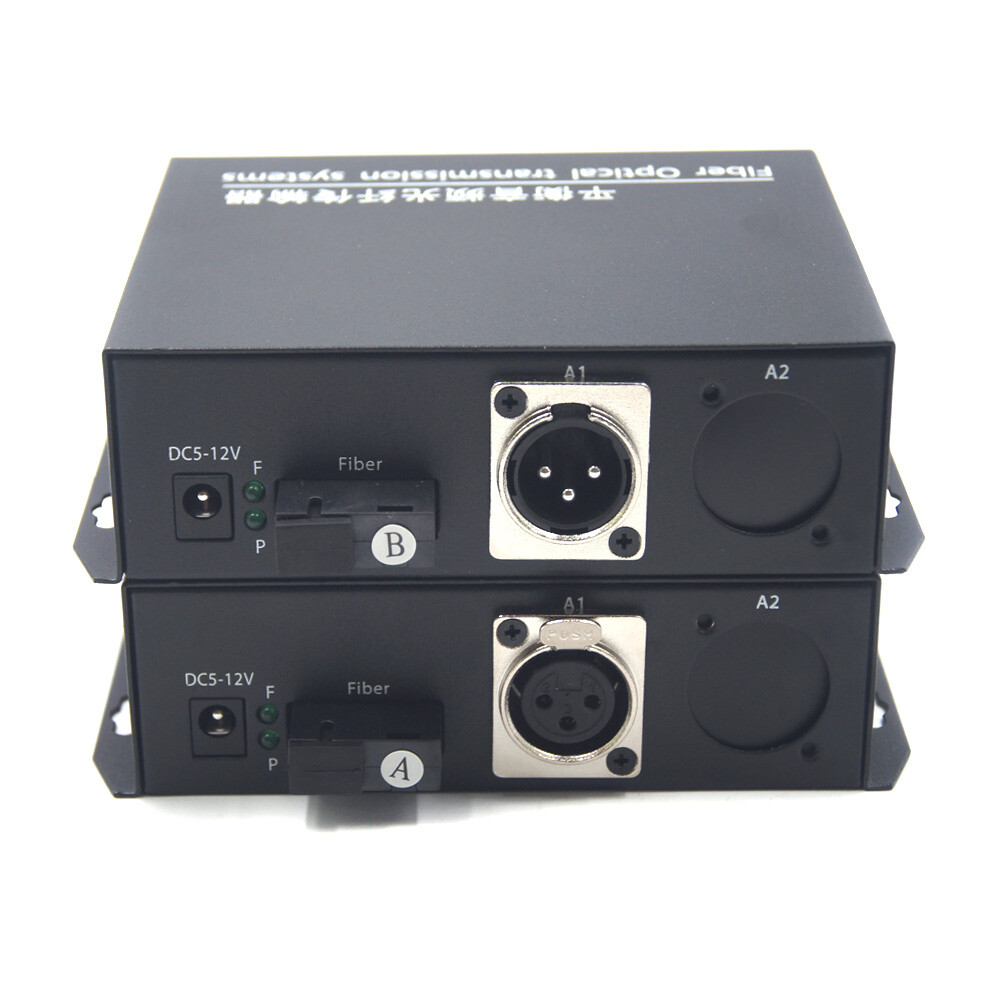

LED working indicator:

P: Power

ON: power on;

OFF: power off

F: Fiber optic

ON: Optical port works normally

OFF: Optical port works abnormally

Applications include:

• Concerts

• Churches,

• Sportevents

• linksfrom studio to the transmitter (STL)

• studioto studio

• studioto CATV head–end

• commoncarrier,

• RBOCTelco circuits,

• Distancelearning,

• IntelligentTransportation Systems

• back–haulfeeds from special events, And More.

Package include:

1x Balanced Audio to Fiber Transmitter

1x Balanced Audio to Fiber Receiver

2x Power supply adapter

1x Free 3M SC-SC single-mode fiber patchcord

1x Manual.
