Features:
【Function】Send 1/2/4/8 channelsXLR Balanced Audio of 16-bit digitally encodedbroadcast quality Audio over 1 single-mode(SM) or multi-mode (MM) optical fibercable. Bi-direction – XLR Audio signal is transmittedfrom T (Transmitter) in the direction of R (Receiver). Other channel are inopposite direction .Unidirection -XLR Audio signal is transmitted in the direction from T (Transmitter)toR (Receiver).
【Universal for Fiber Types】The extender can work on both singlemode and multimode. Longtransmission distance: SM up to 12.4 miles (20Km), MM 0.31 miles(500meters).Use SC UPC / PC connectors with SM and MM fiber cables.
【Crystal clear sound, No Loss, No Delay】Pure and Clean fiber optic audio signal transmission, 16-bitdigitally encoded broadcast quality. Compact design, Sturdy Metal. Bilateralheat dissipation. LEDs for power supply and optical fiber link statusindication can monitor the operating status of the system.
【Wide Applications】Typically used in applications for Staging, Theaters, Stadiums, Parks,Broadcast, studio audio and professional AV applications, etc., and areavailable for stand-alone and desktop type, or wall mounted, installations.
【Plug and Play】Noconfiguration or driver installation are required, Easy to use.

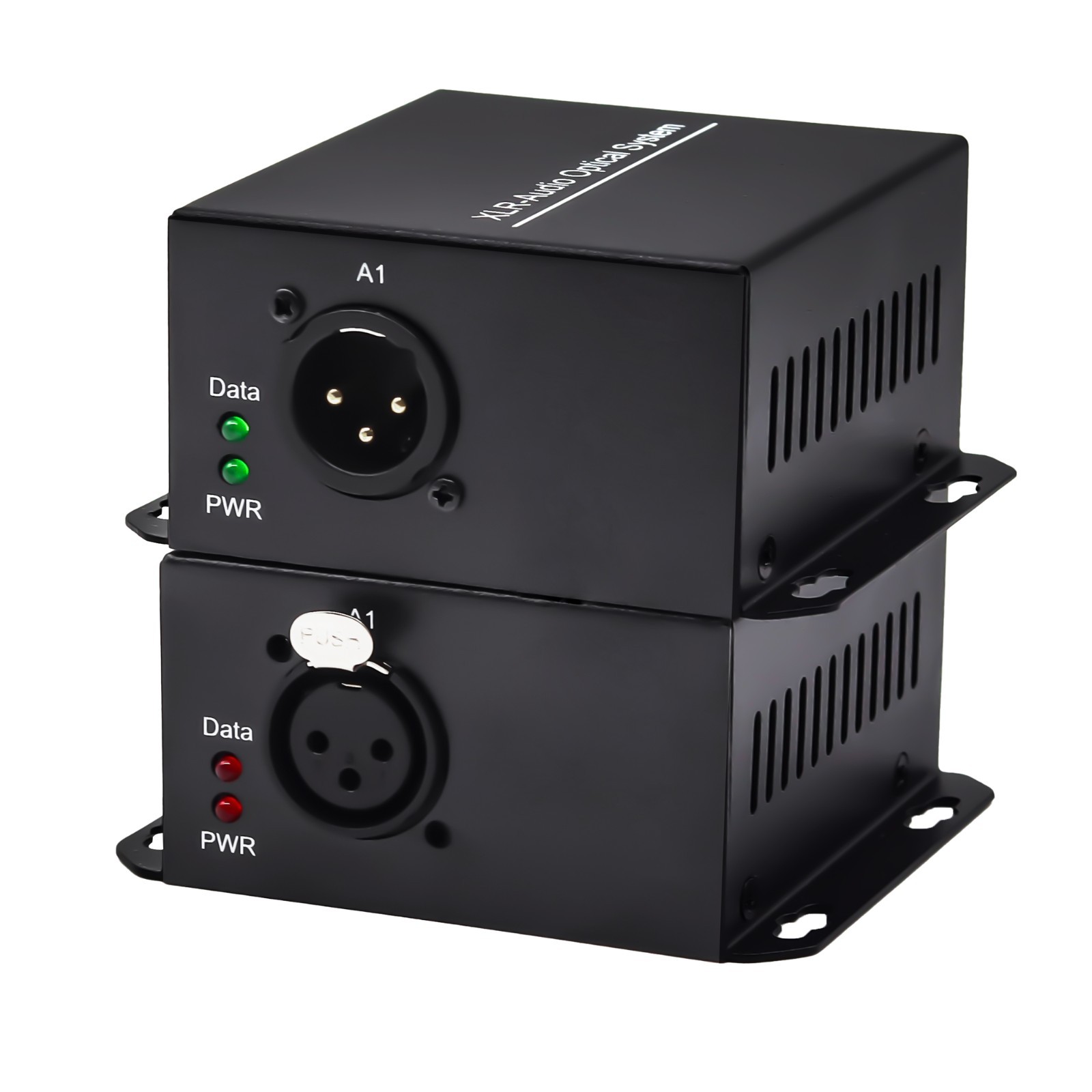

Description:
it is the HIFI professional Multichannelaudio over fiber optical transceiver with 3-PIN XLR interface, performshigh-quality 1~8 Channel HIFI audio transmission over an optical fiber cable.Fiber Optic Transmitter High Quality audio signals are converted to digitalsignals and then converted to optical signals for transmission. Fiber OpticReceiver does the photoelectric conversion from modulated light signal to theAnalog XLR signal to transfer over fiber.
Our Balanced Audio to Fiber OpticConverter/Extender is used for professional and extremely high-quality audiotransmission over the fiber with such a low signal to noice ratio that you'llbe blown away by the sound you get from analog sources.
The default transmission distance is 20km.Please declare when ordering if longer distance is required for 40, 60, 80km.
Specifications:
Fiber Optic Port:
• Wavelength:1310nm/1550nm
• Fiber:single fiber multimode (MM) or single mode (SM)
• Transmissionrange: 20km for SM, 500m for MM
• Opticalinterface: SC simplex (only 1 fiber needed)
• Opticalfiber type: 9/125u single mode, 50/125u or 62.5/125u multimode
• Outputpower: -14~ -8dBm
• Rxsensitivity: -30dBm
XLR Audio Ports:
• Numberof Channels: 1/2/4/8/16
• InputConnector: XLR (Female)
• OutputConnector: XLR (Male)
• Input/ Output Impedance: 10K Ohm
• Maxinput/output voltage: 3.0Vp-p
• FrequencyResponse: 10Hz～44.1KHz @±3dB
• SNR:> 70dB
General Spec:
• SupportVoltage: AC100-240V, DC5V2A, US standard Power Plug (default AU, EU/UK/US standard is optional)
• PowerConsumption: ≤8W
• Workingtemperature: -20°C ~ +75°C
• RelativeHumidity: 0% ~ 95% (non-condensing)
• MTBF:>100,000 hours
LED working indicator:
P: Power
ON: power on;
OFF: power off
F: Fiber optic
ON: Optical port works normally
OFF: Optical port works abnormally
Applications include:
• Concerts
• Churches,
• Sportevents
• linksfrom studio to the transmitter (STL)
• studioto studio
• studioto CATV head–end
• commoncarrier,
• RBOCTelco circuits,
• Distancelearning,
• IntelligentTransportation Systems
• back–haulfeeds from special events, And More.
Package include:
1x Balanced Audio to Fiber Transmitter
1x Balanced Audio to Fiber Receiver
2x Power supply adapter (default AU standard plug, US/EU/UK is optional)
1x Free 3M SC-SC single-mode fiber patchcord
1x Manual.
