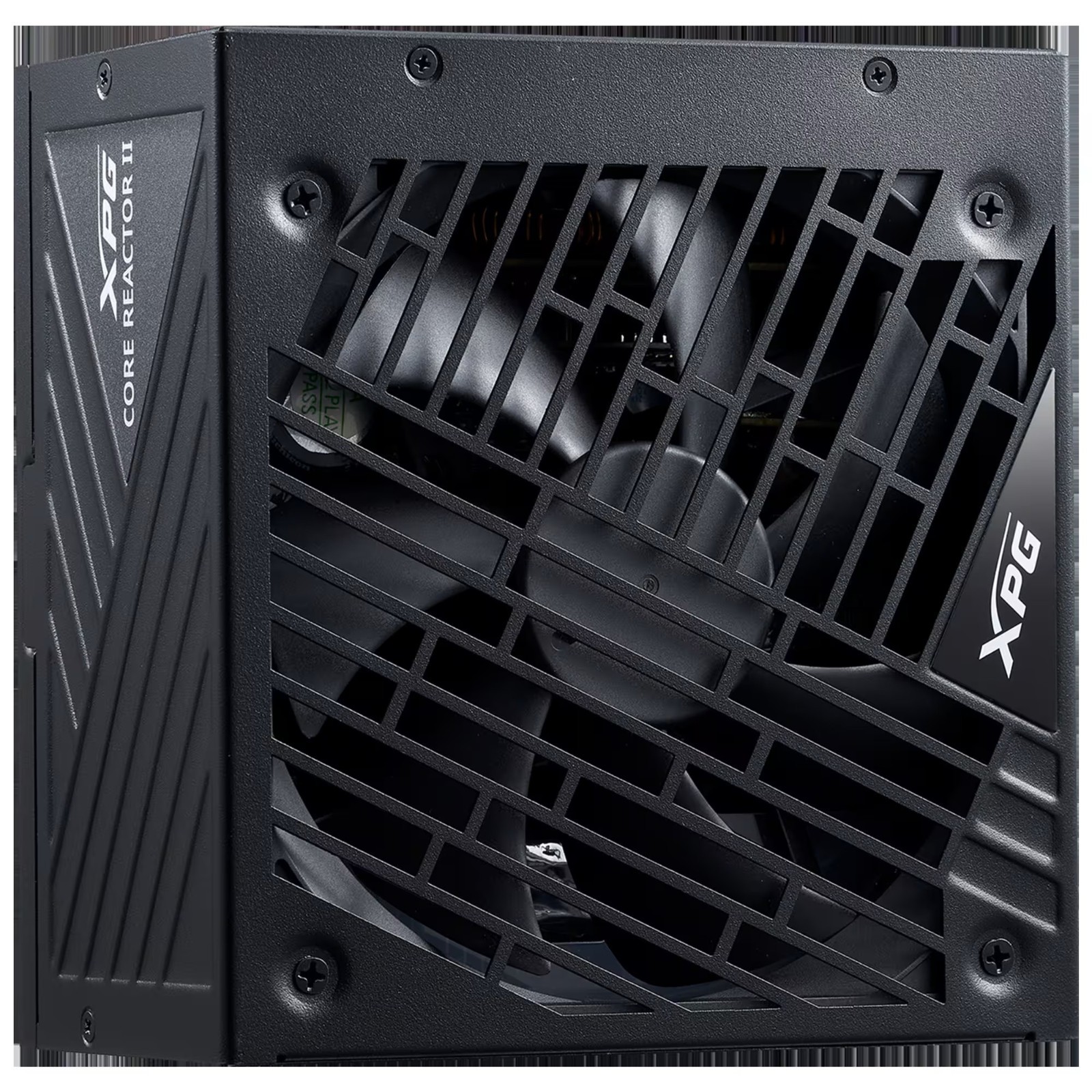

The XPG CORE REACTOR II 1000W 80+ Gold ATX 3.1 PSU is a high-quality power supply unit designed for computer enthusiasts. With a maximum power output of 1000W and a sleek black color, this modular PSU from ADATA is perfect for gamers and high-performance users. It features multiple connectors including 8 Pin 12V, 24 Pin, and 6+2 Pin PCI Express, making it compatible with a wide range of systems. The ATX form factor ensures a standard fit for most computer cases, while the California Prop 65 warning reminds users of potential health hazards. Built with top-notch components, the XPG CORE REACTOR II is a reliable choice for powering your system.
Dimensions (L x W x H) 650W-850W: 140 x 150 x 86mm
1000W-1200W: 160 x 150 x 86mm Cybenetics Rating 1200W: PLATINUM
1000W: PLATINUM
850W: PLATINUM
750W: PLATINUM
650W: PLATINUM 80 Plus Rating GOLD ATX Version ATX 3.1 Protections OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP Certification CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM PFC > 0.99 Input Voltage 100-240V Input Current 1200W: 15A
1000W: 13A
850W: 12A
750W: 10A
650W: 10A Input Frequency 650/750/850/1000/1200W:47Hz-63Hz DC Output Voltage +5V | +3.3V | +12V | -12V | +5Vsb Total Output 1200W: +5V/+3.3V :22A, +12V:100A, -12V:0.3A, +5Vsb:3A
1000W: +5V/+3.3V :22A, +12V:83.5A, -12V:0.3A, +5Vsb:3A
850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A
750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A
650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A Power Excursion 1200W: 2820W(*up to 235% of the PSU's rated power for 100μs)
1000W: 2350W(*up to 235% of the PSU's rated power for 100μs)
850W: 1997W (*up to 235% of the PSU's rated power for 100μs)
750W: 1762W (*up to 235% of the PSU's rated power for 100μs)
650W: 1527W(*up to 235% of the PSU's rated power for 100μs) Operating Temperature 50°C Fan Size 650W-850W: 120mm FDB Fan
1000W-1200W: 135mm FDB Fan Fan Bearing FDB (Fluid Dynamic Bearing) Fan Speed 2400 RPM MTBF 100K hours at full load ATX 24 Pin Connector 1200W/1000W:1
850W/750W/650W:1 EPS 8 Pin Connector 1200W/1000W:2
850W/750W/650W:2 PCI-E 6+2 Pin Connector 1200W/1000W:8
850W/750W:6
650W:4 Molex 4 Pin Connector 1200W/1000W:3
850W/750W/650W:4 12V-2x6 / 12VHPWR (12+4) Connector (600W) 1200W/1000W/850W/750W: 1 Weight Package:2.78kg Warranty 10 Years
