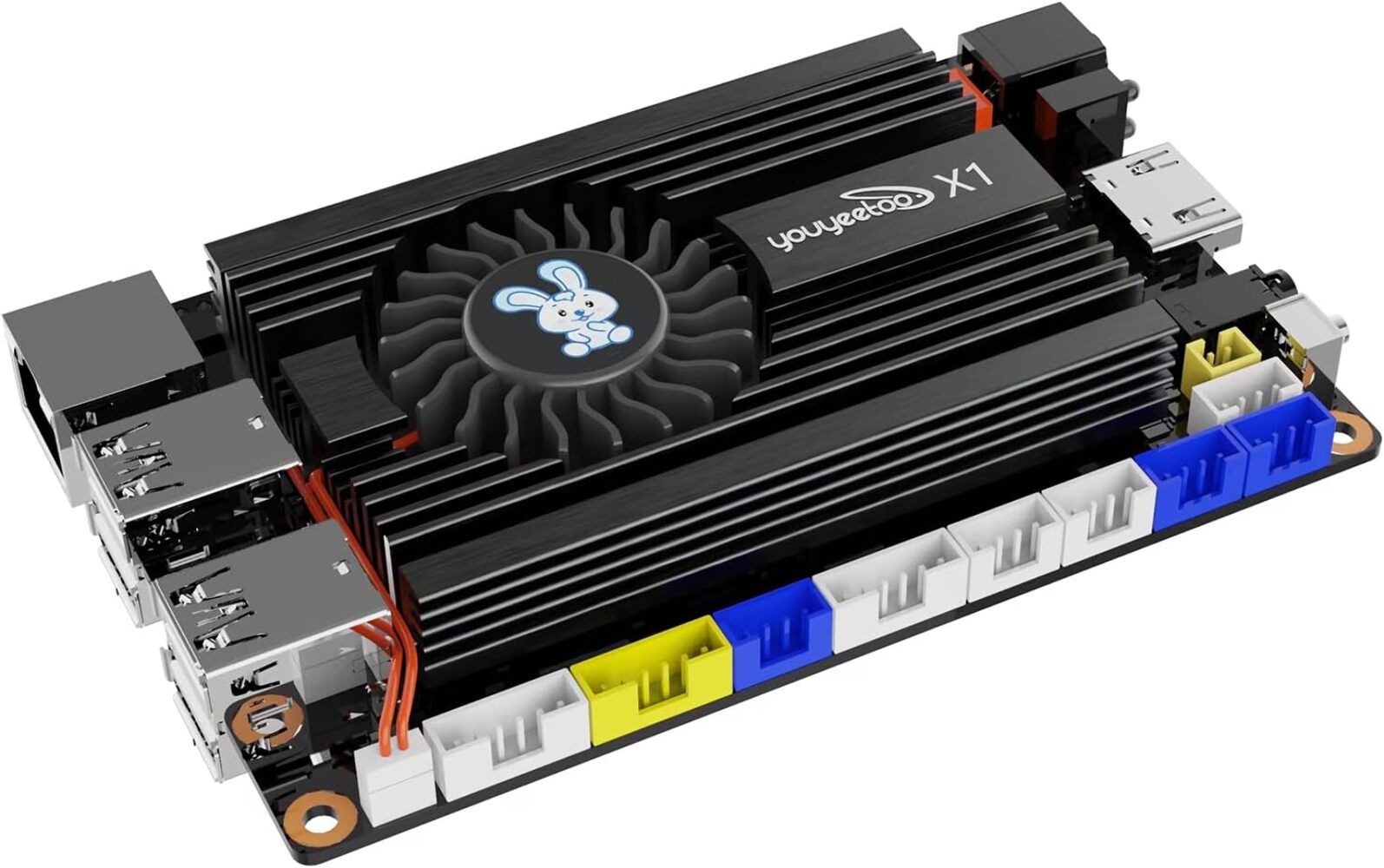

Youyeetoo X1s x86 Single board computerYouyeetoo X1S x86 Single Board Computer The Youyeetoo X1S is a compact x86 single-board computer powered by the Intel Celeron N5095. This board has 16GB LPDDR4 RAM and no onboard eMMC or 8GB LPDDR4RAM and 128GB eMMC options, storage can added through the M.2 slot, microSD, or SATA expansion. Dual 4K video output, Gigabit Ethernet, industrial headers, and Windows/Linux support make it a flexible board for Home Assistant, Proxmox, NAS, edge computing, and embedded projects. KEY FEATURES Intel Celeron N5095 quad-core processor, turbo up to 2.8 GHz 8GB or 16GB LPDDR4 RAM 128GB or No onboard eMMC — use M.2 NVMe / SATA or microSD for storage Dual 4K output via HDMI + Micro HDMI, plus MIPI DSI Gigabit Ethernet with PoE support M.2 2280 slot for NVMe or SATA SSD M.2 E-key slot for Wi-Fi / Bluetooth or 4G UART, GPIO, I2C, and SPI headers Windows and Linux ready Compact 115 × 75 mm SBC form factor SPECIFICATIONS Processor & Memory: CPU: Intel Celeron N5095 (Jasper Lake, 4 cores / 4 threads) Turbo: up to 2.8 GHz GPU: Intel UHD Graphics RAM: 16GB LPDDR4 Storage: No onboard eMMC M.2 2280 (NVMe or SATA) microSD / TF card slot SATA 3.0 via optional expansion Display: 1 × HDMI 2.0 (up to 4K@60Hz) 1 × Micro HDMI 2.0 (up to 4K@60Hz) MIPI DSI Networking: 1 × Gigabit Ethernet PoE support M.2 E-key for Wi-Fi 5 / Wi-Fi 6 / 4G module I/O: 2 × USB 3.0 USB 2.0 ports / headers UART, GPIO, I2C, SPI RTC 3.5mm audio Power: 12V / 3A DC PoE capable Physical: Dimensions: 115 × 75 × 20 mm Software: Windows 10 / 11 Linux (Ubuntu, Debian, Proxmox, Home Assistant, and others) What's Included: 1 × Youyeetoo X1S board (N5095 / 16GB RAM / no eMMC) 1 × 12V 3A power adapter 1 × Active cooling fan (assembled) NOTES An M.2 SSD or microSD card is needed for the operating system Excellent compact x86 option for Home Assistant, Proxmox, light NAS, and industrial / IoT projects Youyeetoo X1s x86 Single board computer Youyeetoo X1S x86 Single Board Computer The Youyeetoo X1S is a compact x86 single-board computer powered by the Intel Celeron N5095. This board has 16GB LPDDR4 RAM and no onboard eMMC or 8GB LPDDR4RAM and 128GB eMMC options, storage can added through the M.2 slot, microSD, or SATA expansion. Dual 4K video output, Gigabit Ethernet, industrial headers, and Windows/Linux support make it a flexible board for Home Assistant, Proxmox, NAS, edge computing, and embedded projects. KEY FEATURES - Intel Celeron N5095 quad-core processor, turbo up to 2.8 GHz
- 8GB or 16GB LPDDR4 RAM
- 128GB or No onboard eMMC — use M.2 NVMe / SATA or microSD for storage
- Dual 4K output via HDMI + Micro HDMI, plus MIPI DSI
- Gigabit Ethernet with PoE support
- M.2 2280 slot for NVMe or SATA SSD
- M.2 E-key slot for Wi-Fi / Bluetooth or 4G
- UART, GPIO, I2C, and SPI headers
- Windows and Linux ready
- Compact 115 × 75 mm SBC form & Memory:
- CPU: Intel Celeron N5095 (Jasper Lake, 4 cores / 4 threads)
- Turbo: up to 2.8 GHz
- GPU: Intel UHD Graphics
- RAM: 16GB onboard eMMC
- M.2 2280 (NVMe or SATA)
- microSD / TF card slot
- SATA 3.0 via optional × HDMI 2.0 (up to 4K@60Hz)
- 1 × Micro HDMI 2.0 (up to 4K@60Hz)
- MIPI × Gigabit Ethernet
- PoE support
- M.2 E-key for Wi-Fi 5 / Wi-Fi 6 / 4G module
I/O: - 2 × USB 3.0
- USB 2.0 ports / headers
- UART, GPIO, I2C, SPI
- RTC
- 3.5mm audio
Power: - 12V / 3A DC
- PoE 115 × 75 × 20 10 / 11
- Linux (Ubuntu, Debian, Proxmox, Home Assistant, and others)
What's Included: - 1 × Youyeetoo X1S board (N5095 / 16GB RAM / no eMMC)
- 1 × 12V 3A power adapter
- 1 × Active cooling fan (assembled)
NOTES- An M.2 SSD or microSD card is needed for the operating system
- Excellent compact x86 option for Home Assistant, Proxmox, light NAS, and industrial / IoT projects
× × × × ×
