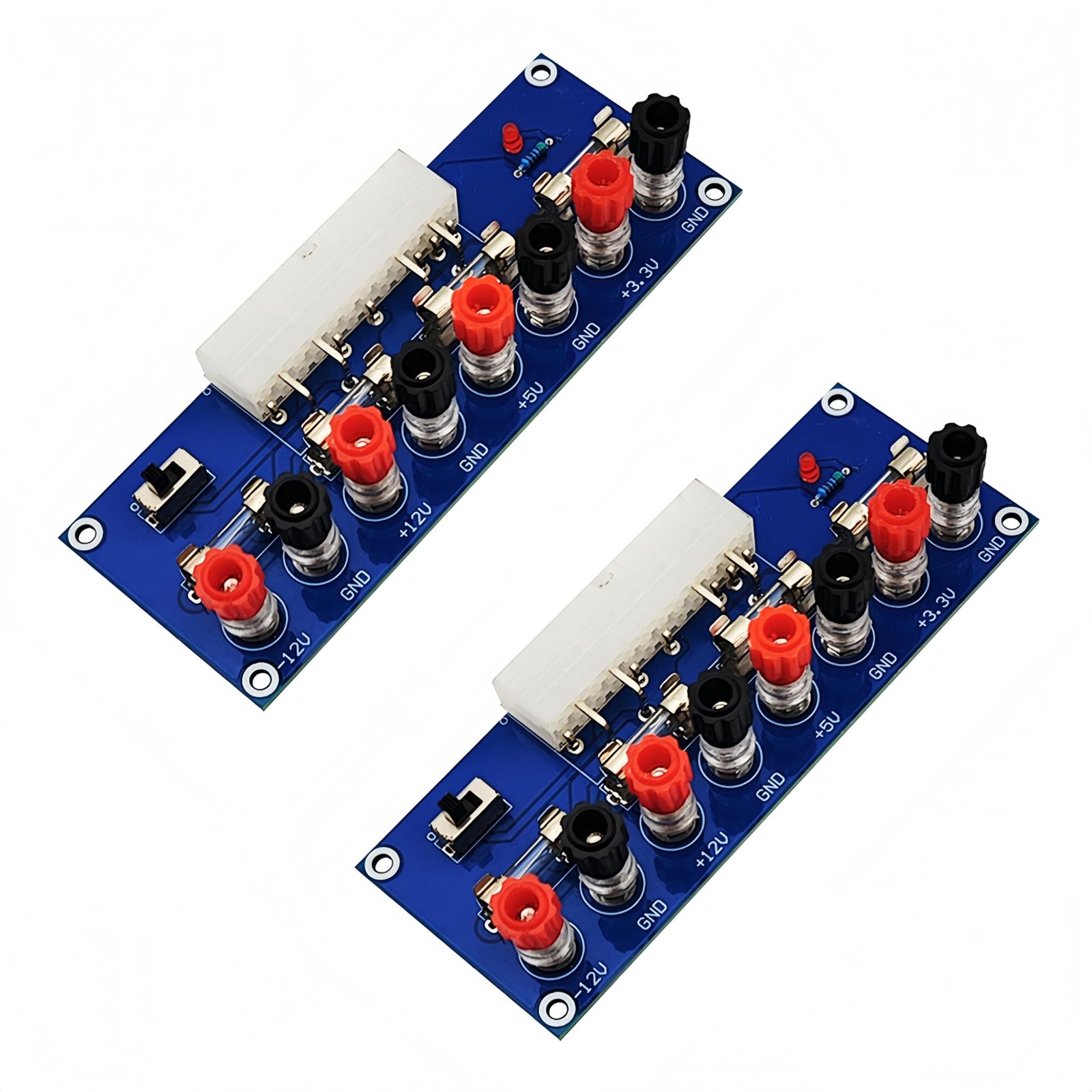

Yuuhseel 2PCS XH-M229 ATX Desktop PC Computer Chassis Power Supply Transfer Board 12V 5V 3.3V
Product Details

• Compatible with the port: ATX (compatible with partial BTX type)
• Number of sets of output four sets of different voltages
• PIN number is 24 pin, with power light and power switch.
• Please note that if the power supply is a 20PIN port, if it is not a 24PIN port, the socket should be inserted from the circular mark on the circuit board.
• Size is 128 * 48 * 30mm, Weight is 62g. Each output channel has replaceable 5A fuse and corresponding ground connection with binding post easy to connect

XH-M229 ATX Power Transfer BoardSize: 128*48*30mmHole spacing: 120.8*40.8mmInstallation hole diameter: 3.2mmWeight: 62gPlease note that if the power supply is a 20PIN port, if it is not a 24PIN port, the socket should be inserted from the circular mark on the circuit board.Compatible with the port: ATX (compatible with partial BTX type)Number of PINs: 24PINNumber of output groups: Four different voltagesSwitch: YesAbout the 24pin port:The 24pin port powers the computer motherboard in the host computer. Usually, this port is used together.Voltage description of each terminal:-12V to GND, GND is positive, -12V is negative, voltage DC12V+12V to GND, +12V is positive, GND is negative, voltage DC12V+12V to -12V, +12V is positive, -12 is negative, voltage DC24V+5V to GND, +5V is positive, GND is negative, voltage DC5V+3.3V to GND, +3.3V is positive, GND is negative, voltage DC3.3V-It is not recommended to carry high current loads with 12V terminals. They only provide a logic potential to the motherboard, usually with a current of around 300MA
