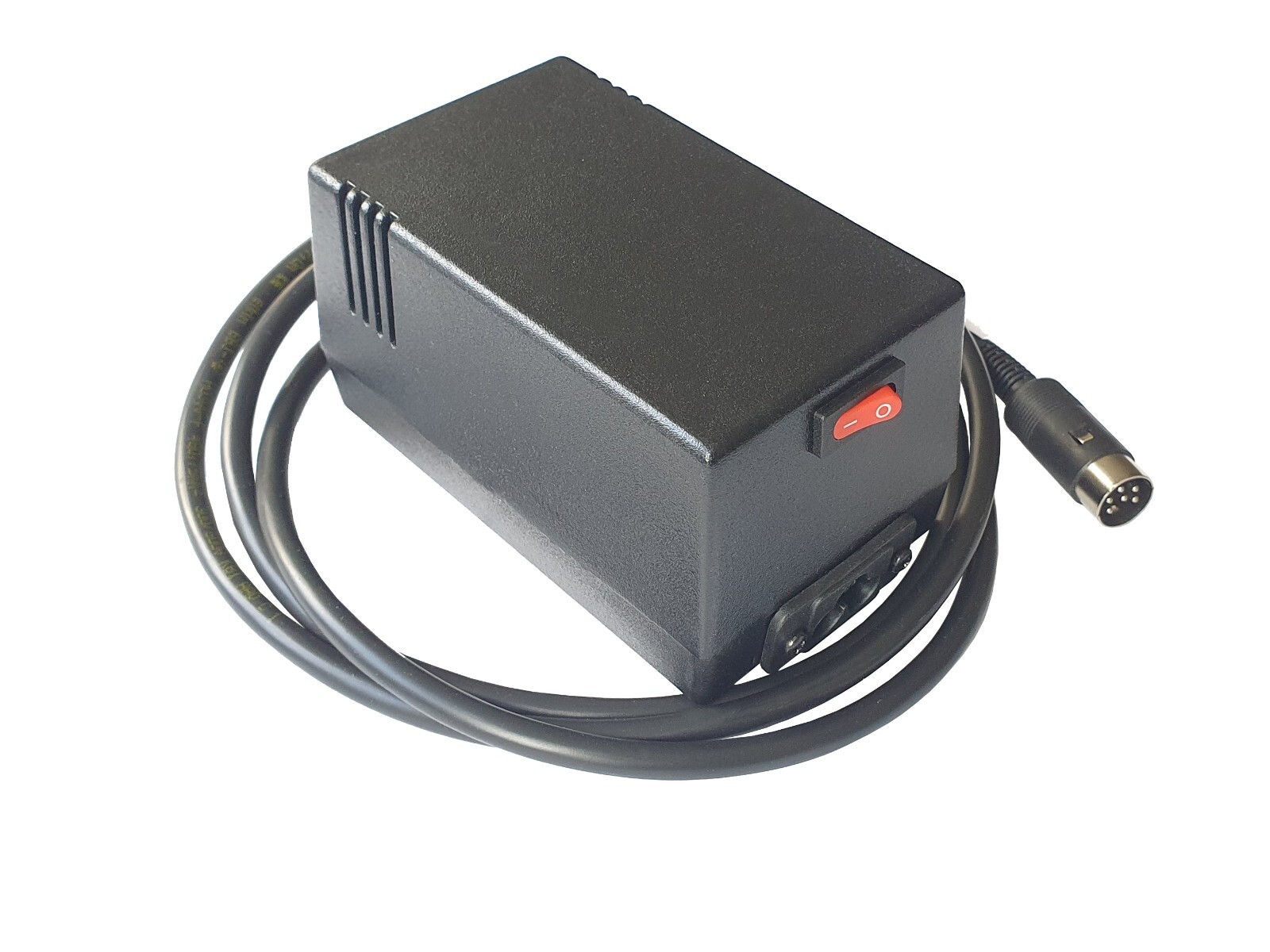

ZX Spectrum PSU+ by Electroware: a fresh start for your Sinclair ZX Spectrum +2A/B and +3 systems. Efficient and reliable, 55W strong medical grade PSU to power and preserve!PSU is including USA AC input cable by default! Please contact us for another cable type (UK, EU, AU) as the PSU is universal and accepts 110-230VAC mains, all you need is to change the main AC cable.

Stay original! Buy only the genuine Electroware's gear and beware the fancy overrated clones flooding & WWW!

GET THE NEW PSU AS YOUR ZX SPECTRUM IS WORTH IT.

The ZX Spectrum +2A, +2B computers were originally equipped with heavy (2kg in weight), transformer based PSU. Spectrum +3 was equipped with stronger, quite reliable, switching mode PSU handling bigger loads because of integrated 3"floppy drive. The best of the original PSUs were offering 5VDC@2A, [email protected] & [email protected]. All of these PSUs have same problem nowadays: all are nearly 40 years old and not longer reliable because of capacitors degradation. Old power supply, if still working, can ba a source of killing over voltage spikes that will burn your chips.

If your PSU is not longer working or you are not sure about it's condition - it's time to get a solid, superior quality replacement. It's 50W (55W peak) of total combined output power is far more than two times stronger than best model of original Sinclair ZX Spectrum +2, +3 PSU and it's two times smaller in dimensions and weight (0.4KG) to save your desk's space.

I believe your ZX Spectrum is using many enchantments nowadays as fans and users are creating wonderful hardware stuff like FDD emulators (using SD Card), video output enhancers and VGA/HDMI adapters, WiFi serial modems, memory upgrades etc... all to enjoy. But remember that all of these gadgets are stressing the PSU and original one become even more dangerous when working overloaded.

Please notice that most of cheap PSU replacements for ZX Spectrum +2/+3 computers are missing the -12VDC voltage (used for serial port) basing on the fact that most users is never using it so will never notice. Our philosophy is opposite: reliable PSU replacement needs to supply all the voltages as per original specification but offering more power on each line.

THE ABSOLUTE BASICS OF MODERN ZX Spectrum +2A/+2B and ZX Spectrum +3 PSU

Standard ZX Spectrum PSU+ features:

• ZX Spectrum +2A, +2B, +3 compatible
• Stabilized & filtered 5VDC up to 4A output (4.4A peak)
• Stabilized & filtered 12VDC up to 2A output (2.2A peak)
• Stabilized & filtered -12VDC up to 0.5A output (0.55A peak)
• Active & passive over voltage protection for main +5VDC line
• Over current protection for all output lines
• Fully isolated & fused on AC side
• Power On/Off switch
• Long output cable (1.8m) with round DIN 6-pin plug
• Detachable input AC cable for all versions
• Weight only 0.4 KG (4x less than original transformer based PSU)
• Runs COLD!
• Safety standards: UL60950-1, TUV EN60950-1, ANSI/AAMI ES60601-1, TUV EN60601-1, FEATURES & QUALITY

  Stay with the original Electroware products to gain top build quality, unique features unavailable with the clone products:

  • Reliable ON/OFF switch is a must for ZX Spectrum +2A/2B and ZX Spectrum +3 PSU
  • Detachable AC input cable (we deliver standard cable but you can use much longer cables if necessary).
  • Hi-quality round 6-pin plug 100% ZX Spectrum compatible
  • 100% repairable, easy to disassemble by qualified technician, spare parts available.
  • All electric cables terminated with the industrial grade, detachable wire-to-board connectors. There's no amateur and dangerous direct AC and DC wire-to-board soldering!


  Every single Electroware PSU unit is triple tested before dispatch. To assure flawless quality and long lasting performance we are testing with original Commodore gear from our collection as well as by burn-in test with customized load simulating devices causing 150% overload (comparing to regular ZX Spectrum +3 computer system).

  Stay with the original Electroware products to gain top build quality, unique features unavailable with the clone products.

  By purchasing this product you are supporting the retro computing community and contributing to our continuous developing process. Thank you!

  Warning!

  Risk of electrical shock and energy hazard when opened. All failures should be examined by a qualified technicians only. Risk of fire or electrical shock. The ventilation holes should be protected from foreign objects or dripping liquids. Please do not install power supplies in places with high ambient temperature or close to the heat source. Enclosed power supplies are intent to work in indoor locations, it's not allowed to use power supplies outdoor, in dust or high moisture. Output current and output wattage must not exceed the rated values.

  This replacement ZX Spectrum PSU has been designed for ZX Spectrum +2A, +2B and +3 vintage computer systems only and should be considered as an integral component of ZX Spectrum computer system. Do not connect to any other devices as it's not a general purpose PSU. Manufacturer is not responsible for any consequences of unauthorised or arbitrary repairs, modifications or incorrect usage. Please notice that new, properly working replacement ZX Spectrum PSU is reducing the system's potential fail rate but still is not guaranteeing that entire Sinclair ZX Spectrum system will work correctly (it's ~40 years old).

  Stay original! Buy only the genuine C64PSU.com gear and beware the fancy overrated clones flooding & WWW!
