Zebra ZC300 Photo ID Single Side Card Printer SystemGround-Breaking Simplicity
No matter what type of card you need to print — from identity and access to membership, event and credit/debit cards — the ZC300 Series card printers will help you do it better, faster and easier. Elegant engineering of the ZC300 card printers eliminate virtually all pain points associated with card printing. The result is push-button simplicity no matter what you are printing — single or dual-sided magnetic stripe or contactless cards, in color or black and white. And with a ground-breaking fits-everywhere design, you can get secure card printing wherever you need it.
Groundbreaking New Driver With a Graphical User Interface
The intuitive interface in the newly-designed driver makes it easier than ever to print cards. Settings are grouped logically into tabs where they are easily accessible with a click. A visual display of your card makes printing simple monochrome and complex color cards equally easy, allowing you to instantly see how your card looks and how setting changes impact card design — eliminating the time and cost to repeatedly print test cards.
A New Ingenious Card Feeder Handles Varying Card Thickness On-the-Fly
The card feeder instantly adjusts to the thickness of each card — no more adjusting for different card stocks.
Revolutionary New Hopper Design
The completely re-designed hopper makes loading and unloading cards easier than ever. With the saloon-style output doors, there’s nothing to open — just grab one card or the whole stack of cards. And the input and output hoppers have the same capacity, reducing the need to refill and empty the hoppers.
Fool-Proof Ribbon Changing
Changing a ribbon has never been so simple and uncomplicated — no instructions required. The newly designed ribbon door latch unlocks and opens in one motion. The unique door-handle style grip leaves no question about how to remove or insert the ribbon. And with embedded smartchips, you always know when to change the ribbon.
Zebra ZC300 Photo ID Single Side System SpecificationsSTANDARD FEATURES
- 300 dpi (11.8 dots/mm) print resolution
- 2 GB flash memory
- Image size: 1006 x 640 pixels
- Auto calibration of ribbon
- USB 2.0 and Ethernet 10/100 connectivity
- 100 card capacity auto-adjusting input hopper (30 mil)
- 100 card capacity output hopper (30 mil)
- Manual card feeding capability with LED bezel
- 3 Tricolor printer status indicator lights
- Kensington® secure lock slot
- Print Touch NFC tag for online printer help and documentation access
- Printer host authentication
- Data encryption
- Three-year unlimited warranty on printer and printhead
PRINTING SPECIFICATIONS
- Dye-sublimation thermal transfer direct to card print method
- Full-color or monochrome printing
- Single and dual-sided printing
- Edge-to-edge printing on standard CR-80 media
Printing throughput (cards per hour) based on batch printing withUSB connectivity. Note that times may vary depending on thecomputer configuration.
- 200 cards/hour single-sided YMCKO
- 140 cards/hour dual-sided YMCKOK
- 900 cards/hour single sided monochrome
- 450 cards/hour dual-sided monochrome
MEDIA SPECIFICATIONS
Supplies Specifications:
NOTE:The ZC300 printer is designed to work only with the following Zebra
genuine ribbons.Ribbons are included in a simple-to-load cartridge.
- YMCKO* - 200 Images per Roll P/N 800300-350LA or 800300-250LA
- YMCKO* - 300 Images per Roll P/N 800300-550LA
- YMCKLL* - 200 Images per Roll P/N 800300-563LA
- YMCPKO* - 200 Images per Roll P/N 800300-562LA
- SrDYMCKO* - 200 Images per Roll P/N 800300-264LA
- ½ YMCKO* - 400 Images per Roll P/N 800300-370LA
- KrO* - 700 Images per Roll P/N 800300-321LA
- KdO* - 700 Images per Roll P/N 800300-320LA
- Black Monochrome* - 2000 Images per Roll P/N 800300-301LA
- White Monochrome* - 1500 Images per Roll P/N 800300-309LA
- Red Monochrome - 1500 Images per Roll P/N 800300-302
- Blue Monochrome - 1500 Images per Roll P/N 800300-304
- Gold Monochrome - 1500 Images per Roll P/N 800300-306
- Silver Monochrome - 1500 Images per Roll P/N 800300-307
Ribbon availability may vary by region.
- *Zebra intelligent technology automatically detects and authenticates ribbon
- Cleaning roller is included with each ribbon
- Two available cleaning kit options: your choice of two (2) or five (5) isopropyl alcohol cleaning cards (1,000 images/card)
MEDIA SPECIFICATIONS (CONTINUED)
Card Compatibility:
NOTE: For optimum print quality and printer performance,
use of Genuine Zebra supplies is recommended.
- Card Thickness: 10-40 mil
- Card Size: CR80 ISO 7810 ID-1 format, CR79
- Card Material: PVC and PVC composite
- Adhesive back and writable back cards
- Spot color or monochrome printing only on < 20 mil thick cards and CR79 cards
OPERATING CHARACTERISTICS
Environmental
- Operating Temperature: 59º F to 95º F/15º C to 35º C
- Storage Temperature: 23º F to 158º F/-5º C to 70º C
- Operating Humidity: 20% to 80% noncondensing
- Storage Humidity: 20% to 90% noncondensing
- Media Storage:
- Temperature: 41º F to 77º F/5º C to 25º C
- Humidity: 35% to 65% style="box-sizing: border-box; margin: 0px; padding: 0px;">
- Auto-switching single-phase AC power
- Operating range: 90-132VAC and 190-264VAC RMS
- Frequency range: 47-63 Hz
- FCC Class A

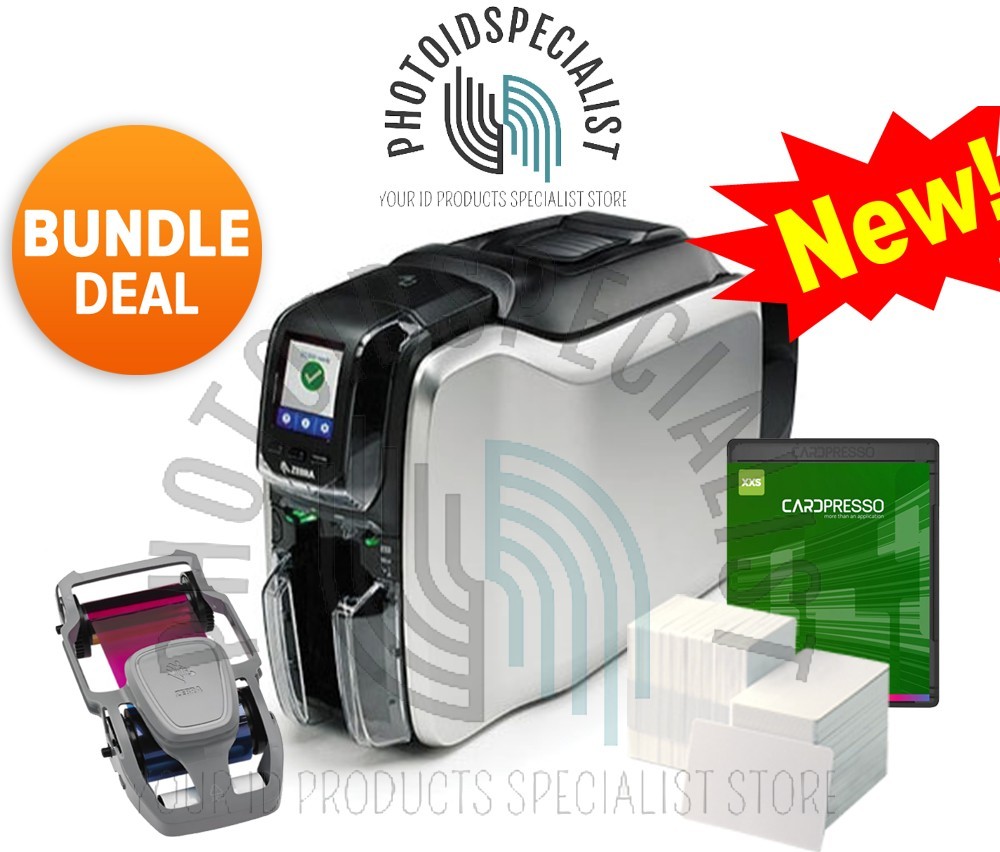

Complete Photo ID Card Printer Systems Kit- Zebra®ZC300Single Side ID Card Printer (ZC31-000C000LA00)Region CodeLA
- CardPresso XXS EditionID Card Design & Production Softwareor Zebra CardStudio 2.0 Standard Edition
- One (1) YMCKO Color Ribbon 200 prints (P/N800300-350LA / 800300-250LA)
- 200 Blank White Laminated PVC Cards, CR-80, 30 mil, Graphics Quality, Premium
PHYSICAL CHARACTERISTICS
Single Sided
Dimensions10.2 in. H x 6.2 in. W x 15.1 in. D; 258 mm H x 157 mm W x 383 mm DWeight8.8 lbs (4.0kg)
Dual Sided
Dimensions10.2 in. H x 6.2 in. W x 18.4 in. D; 258 mm H x 157 mm W x 468 mm DWeight9.7 lbs (4.4kg)
COMMUNICATIONS AND INTERFACE CAPABILITIES
- USB 2.0 — Standard
- Built-in 10/100 Ethernet — Standard
- 802.11ac with MFi — Optional
ENCODING OPTIONS AND SPECIFICATIONS
- Magnetic stripe encoder — ISO 7811 (new and pre-encoded; tracks 1, 2, and 3; high and low coercivity; stripe down and stripe up with duals-sided printers) *
- Third party contactless encoder integration kit*
*Field upgradeable options
PRINTER DRIVERS
- Windows Server® 2003 (32 bit)
- Windows Server 2008 (32 and 64 bit),
- Windows 7 (32 bit and 64 bit)
- Windows 8 and Win 8 Pro (32 bit and 64 bit
- compatible)
- Windows Server 2012 (64 bit)
- Windows 10 (32 bit and 64 bit)
Windows drivers include:
- Color coded printer status indicators for the operator
- Black panel extraction and controls for specialty ribbon panels with image preview
- Configuration utility to limit access by operators to change image quality and printer settings
- Advanced printer configuration, security settings and diagnostics capabilities
Linux Ubuntu ,AppleiOS 10.2
ADDITIONAL OPTIONAL FEATURES*Field upgradeable options
PRINT DNA
Multiplatform Software Development Kit (SDK)
Windows C#/.Net and Java Printer Software Development Kit (SDK)
- One SDK download supports Android, Java and Windows environments
- Easily build card-printing apps with complete control over print functionality from Windows, Linux, Mac OS and Android environments
- Enable card printing from Android mobile devices
- Incorporate encryption and host authentication
- Includes documentation and source code examples
CardPresso XXS Edition ID Card Design
Included with the printer, this simple-to-learn and feature-rich carddesign software that makes it easy to design loyalty cards, giftcards, ID cards and more.
Print Touch
With a single tap, you can use Android-based mobile devicesto access how-to and troubleshooting information to help keepprinters up, running and available.
About Print DNA.Print DNA propels your Zebra Link-OS for Cardprinters into a class of their own, providing Zebra-only softwaretools that make life easier for everyone who touches your printers,from printing to printer management and application development.
