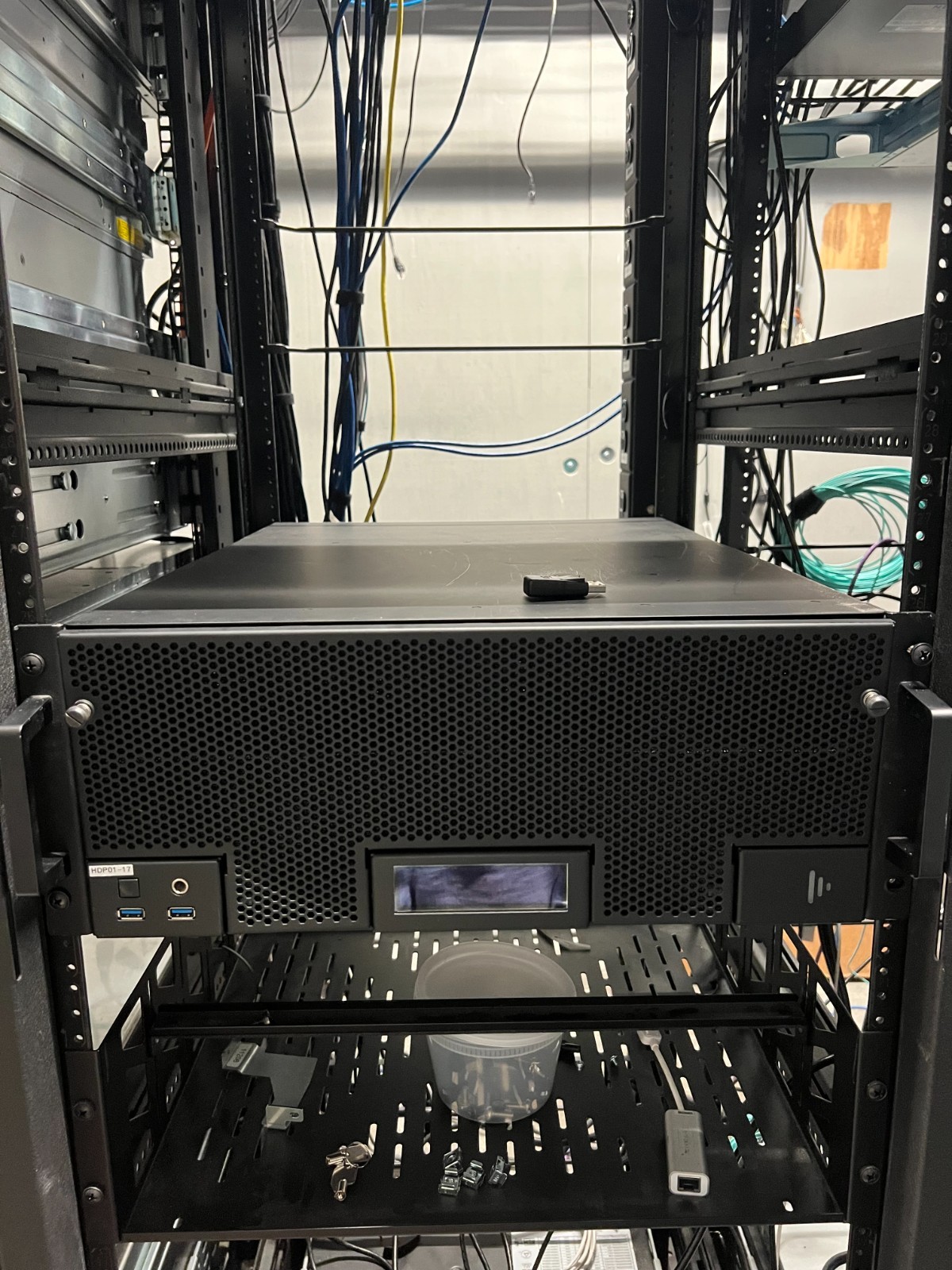

DescriptionProfessional 4RU media server for live events, concerts, virtual production and LED volumes. Fully functional and tested. Includes a permanent disguise software license.
LICENSE INCLUDED — verified, no expirationOn-board CodeMeter hardware license chip (container 3-4106266) containing:
• d3 Base (perpetual, no expiry) • d3 pro range (perpetual, no expiry) • vx 4 (perpetual, no expiry) • Notch d3 Media Server Bundle and Watermarked Playback License (10BIT FX)
Screenshots of the CodeMeter WebAdmin license page are included in the photos. Comparable vx 4 units are commonly sold without any license.
HARDWARE
• 2× Intel Xeon Gold 6134 @ 3.2 GHz (16 cores / 32 threads) • 96 GB DDR4 RAM • AMD Radeon Pro WX 9100 • 4× HDMI 2.0 VFC output cards (all four present, detected, tested) • 2× Deltacast DELTA-3G-elp-d 8c capture cards = 16× 3G-SDI inputs • Broadcom MegaRAID 9460-16i storage controller (installed, no drives) • Networking: 1 Gb, 2× 10 Gb (Intel X722), 2× 100 Gb (Mellanox ConnectX-6 Dx) • Balanced XLR audio in/out, MIDI in/out, BNC genlock, 5× USB 3.0 • Windows 10 Enterprise, disguise r30.4, image 24Q1_1 • Neutrik powerCON TRUE1 power input
TESTING PERFORMED
• Boots normally to Windows and launches disguise Designer with no errors • All 4 VFC cards report on the front OLED panel and in Designer • All 4 outputs configured and verified rendering content at 1920×1080 @ 60 Hz, 8-bit RGB Full, status Normal • Capture cards, all network adapters, GPU and RAM detected with no faults • License verified active in CodeMeter
PLEASE READ — DISCLAIMERS
1. NO MEDIA DRIVES. The NVMe media RAID array has been removed. The MegaRAID 9460-16i controller is installed and detected, but there are no media drives. The OS and recovery drives are present and the machine boots and runs normally. Buyer must supply their own media drives. Price reflects this.
2. Sold as-is, no returns. Tested to the extent described above and photographed. No warranty expressed or implied.
3. Outputs tested at 1080p. Verified on a 1920×1080 display. Not tested at 4K or with the full 4× uncompressed 4K60 playback the unit is specified for, which would require the media drive array.
4. Capture inputs not tested. The Deltacast cards are detected by Windows and disguise, but no SDI sources were available to test signal.
5. License transfer. The license is on the internal CodeMeter chip and stays with the machine. Buyer should contact disguise directly regarding registration and support entitlement. I make no guarantee about disguise support contracts, software updates, or account transfers.
6. Previous owner branding. The unit carries prior owner asset tags and the Windows install retains their machine name and wallpaper. Buyer can reimage using the included on-board recovery partition. Do not wipe the CodeMeter chip.
7. Windows 10 is end of life. The install is original disguise factory image 24Q1_1.
8. Included accessories. Ships with the powerCON TRUE1 power cable and rack rails. No road case, media drives, video cables or SFP modules are included.
9. Shipping and pickup. Due to its size, weight and value, this unit ships palletized by LTL freight only (no UPS/FedEx/USPS parcel) with full-value cargo insurance. Packed size is approx. 36 x 30 x 19 in. and approx. 65 lb. The flat freight rate assumes a commercial delivery address with a dock or forklift. Local pickup in Atlanta, GA (30342) is also available by appointment. You should also plan to insure this purchase for the full value with the freight company. We will not assume any freight related loss or damage.
