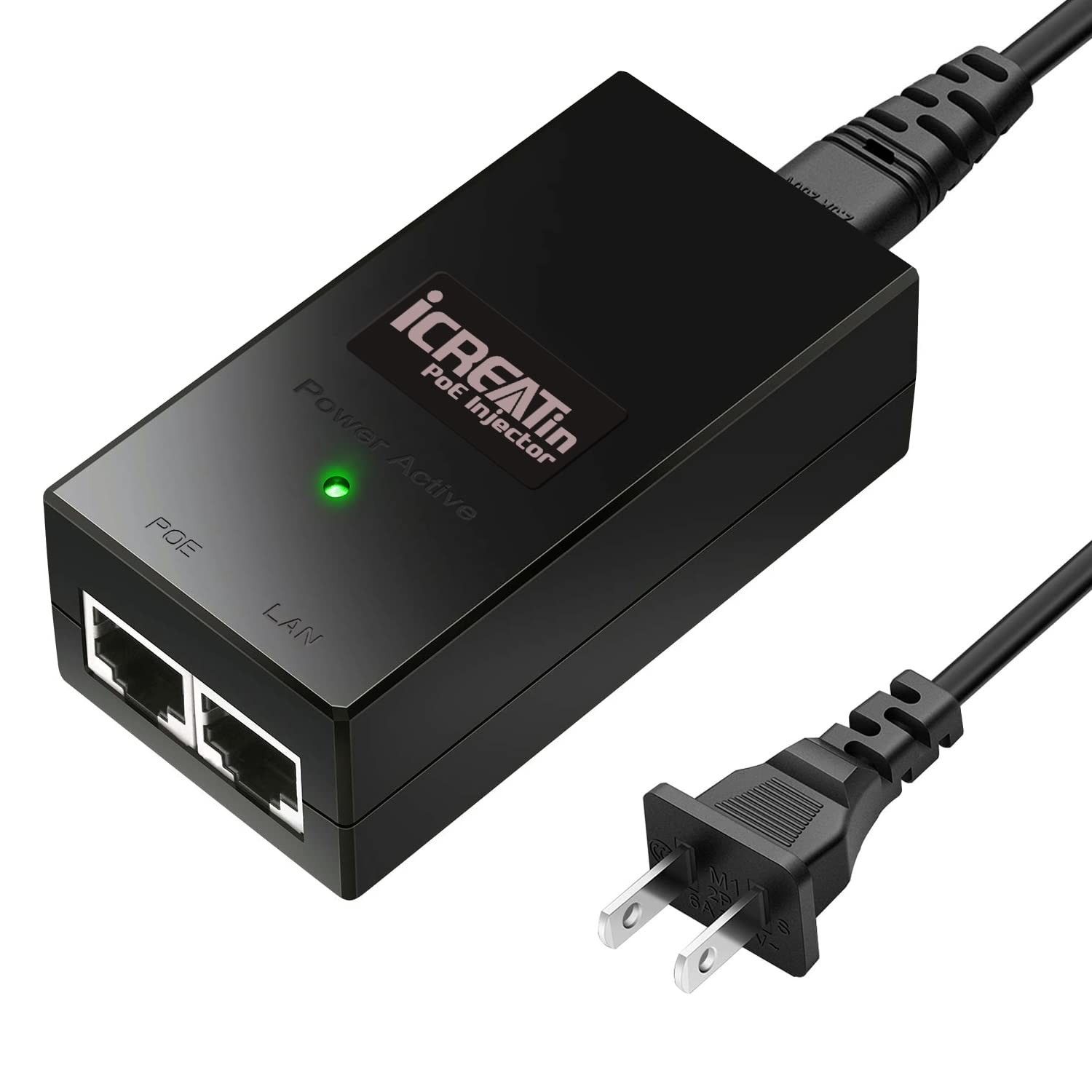

Product Page Gigabit PoE+ Injector, 30W POE Power Adapter, IEEE802.3af & 802.3at Co Electronics Description:

Use PoE injector with PD to expand your network to where there are no power lines or outlets,where you wish to fix devices such as AP ,IP camera or IP Phone etc.This PoE injector is a single port Gigabit PoE injector offer a compact and cost effective,it can convert standard 100-240V ac power into low-voltage.DC that runs over existing LAN cable to power up IEEE 802.3af/at compliant network accessories. Remote powering of wireless LAN(WAN) access points,IP security cameras,VoIP telephone and other low port density installations.Features: Up to 15.4W/30W of Power on 2-pairs for IEEE802.3at and IEEE802.3af POE DevicesSupports 10/100/1000 Base-T applicationsLed indicators power input and PoE outputInternal AC/DC converter no need for external power brickEasy plug and play Through Data Rates: 10/100/1000MbpsOutput Power Voltage: 54~55VDCPoE Port Power: 30W maxAC Input Voltage: 100-240VACAc Input Current: 0.5A 100-240VACAC Frequency: 50 to 60 HZDimensions: 85x42x30 mm & 3.3x1.65x1.18 inSystem Indicator: AC powerConnectors: shielded RJ-45,EIA 568A and 568BOperating Ambient Temperature: -0 to 40 Storage Temperature: -40 to 60 Installation Steps:1.Use a CAT5 UTP cable to connect port of Ethernet devices to the LAN port2nnect AC cable with Injector and Socket3nnect the PoE OUT port to a PD with CAT5 UTP cable

Features:

• Auto sensing technology delivers Up to 30W of power over ethernet, Supplies PoE (15.4W) or PoE+ (30W) Power
• Converts a non-PoE Gigabit port to a PoE+ Gigabit port, Network a PoE device located up to 120 meters (390 ft.) away via Full Duplex Gigabit speeds
• Integrated power supply for all-in-one design, 1 Gigabit Ethernet port input and 1 PoE+ Gigabit ethernet port output.
• Plug and Play, no configuration is needed,simply connect a PoE device, accommodates most installations scenarios
• Compact and cost-effective POE+ injector Compatible with most Gigabit IP camera, IP phone, Wireless IP point and other Gigabit PoE devices.
