The main crimp pin manufacturers several hundreds dollars for just one specific dedicated crimping tool (that you can only use on ONE crimp pin type), which usually puts the ability to crimp small pins both professionally outside the financial reach of most hobbyists, semi-pros etc With this PA-20 precision crimping tool,you can now achieve that 'pro finish' across many types of crimp pin makes - yet at a fraction of the cost of just one of their Manufacturer's own crimp tools.

Just some of the crimp pins that can be crimped by the PA-20 crimping tool....JST Crimp Series…BD BH BHM BHS BHT BL CZ CZW EH EL GH HL HM JFA JWPF KRW LC LV MWP NHY NV NVA OTZ PA PAD PAL PH PHD PN PND PNI PUD RA RCY RE RIZ RWZ SAN SBN SCN SH SHD SHL SHLD SL SM SV SZN VA VB VH VL VU VYH XA XAD XH XL XM XMA YL YLH YLN ZE ZH ZL ZM
Molex Crimp Series…PICOBL*DE MICRO-LATCH MICROBL*DE MINI-LOCK MINI-SPOX KK MINI-LATCH MICRO-FIT SPOX MINI-FIT 1190 1189 1381 C-GRID / SL MILLI-GRID PICO-SPOX
Amp Crimp Series…AMPMODU DYNAMIC MATE-N-LOK UNIVERSAL MINI-UNIVERSAL PE
JAE Crimp Series…IL-AG 5/7/9 MX34 IL-Z IL-G
Hirose (HRS) Crimp Series… DF3 DF11
(we can confirm this crimp tool DOES crimp Molex KK range well -the Molex KK is found on motherboard fan connectors)
See foot of this listing for the ENGINEER Crimp tool pin compatibility charts

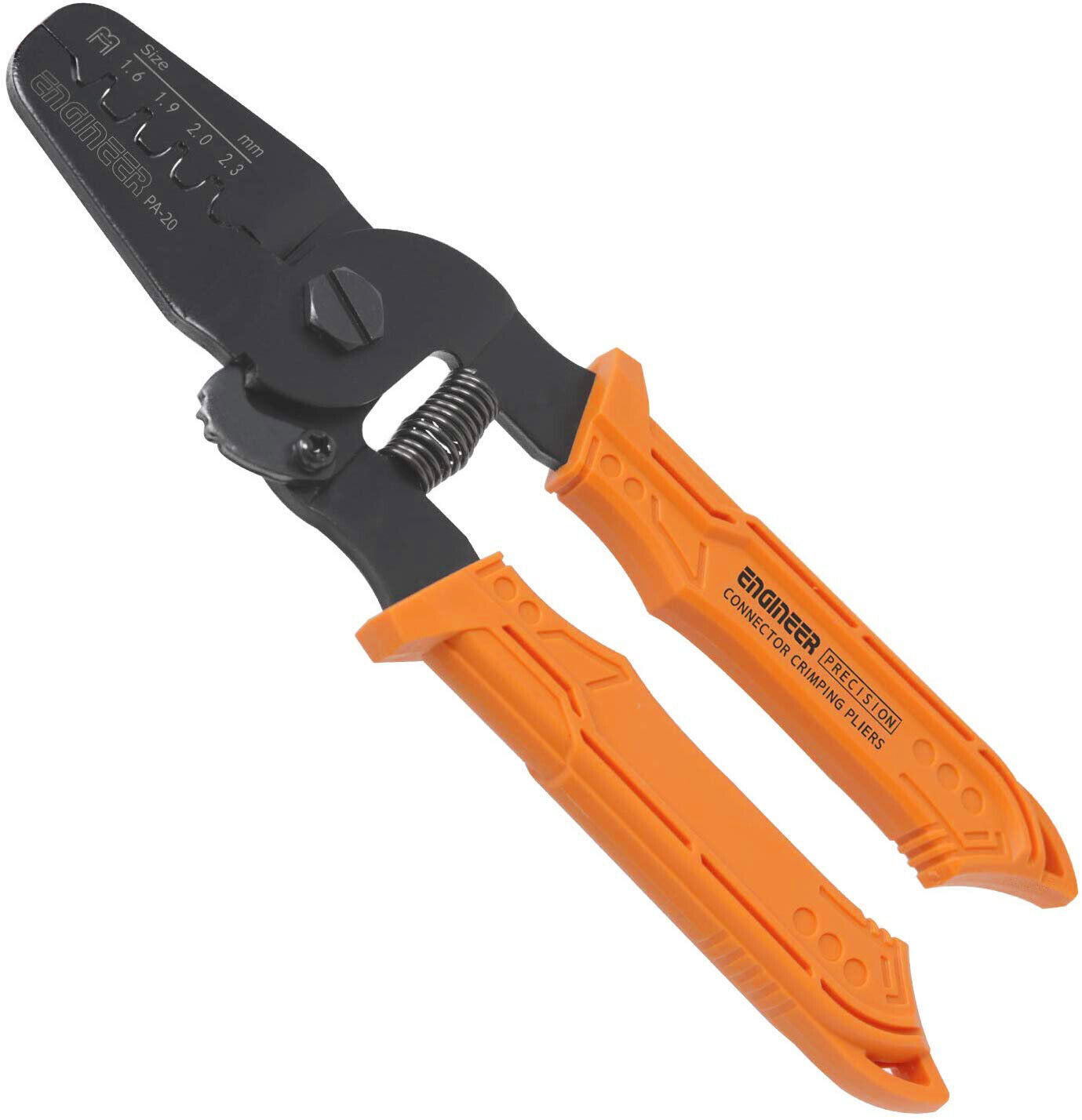

Here's the PA-20 product highlights & features....

• crimp AWG28~18 wires across 100 different pins (& D-SUB connector contacts) from the main crimp pin manufacturers
• professional results (& at a fraction of the price as charged by the Pin Vendors for their specific crimping tools)
• 4 different crimping die widths - 1.6mm, 1.9mm, 2.0mm & 2.3mm
• capable of crimping 2.5mm to 5.0mm pitch connector pins (universal type)
• spring loaded handles for easy operation (handles latch shut for storage)
• oil-resistant TPR (thermoplastic rubber) grips for unmatched comfort
• original joint-screw by "ENGINEER" allows quick & easy maintenance
• strap holes at end of handles
• light & compact body for fatigue-free work
• constructed from S55C Carbon Steel
• ROHS Compliant
• made in Japan

Watch how easy & quick it is to use the tool & see the fantastic results you get, by clicking on this short demo video link >>ENGINEER PA-20 demo video<<<(the video has no audio & is Japanese, but nevertheless you'll get the idea)
There is a degree of overlap between the sibling >>PA-09<< and the PA-20, so check the pin compatibility chart to see which one is most suitable for your needs >>Click here to view the PA-09 / PA-20 pin compatibility chart <<... if your target crimp pin happens to be listed againstboththe PA-09 & PA-20, then your purchase decision comes down to whether you think you're going to be crimping thinner gauge wire & smaller pins more frequently - choose the >>PA-09<<(AWG32~20) ...or slightly thicker wire gauge (& slightly larger pins), then choose the PA-20 (AWG #28~16) in this listing.
A quick word about the mfr crimp pin part naming - if your *exact* pin number is not listed in the application chart above, bear in mind that the crimp pin manufacturers often change the first character to indicate the type of packaging the pin is delivered in (e.g. loose pins, tape/reel etc). For example, a "JST" PH seriesSPH-002T-P0.5S is exactly the same crimp pin as aBPH-002T-P0.5S .....& a JSTSXH-001T-P0.6 is exactly the same pin as a BXH-001T-P0.6 & so on - so it might be prudent to check for your pin on the pin compatibility chart by initially dismissing the first character.If your crimp pin is not listed against either the PA-09 or the PA-20, then we also sell the >>PA-21 << crimping tool. The PA-21 tool has a different selection of die sizes (in comparison to the PA-09 & PA-20) & can cater for crimp pins with longer 'crimp lugs'.
If you would like to see another demo video, please click on this link >>ENGINEER PA-09 demo video II<<
