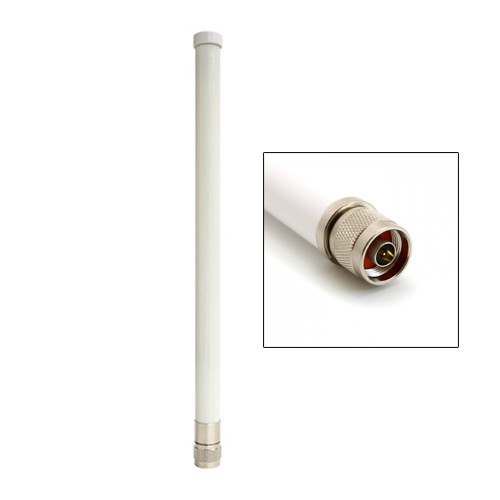

Alfa AOA-2458-79AM is a new high quality, low costdual band 9 dBi gain omni-directional 2.4/5 GHz Wi-Fi antenna with N-maleconnector. The gain is 9 dBi for 5 GHz and 7 dBi for 2.4 GHz. This has weather proof casing. This is a great antenna forboat or RV use. This does not come with a mounting bracket.
This is an antenna only, not a standalone Wi-Fi radio and cannot be used by itself to pick up Wi-Fi signals. It must be connected to a compatible Wi-Fi radio or transmitter. To get dual band capability, you must connect it to a dual band capable Wi-Fi receiver or transmitter- this cannot transform a single band radio into a dual band device.This is a great choice for Alfa Tube-UAC2 or Alfa ID36ACH.
With its N-male connector, this can be connected directly to avariety of outdoor WiFi products including Alfa and Ubquiti products. Contact our sales teamfor more information about compatible extension cables and pigtails for usewith your particular WiFi receiver or see below for links. This antenna was designed for directconnection to a WiFi receiver or transmitter and does not have a mounting bracket.It has an N-male connector, and wedo carry an antenna extension cable which will allow you to connect this to all of AlfaNetwork\'s popular line of Wi-Fi adapters that include RP-SMA connectors.Specifications:
Frequency Range
2400 – 2500 MHz
5150 – 5875 MHz
Gain
7 dBi @ 2400 – 2500 MHz
9 dBi @ 5150 – 5875 MHz
VSWR
2.0 : 1 Max.
Polarization
Linear, Vertical
Power handling
2W
Impedance
50 ohm
Connector
N male
Antenna Length
317 mm
Operating Temperature
-40 °C ~ 85 °C
Operating Humidity
5 % ~ 95 % (Non-condensing)
This item comes with a 30-day return period. There isno restocking fee for defective or not-as-described items, or items returnedfor exchange. Otherwise we charge a minimal 10% restocking fee to help coveroriginal postage which is included in the item price. There are no otherwarranties on this sale, expressed or implied. The exception to this is ifthe description states there is a manufacturer\'s warranty.
