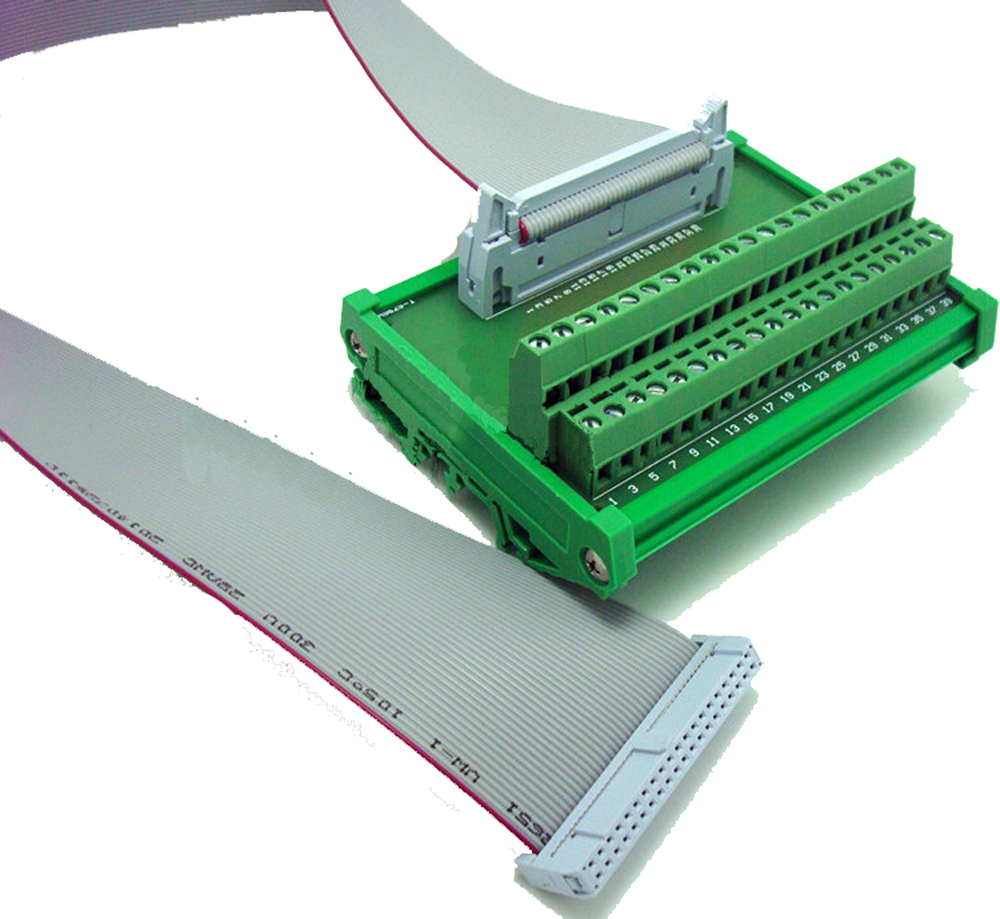

IDC-40 DIN Rail Mounted Interface Module.Pitch 5.08mm / 0.20" screw terminal block.
DC pin pitch 2.54mm / 0.1" male header connector.
Din rail mountable - for width 35 / 32 / 15mm rails.
Din mount case can be taken apart for panel mount use.
High quality PCB housing/carrier.
FR-4 fiber glass PCB, dual copper layers.
External dimensions: 87 x 113 x 54mm(W x L x H).Rated voltage: 60V.
Rated current: 1.0A / per pin.
Operating Temperature: -20ºC to 50ºCTerminal block specifications:
Wire range: 22-12AWG.
Strip length - 5mm.
Screws - M2,steel, Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.Default Package included : 1* terminal block breakout board +1* 0.5 meter of cable
