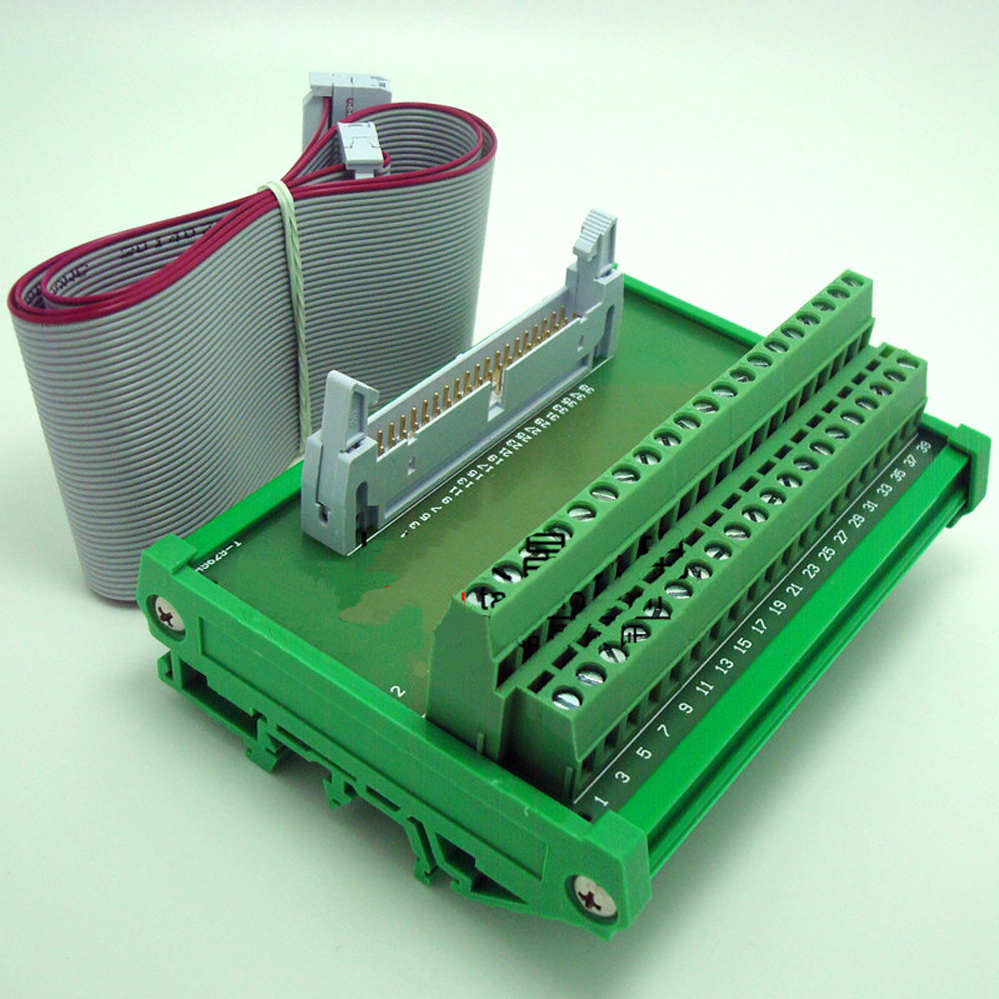

IDC40P 40 Pin Connectors Interface Module DIN Rail Terminal Blocks 0.5M CableIDC-40 DIN Rail Mounted Interface Module.Pitch 5.08mm/0.20" screw terminal block.DC pin pitch 2.54mm/0.1" male header connector.Din rail mountable - for width 35 / 32 / 15mm rails.Din mount case can be taken apart for panel mount use.High quality PCB housing/carrier.FR-4 fiber glass PCB, dual copper layers.External dimensions: 87 x 113 x 54mm(W x L x H).Rated voltage: 60V.Rated current: 1.0A / per pin.Operating Temperature: -20ºC to 50ºCTerminal block specifications:Wire range: 22-12AWG.Strip length - 5mm.Screws - M2,steel, Cr3+ Zn plated.Torque - 0.2Nm (1.7Lb-In.).Pin header and Cage - Brass.Default Package included : 1* terminal block breakout board +1* 0.5 meter of cableCountry/Region of ManufactureChinaConnection CableColorGreenCable Length50 cmMPNDoes not applyConnector AIDE/EIDE/PATA FemaleConnector offerE/EIDE/PATA MaleCable/Connector TypeIDE CableBrandUnbranded/Generic
