OLD NEW STOCK - Has been sitting on a shelf for years.Still sealed....

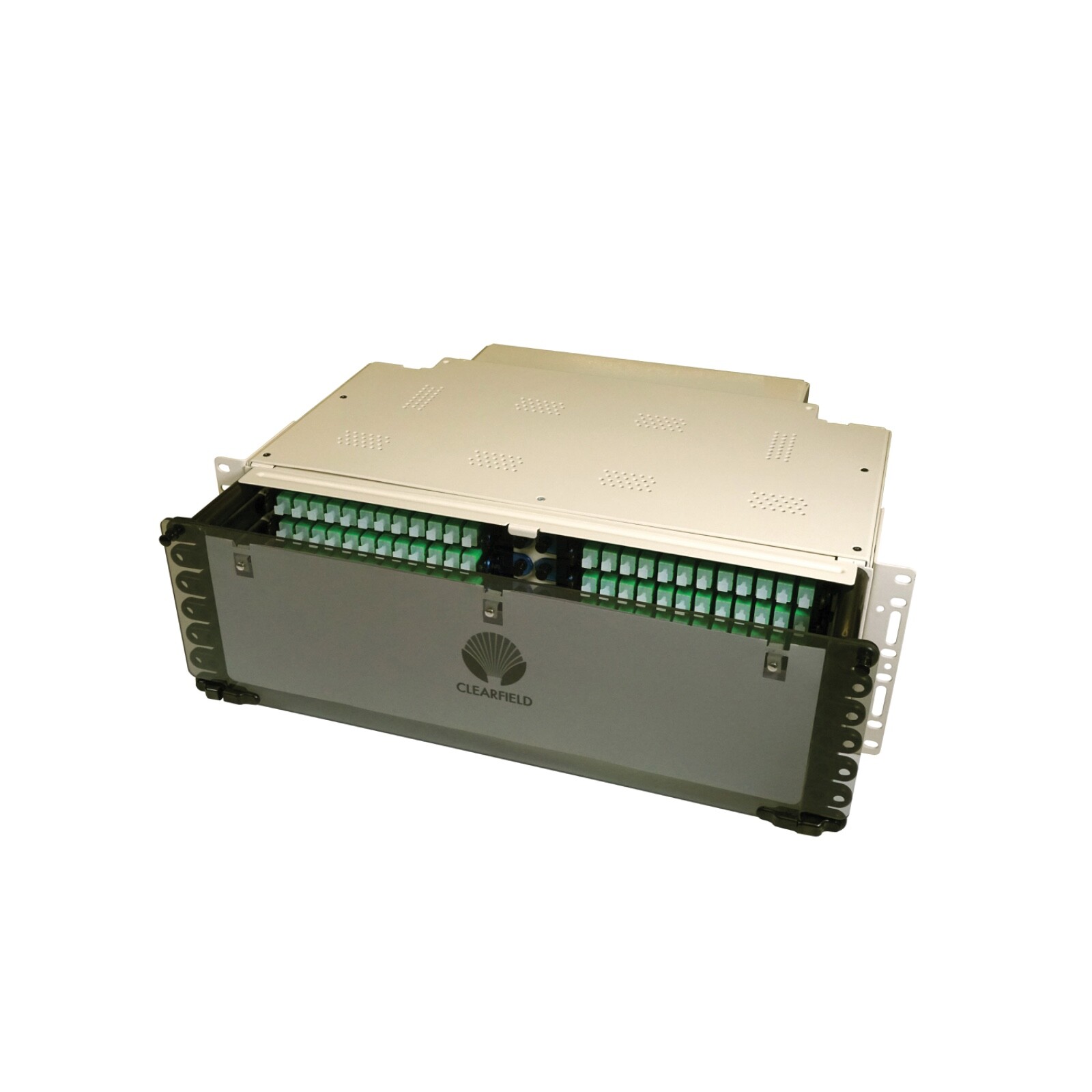

CLEARFIELD G-HBB-288-C2Z-AZZCLEARFIELD FxMP G-HBB-288-C2Z-AZZ Fiber Patch Panel, 288 -Port, SC/APC Front Connector, Aluminum/Steel
Includes 24 cartridges (full 288)
DESCRIPTIONDesigned to streamline, simplify and reduce the operational costs of deploying fiber, Clearfield's FieldSmart FxMP fiber patch panel delivers a universal deployment option, making it easier to order, train field staff and support the rapidly growing market for fiber services. This universal panel enables fiber deployments of 1RU (24 ports) up to 11 in (288 ports). Like all other FieldSmart products, the FxMP fiber patch panel utilizes the Clearview® cassette as its 12 port building block. It provides an interconnect or cross connect environment for up to 288 SC ports or 576 LC ports of high density fiber for inside plant environments and outside FDH deployments. The FxMP fiber patch panel is RUS listed and designed to comply with Telcordia GR-63, GR-1089, GR-449, GR-20 and GR-409.
CLEARFIELD Fiber Patch Panel, Model: FxMP, 288 Ports, SC/APC Front Connector, Aluminum/Steel, Almond, 11 in Height
SPECIFICATIONSColor : AlmondFront Connector : SC/APCHeight : 11 inMaterial : Aluminum/SteelModel : FxMPNumber of Ports : 288
FEATURESPanels are designed, tested and certified to Telcordia GR-63 and GR-1089 NEBS Level 3Fiber cable is certified to Telcordia GR-20 and GR-409Terminations designed, tested and certified to Telcordia GR-326Supports all industry standard single mode and multimode connectorsFront cover is easily removable and installation of cassettes is simple with no tools neededIndividual radius fingers provide organized and intuitively managed fiber jumpers and minimize pile-upSlide rails for cassettes provides a stable attachment utilizing the cassette T-rail and are incorporated into the rear protection of panelsPre-terminated OSP buffer tubes are protected by bend-limited tubing and have their slack stored inside panel to protect against environmental and human damageThe top metal protective cover slides out for top protection over the fiber cables and can sit in 3 positions, closed, open 3-1/4 in (82.55 mm) and open 4.77 in (121.16 mm)Front access to pre-terminated assemblies with removable adapter plates for testing, cleaning and maintenanceThe entire 12 fiber Clearview cassette is removable for hot swap changesFront and rear access to panelOn-frame or off-frame splicing configurations support cable constructions up to 144-fiberNew larger designation cards provide greater writing area for standard and high density panelsReversible mounting ears provide added flexibilityUsing the Clearview cassette, all fibers are deployed in increments of 12, allowing users to scale from 12 ports to full configuration without additional equipment
