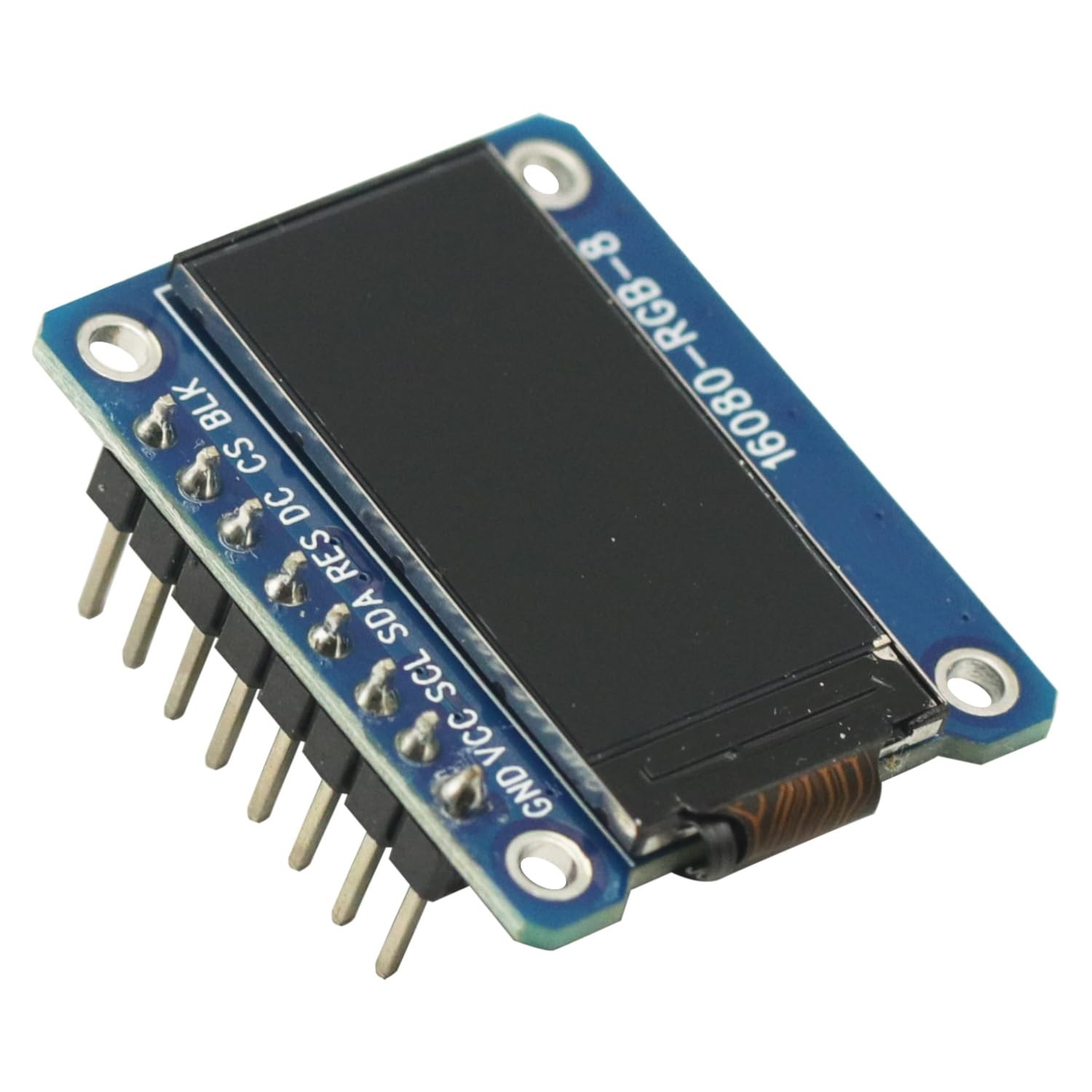

0.96 Inch IPS TFT LCD Display 80 x 160 ST7735 Full Color
Price: US $13.99
0.96 inch 80X160 IPS LCD Display Module Full Color TFT 65K ST7735 Driver LCD Screen 3.3V SPI Interface 0.96 inch 80X160 IPS LCD Display Module Full Color TFT 65K ST7735 Driver LCD Screen 3.3V SPI Interface Description
1.FeaturesSIZE 0.96inchDisplay Mode Normally black IPSDisplay Format Graphic 80RGB*160 Dot-matrixInput Data SPI interfaceDrive IC ST7735SDimensional outline 24(W)*30 (H)*2.8+/-0.1(T)mmResolution 80RGB*160 DotsLCD Active area 10.8 (W)*21.7 (H)Dot pitch 0.135(H) x 0.1356(V) mmViewing Direction All ViewOperating Temperature -20～70°C2.Pin Descriptions:PIN No Symbol Description1 GND Ground2 VCC Power 3.3V3 SCL Serial clock pin.4 SDA Serial data input5 RES LCM Reset pinThis pin is reset signal input. When the pin is low, initialization of the chip isexecuted. Keep this pin pull high during normal operation.6 DC Data/Command Control7 CS Chip Select8 BLK Backlight control pinPackage:1 pcs 0.96 inch 80X160 IPS LCD Display Module
Features
Display Mode Normally black IPS
lcd display module
Display Format Graphic 80 RGB*160 Dot-matrix
Operating Temperature -20～70°C
Product Details
Publisher: GODIYMODULES
Publication date: 0
Dimensions: 3 x 2.4 x 3 cm
