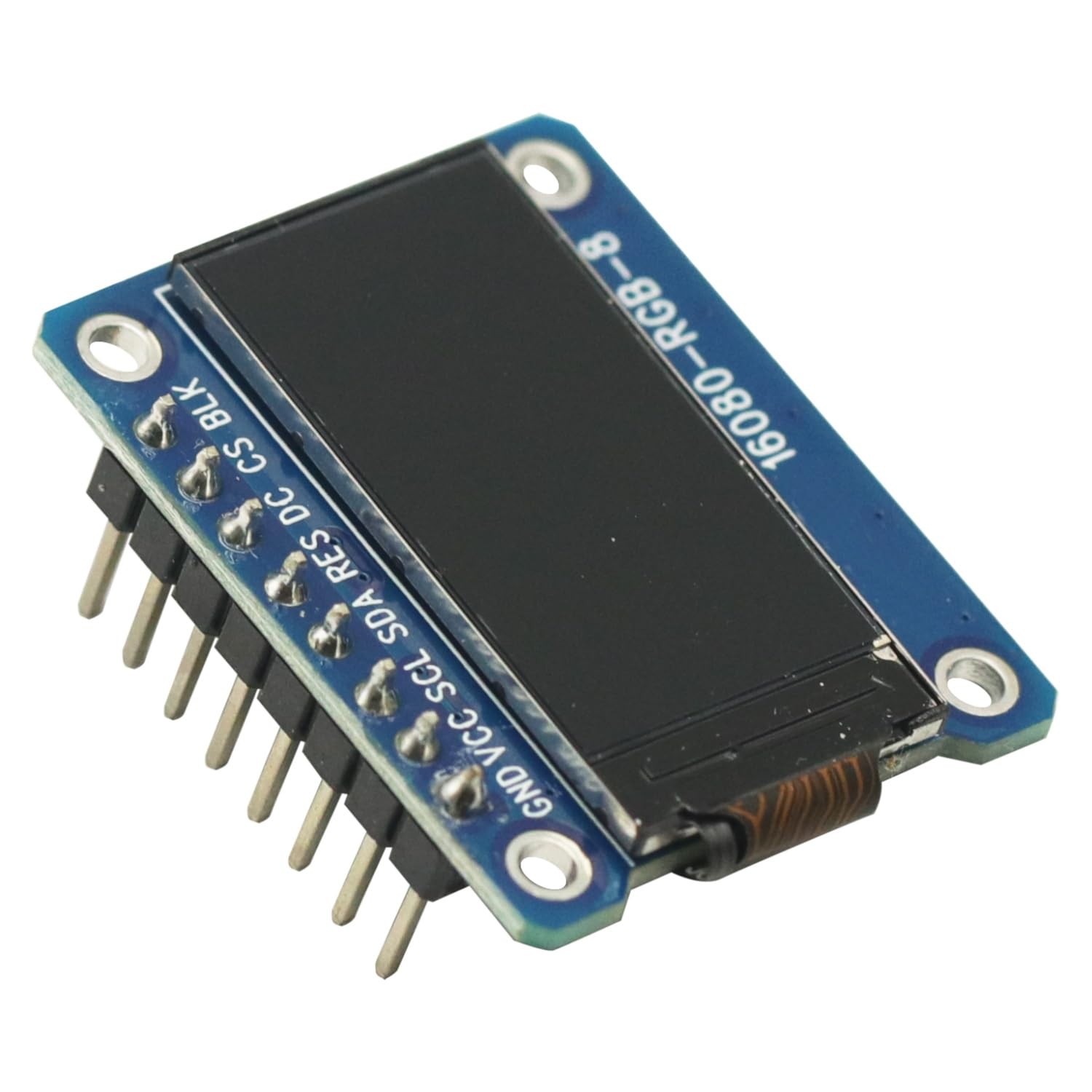

0.96 inch 80X160 IPS LCD Display Module Full Color TFT 65K ST7735 Driver LCD Scr
Price: US $10.46
1.Features SIZE 0.96inch Display Mode Normally black IPS Display Format Graphic 80RGB*160 Dot-matrix Input Data SPI interface Drive IC ST7735S Dimensional outline 24(W)*30 (H)*2.8 /-0.1(T)mm Resolution 80RGB*160 Dots LCD Active area 10.8 (W)*21.7 (H) Dot pitch 0.135(H) x 0.1356(V) mm Viewing Direction All View Operating Temperature -20 70 C 2.Pin Descriptions: PIN No Symbol Description 1 GND Ground 2 VCC Power 3.3V 3 SCL Serial clock pin.4 SDA Serial data input 5 RES LCM Reset pin This pin is reset signal input.When the pin is low, initialization of the chip is executed.Keep this pin pull high during normal operation.6 DC Data/Command Control 7 CS Chip Select 8 BLK Backlight control pin Package: 1 pcs 0.96 inch 80X160 IPS LCD Display Module
