Overview

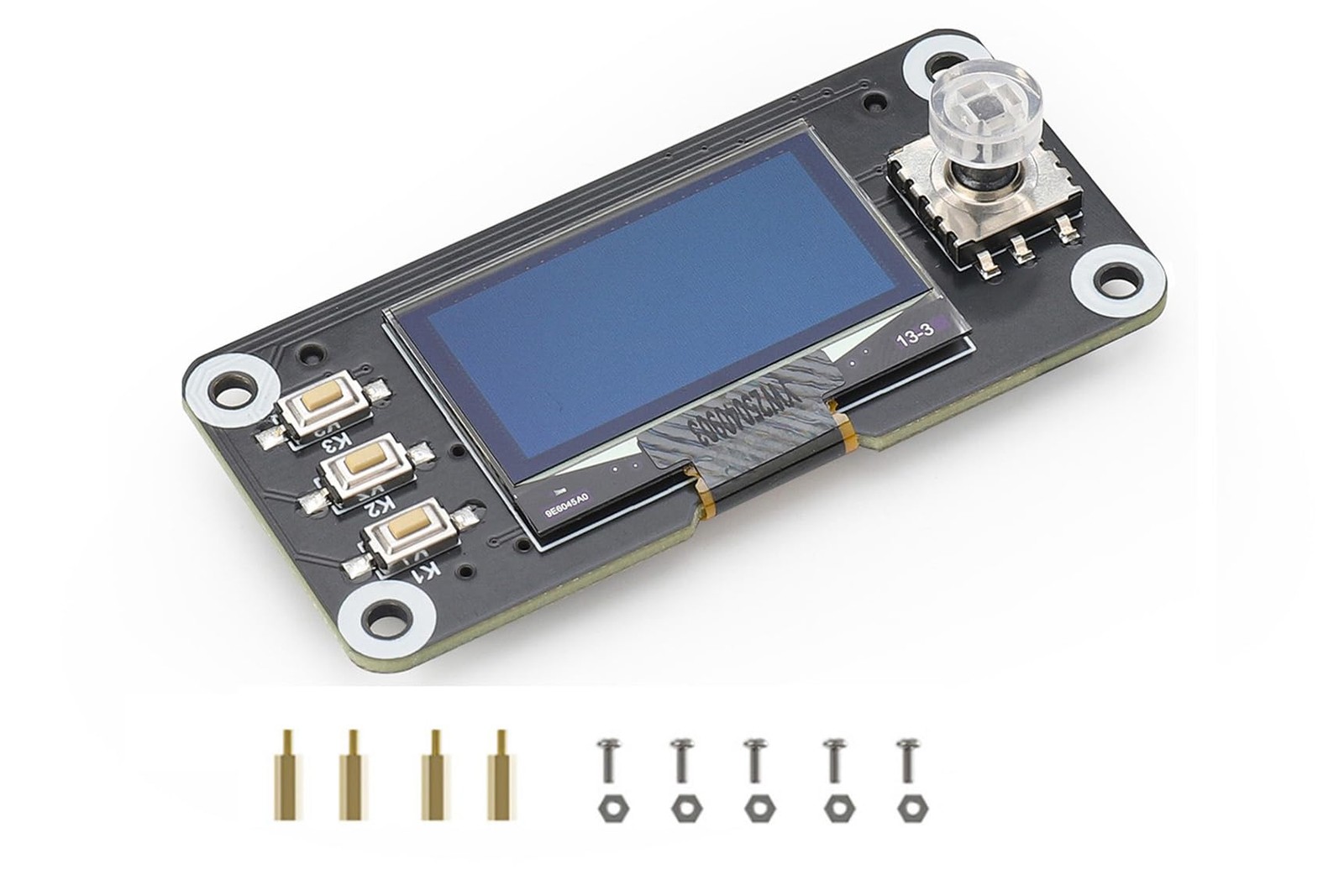

The 1.3inch OLED Display HAT (A) is a versatile and compact display module designed for Raspberry Pi and other microcontroller platforms. It integrates a 128×64 SH1106 OLED screen,
offering clear and high-contrast visual output for text, data visualization, and simple graphics in a space-efficient design.

This display HAT comes with a 5-way joystick and three customizable buttons, providing intuitive physical interaction for users. Whether you are designing an on-screen menu, a portable
control device, or an IoT dashboard, these onboard controls make user input simple and reliable.

With its dual communication interface, the module supports both SPI and I2C protocols. You can switch between modes using the onboard slide switches — no soldering or complex
configuration required. This flexibility ensures compatibility with a wide range of development boards and systems.

The board features a standard 40PIN GPIO header layout, designed to fit Rasp-berry Pi Zero / Pi 3 / Pi 4 / Pi 5 series seamlessly. Simply stack it onto your Pi for immediate use — no driver
installation needed when using supported libraries.

Thanks to its SH1106 controller, the display operates smoothly and efficiently, consuming minimal power while providing sharp visibility even in low-light conditions. It’s ideal for building:

Compact IoT interfaces and dashboards
Interactive menu systems
Portable monitors and debug displays
Educational and prototyping projects

Key Specifications:

Display size: 1.3 inch OLED (128×64 pixels)
Driver IC: SH1106
Interface: SPI / I²C (selectable)
Onboard controls: 5-way joystick + 3 programmable buttons
Operating voltage: 3.3V
Board size: 65mm × 30mm

The 1.3inch OLED HAT (A) is an essential display solution for makers and engineers who need a compact visual and input interface. It’s plug-and-play, reliable, and ready to expand your
project possibilities.


Package Content

① 1.3inch OLED HAT(A) x 1
② M2.5 ×10+4mm brass standoffs × 4
③M2.5 screws × 5
④M2.5 nuts × 5

Key Features

• ✅ High-Resolution 1.3inch OLED Display — Features a 128×64 SH1106 controller for bright, crisp, and clear text or graphics. Perfect OLED display HAT for visual interfaces and embedded information panels.
• ✅ Integrated Joystick and Control Buttons — Includes a 5-way joystick and three programmable buttons, ideal for building interactive menus, navigation systems, or compact control panels.
• ✅ Dual Communication Interface: SPI & I2C — Equipped with hardware switches for easy SPI/I2C mode selection, making it compatible with a variety of development platforms.
• ✅ Plug-and-Play GPIO HAT Design for Raspberry Pi — Fully compatible with Raspberry Pi 40PIN GPIO, easy to stack, install, and integrate in your Rasp-berry Pi projects without additional wiring.
• ✅ Compact and Developer-Friendly — Small form factor (65×30mm), 3.3V operating voltage, stable SH1106 driver, and open-source examples for easy programming and display control.
