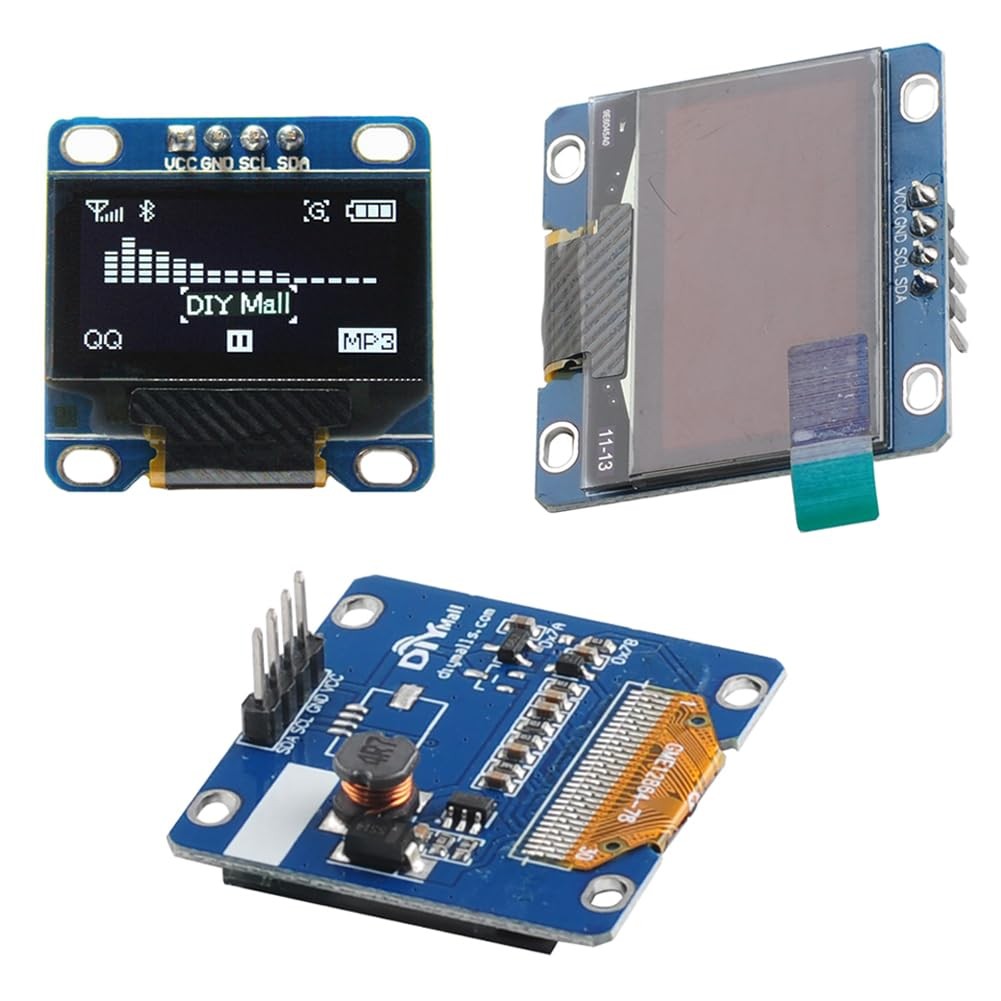

Description:
Size: 1.3 inch
Resolution: 128X64
Color: White
Viewing angle: greater than 160 degrees
Low power consumption: 0.04W during normal operation
wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees
Volume: 27 * 27 * 4.1mm
Driver IC: - 1 1 0 6
No font: The software takes word modulo
Backlight: OLED light, no backlight Feature:
1.External boost,high brightness,more uniform color, more stable
2.Dual integral power on the automatic reset circuit,failure rate is much lower
3.Better filtering and noise reduction circuit
4.The pack painted with thress anti-paint and long anti-oxidation to extend product life Interface:
VCC: 3.3-5V
GND: Ground
SCL: Clock
SDA: Data Package :
3 x 1.3 OLED Moudle with cables1.3 OLED use 11 06 chipset, not 13 06, so you need to install U8g2 library. You will have artefacts issues with your display if use 13 06 library.
The actual default address of OLED is 0x3C, not the 0x78 or 0x7A printed on the back. You must properly define this address in any sketch, or you will not data sent to the display and may mistake it for being DOA.
You need to change it's address if want to use 2 oled on the same u n o. On the back you will see a tiny section, a resistor (303 value which is 10k ohm) and 3 solder pads. To change it's address, you must lift this tiny SMD resistor and move it to the other pad with the right tools.
There is a removable transparent film on each OLED glass surface for scratch resistant protection until use.
Comes with 3x 1.3 oled display with 4 pin headers already soldered on, so no soldering required.
