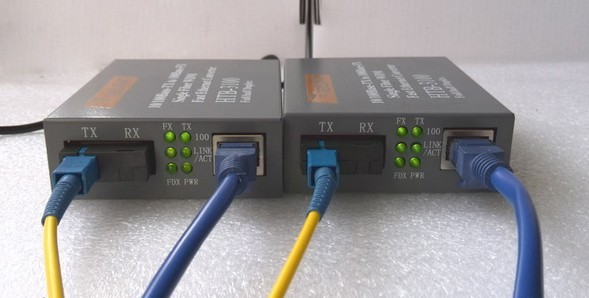

10/100Mbps Ethernet to 100Mbpsfiber optic converter,25KM transmission,1Pair(A+B)/lot
Premium Quality & High performance & Big saving!
Don't Settle for Low Cost, Generic, Poor Performance, No Quality fiber converter!!!
Overview:
offerirectional 10/100M adaptive Ethernet fiber optic transceivers , using the latest U.S. KENDIN chip, high -quality single-fiber offerirectional optical transceiver module ( brand new manufacturers ) , stable performance and excellent quality. For telecommunications , broadcasting, broadband fiber optic network data traffic and the need to improve performance, high-reliability network environment.
Feature:
1. Brand-New, High Quality, 5 years quality guarantee!
2. An RJ45 ports and a single-fiber SC optical port , to achieve optical signal conversion between 10/100base TX twisted pair
(Ethernet )and 100base FX (fiber optic) ;
3. Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission
mode to improve the quantity doubled ;
4. Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards ;
5. Has 10M/100M adaptive capacity ;
6. Ethernetinterface can adaptively direct line / crossover cable connection ;
7. Support full / half duplex mode ;
8. Support IEEE802.3X duplex flow control and half-duplex backpressure flow control ;
9. Supports broadcast storm prevention function ;
10. 1916 Byte support large data frame ( optional ) ;
11. Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction ;
12. UTP up to 100 meters ; longest 100 km single-mode fiber ;
13. There are six LED indicators : Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col; easy to monitor the working
status of the transceiver and determine the cause of the fault ;
14. There are external , internal power supply of two types : AC100 ~ 265V / DC5V switching power supply ;
15. Working temperature : 0 ~ 50 degree;
16. Storage temperature : - 40 ~ 70 degree ;
17. Transceiver Dimensions: External power 70 × 26 × 93mm; built-in 120 × 30 × 140mm.
18. outer Dimensions: 95mm × 71mm × 25mm
19. Package: ESD package,Carton
For the environment:
For telecommunications , broadcasting, broadband fiber optic network data traffic and the need to improve performance, high-reliability network environment.
Fiber optic parameters:
Model
Fiber optic type
Connector type
Transmit Wave length
Transmit power
Receiver sensitivity
Transmission distance
Allowable loss
HTB-3100A/B-25KM
Single mode
SC
1310/1550nm
-13~-6dBm
-30dBm
20km
17dBm
HTB-3100A/B-40KM
Single mode
SC
1310/1550nm
-6~0dBm
-35dBm
40km
29dBm
HTB-3100A/B-60KM
Single mode
SC
1310/1550nm
-6~0dBm
-36dBm
60km
30dBm
HTB-3100A/B-80KM
Single mode
SC
1310/1550nm
-3~3dBm
-37dBm
80km
34dBm
HTB-3100A/B serial
Product description
HTB-3100A/B
-XX
10/100M adaptive Ethernet single-mode fiber transceiver offerirectional must be used in pairs, ie a WS01 WS02 must be paired with a connection, also when orders for units. WS01 emission wavelength 1310nm, receive light wavelength 1550nm; WS02 emission wavelength 1550nm, receive light wavelength 1310nm. The maximum distance optical fiber 20, 40, 60, 80, 100KM and other models, models of the XX distance number.
Package Include:
1 pair A & B
2x power DC5V
1 x User manual
