Ethernet over 2-wire Extender 10/100M UTP to Twisted Pair Converter 2KM
Product Description
NF-1802is the high-performance Ethernet-over-twisted pairextender that converts between twisted pair (UTP) and coaxial cable for every kind of IP Ethernet application. It offers the absolutely fastest data transmission speed over existing coaxial cable without the need of rewiring. On the UTP side, the NF-1802uses a modular EIA / TIA 568 RJ-45 connector that supports CAT-5/5e or above wiring with the distance up to 100 meters (328 feet). On the coaxial cable side, the NF-1802utilizes a twisted-pairconnector that supports 50ohm or 75ohm coaxial cable with the distance up to 2km. It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the coaxial cable for any type of IP network device such as IP camera, wireless access point, NVR and digital signage.
Key Feature
Interface
10/100Base-TX UTP port (Auto-adaptation ) ×1
twisted-pair×1
Transmission medium
Twisted paircable
Modulation technique
OFDM
LED Indicators
Power: Light on: Normal operation
Coax: Light on: Video signal is normal
UTP, Act/Link: Light on: connection is correct
Light Blink: normal communication
M(master)/S(slave) : Light on: Under Slave
Light off: Under Master
Transmission band
2MHz–28MHz
Protocol standard
IEEE 802.3, IEEE 802.3u
Dimensions (W x D x H)
95*70*25mm
Power supply
DC 12V 1A
Security technology
128-DES Data encryption and Key management
Physical layer transmission rate
200Mbps
Transmission distance
2KM
Support operating system
Windows 98/ME/NT/2003/7, Windows XP Home/Pro, Mac OSX , Linux
Operating voltage range
AC 100V-240V 60/50Hz
Operating environment
Operating temperature; 0°C~ +50°C
Storage temperature: -20°C~ +70°C
Operating humidity: 5%-90%

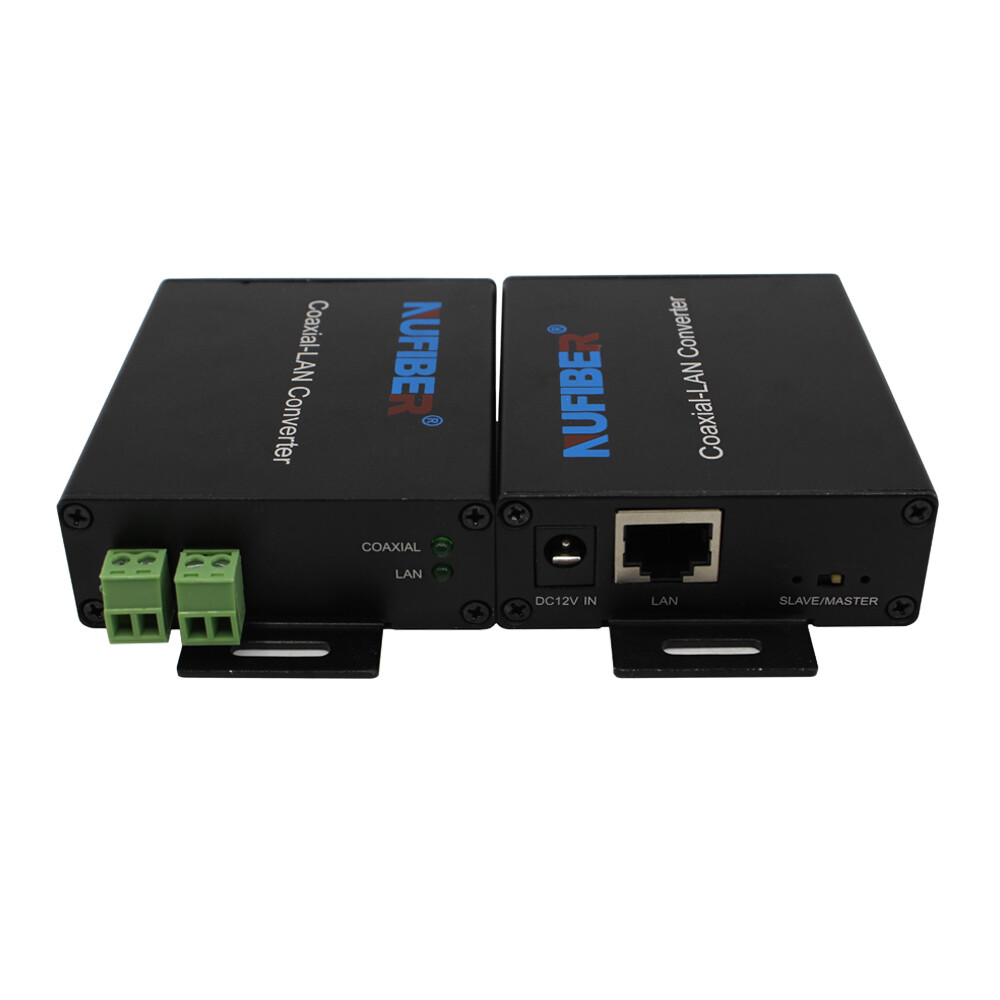

Product Show
