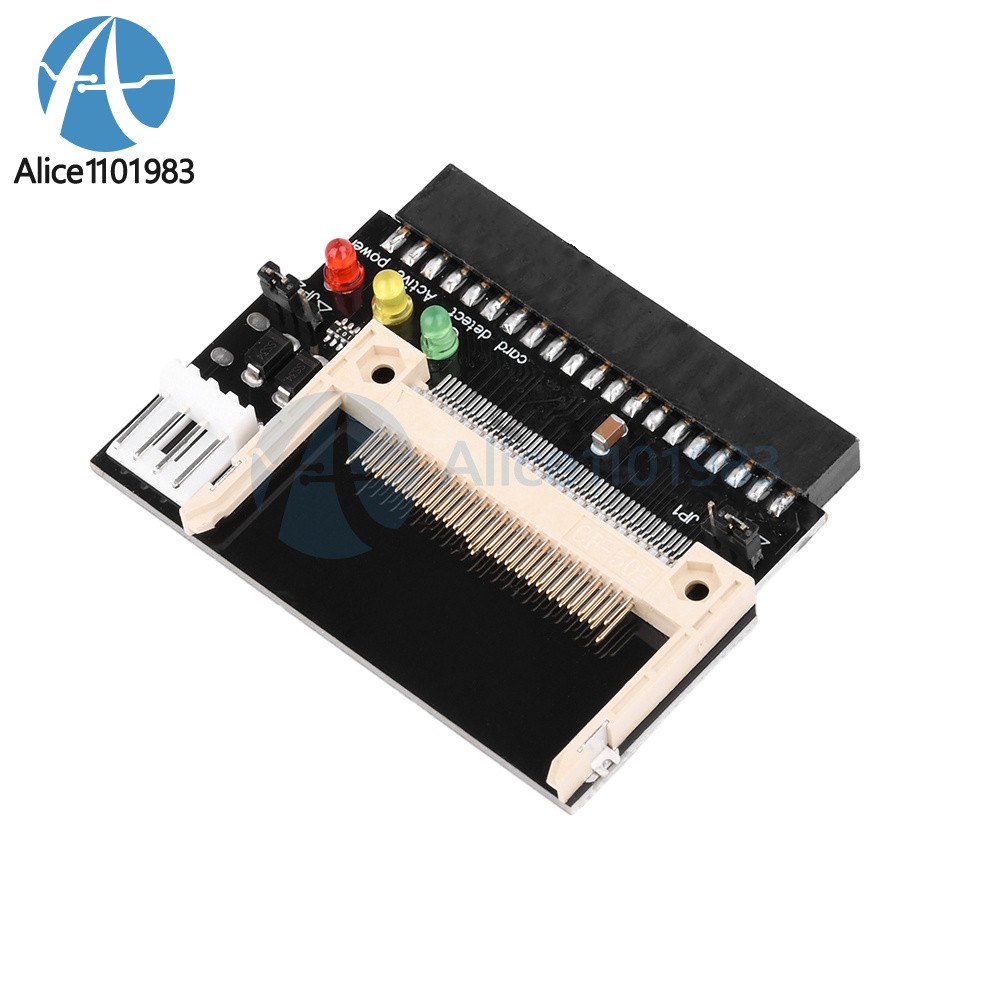

10/20x Compact Flash CF to 3.5 Female 40-Pin IDE Bootable Adapter Converter CardDescriptions:100% brand new and high quality
Bootable from CF
Standard IDE interface, true-IDE mode, and support DMA-33 transfer mode
Diskless network clients
Any other device requiring rugged solid-state storage
On-board LED indicators for power-on and compact flash access
Voltage selection for +3.3V or +5V compact flash
Master or slave mode selection
Power input: +5V, floppy disk drive power connector
Fully compatible with Compact Flash Type I, Type II, and Micro-drive 40-way (2.54mm) standard
This adapter does NOT support hot insertion of CF cards
Support CF-︱and CF-‖, also support IBM micro-driver with CF-‖interface
System Requirement: PC or Mac with one IDE connector ; MS Windows, Mac OS, Linux operating system
Protect the HDD; connect with portable instrument with X86 or RISC core or data movable tool
CF: double side
IDE: 40 pin female
Color: shown as the picture
Material: plastic and electronics

Specifications:
Color: Black
Item size: 60*45*6mm
Net weight: 14g
Package weight: 23gPackage included:1/2/5/10Pieces Compact Flash CF to 3.5 Female 40 Pin IDE Bootable Adapter Converter card
