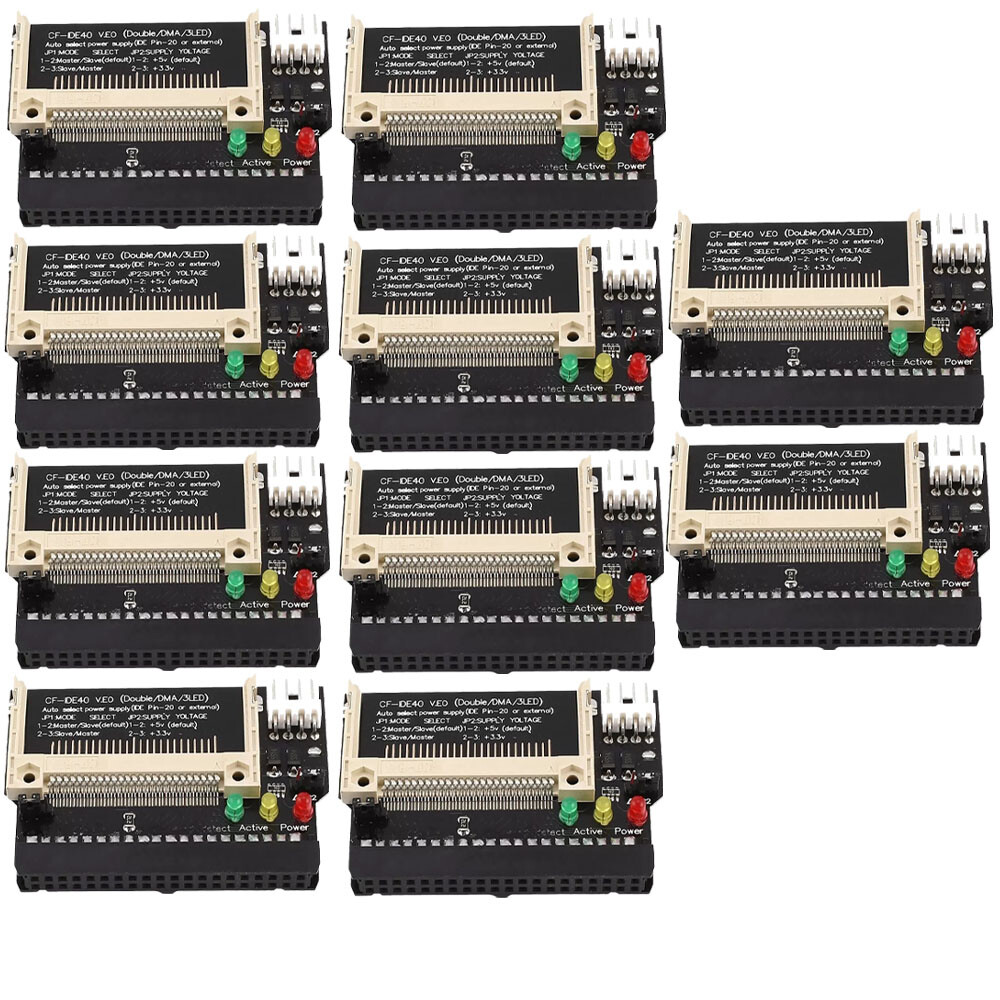

10/20Pcs Compact Flash CF card To 3.5 Female 40 Pin CF to IDE Adapters


Features:

Boo-table from CF.

Standard IDE interface, true-IDE mode, and support DMA-33 transfer mode.

Disk-less network clients.

Any other device requiring rugged solid-state storage.

On-board LED indicators for power-on and compact flash access.

Voltage selection for +3.3V or +5V compact flash.

Master or slave mode selection.

Power input: +5V, floppy disk drive power connector.

Fully compatible with Compact Flash Type I, Type II, and Micro-drive 40-way. (2.54mm) standard.Description:

This adapter does NOT support hot insertion of CF cards.

Support CF-I and CF-II, also support micro-driver with CF-II interface.

System Requirement: PC or for Mac with one IDE connector ; MS for Windows, for Mac OS, for Linux operating system.

Protect the HDD, connect with portable instrument with X86 or RISC core or data movable tool.




Specifications:

Type: IDE Cables

Color: Black

Item Size: 60mm*45mm*6mm

Material: Plastic And Electronics

CF: Double Side

IDE: 40 Pin Female

Qty:10/20pcs




Package included:
10/20x CF to 40Pin IDE Adapters
